RX40NC6S-TS Mitsubishi MELSEC iQ-R Series Input

MPN: RX40NC6S-TS · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – I/O
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RX40NC6S-TS be shipped?

RX40NC6S-TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RX40NC6S-TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RX40NC6S-TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RX40NC6S-TS, subject to availability and destination.

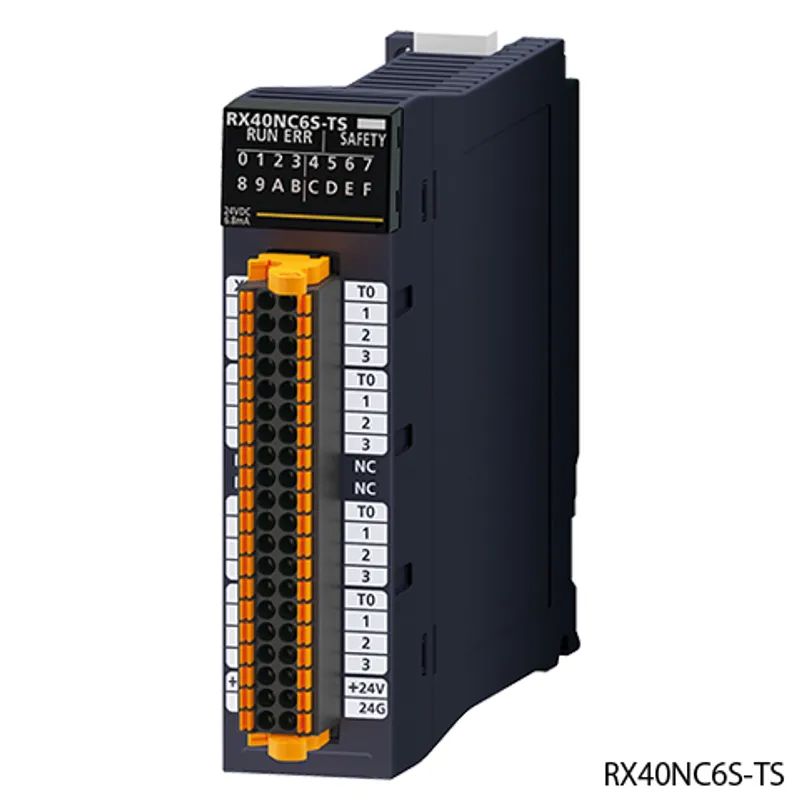

The Mitsubishi Electric RX40NC6S-TS is a input in the MELSEC iQ-R Series. Single wiring: 16 points, double wiring: 8 points, 24 V DC, Input response time: 1...70 ms, negative common, spring-clamp terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Input
Type	DC input (negative common)
Subtype	Safety functions
Outline	Single wiring: 16 points, double wiring: 8 points, 24 V DC, Input response time: 1...70 ms, negative common, spring-clamp terminal block

Input specifications

Input type	DC input (negative common type)
Number of input points	16 points (single wiring) 8 points (double wiring)
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current	Approx. 6.8 mA TYP. (at 24 V DC)
ON voltage/ON current	11 V or more/4 mA or more
OFF voltage/OFF current	5 V or less/1.5 mA or less
Input resistance	Approx. 3.2 kΩ
Input common terminal arrangement	16 points/common
Input circuit response time: OFF to ON	0.4 ms or less (at 24 V DC)
Input circuit response time: ON to OFF	0.4 ms or less (at 24 V DC)
Input response time	1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 50 ms, 70 ms
Input reflection processing time	Input circuit response time + input response time
External power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply: Current	140 mA (at 24 V DC)
External power supply: Protection function	External power supply overvoltage protection function

Common specifications

Safety cycle time	2 ms
Dielectric withstand voltage	510 V AC for 1 minute
Insulation resistance	10 MΩ or higher by insulation resistance tester
Noise immunity	Noise voltage 500 Vp-p, noise width 1 µs, noise frequency 25...60 Hz (noise simulator condition)
Protection degree	IP2X
External interface	40 point 2-piece spring clamp terminal block
Number of occupied I/O points	32 points (I/O assignment: Input 16 points)
Internal current consumption (5 V DC)	260 mA (TYP. all points ON)
Safety element	Type B, HFT = 1, SC3
External dimensions: Height	106 mm
External dimensions: Width	27.8 mm
External dimensions: Depth	129 mm
Weight	0.21 kg

Specifications

Operating ambient temperature	0...55 ˚C (When an extended temperature range base unit is not used) 0...60 ˚C (When an extended temperature range base unit is used)
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in X, Y, and Z bidirections)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R I/O Module (With Safety Functions) User's Manual (SH-082639ENG-A)	PDF · 5.44MB
Before Using the Product (BCN-P5999-1679E-A)	PDF · 0.09MB
Compliance with the Machinery Directive (2006/42/EC) and UL Standards (BCN-P5999-1687E-B)	PDF · 0.90MB
List of Modules That Can Be Used Together with the Safety-Related Modules (BCN-P5999-1862)	PDF · 0.08MB
Safety Guidelines (IB-0800525)	PDF · 11.79MB
