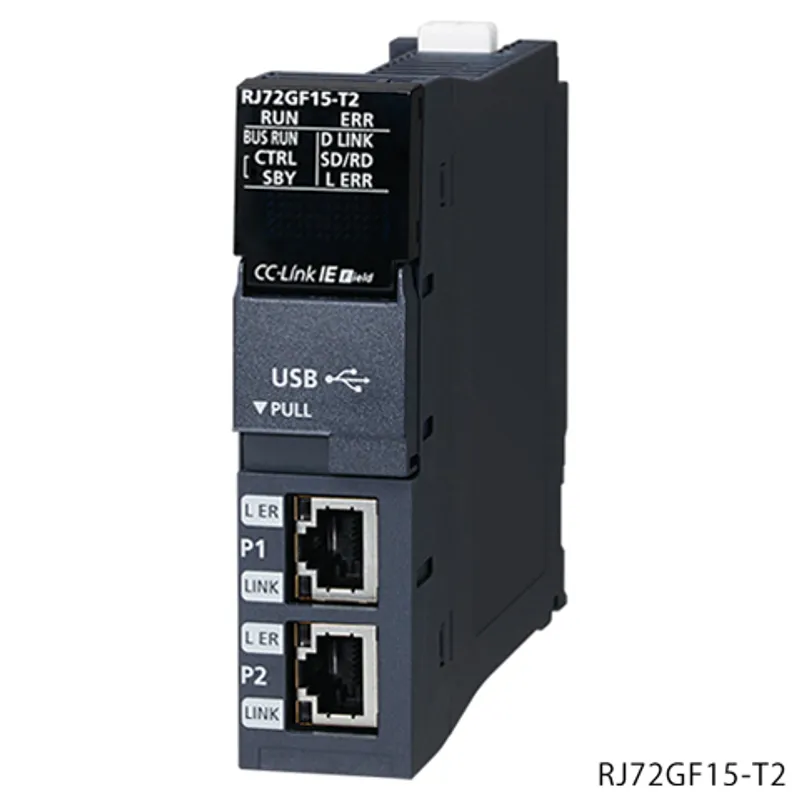

RJ72GF15-T2 Mitsubishi MELSEC iQ-R Series CC-Link IE Field

MPN: RJ72GF15-T2 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – Information/network
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can RJ72GF15-T2 be shipped?

RJ72GF15-T2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RJ72GF15-T2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RJ72GF15-T2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RJ72GF15-T2, subject to availability and destination.

The Mitsubishi Electric RJ72GF15-T2 is a CC-Link IE Field in the MELSEC iQ-R Series. CC-Link IE Field Network remote head module. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	CC-Link IE Field
Outline	CC-Link IE Field Network remote head module

Specifications

Maximum number of link points per station: RX	2048 points, 256 bytes
Maximum number of link points per station: RY	2048 points, 256 bytes
Maximum number of link points per station: RWr	1024 points, 2K bytes
Maximum number of link points per station: RWw	1024 points, 2K bytes
Station type	Intelligent device station
Station number	1...120
Network number	1...239
Communication speed	1 Gbps
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
Maximum station-to-station distance	Up to 100 m (compliant with ANSI/TIA/EIA-568-B (category 5e))
Number of cascade connections	20 levels maximum
Number of I/O points: Input (X)	4096 points (Number of points accessible to the actual module)
Number of I/O points: Output (Y)	4096 points (Number of points accessible to the actual module)
Number of user device points: Input (X)	12288 points (Number of points can be used in the program. Assign X0 to RX0.)
Number of user device points: Output (Y)	12288 points (Number of points can be used in the program. Assign RY0 to Y0.)
Number of user device points: Link register (W)	8192 points (Assign 1024 points (W0...3FF) from RWw0. Assign 1024 points (W1000...13FF) from RWr0.)
Number of user device points: Link special relay (SB)	8192 points (SB0000 to SB0FFF are used by the system. SB1000 to SB1FFF can be used by the user.)
Number of user device points: Link special register (SW)	8192 points (SW0000 to SW0FFF are used by the system. SW1000 to SW1FFF can be used by the user.)
Number of system device points: Special relay (SM)	4096 points (fixed)
Number of system device points: Special register (SD)	4096 points (fixed)
Number of module access device points: Intelligent function module device (U☐\G☐)	268435456 points maximum
Number of refresh data register points: Refresh data register (RD)	12288 points
Label capacity	2048 words
Memory capacity: Device/label memory	256K bytes
Memory capacity: Data memory	2049K bytes
Maximum number of storable files: Device/label memory (file storage area)	1
Maximum number of storable files: Data memory	256
Allowable momentary power failure time	The time differs depending on the power supply module used.
Internal current consumption (5 V DC)	0.75 A
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	110 mm
Weight	0.20 kg

Specifications

Operating ambient temperature	0...55 ˚C (When an extended temperature range base unit is not used) 0...60 ˚C (When an extended temperature range base unit is used)
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R CC-Link IE Field Network Remote Head Module User's Manual (Startup) (SH-081614ENG-I)	PDF · 3.01MB
MELSEC iQ-R CC-Link IE Field Network Remote Head Module User's Manual (Application) (SH-081616ENG-L)	PDF · 8.13MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
Before Using the Product (BCN-P5999-0600E-C)	PDF · 0.11MB
MELSEC iQ-R Inter-Module Synchronization Function Reference Manual (SH-081401ENG-U)	PDF · 8.47MB
Safety Guidelines (IB-0800525E-AC)	PDF · 11.79MB
