R60AD4 Mitsubishi MELSEC iQ-R Series Analog input

MPN: R60AD4 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – Analog
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R60AD4 be shipped?

R60AD4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R60AD4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R60AD4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R60AD4, subject to availability and destination.

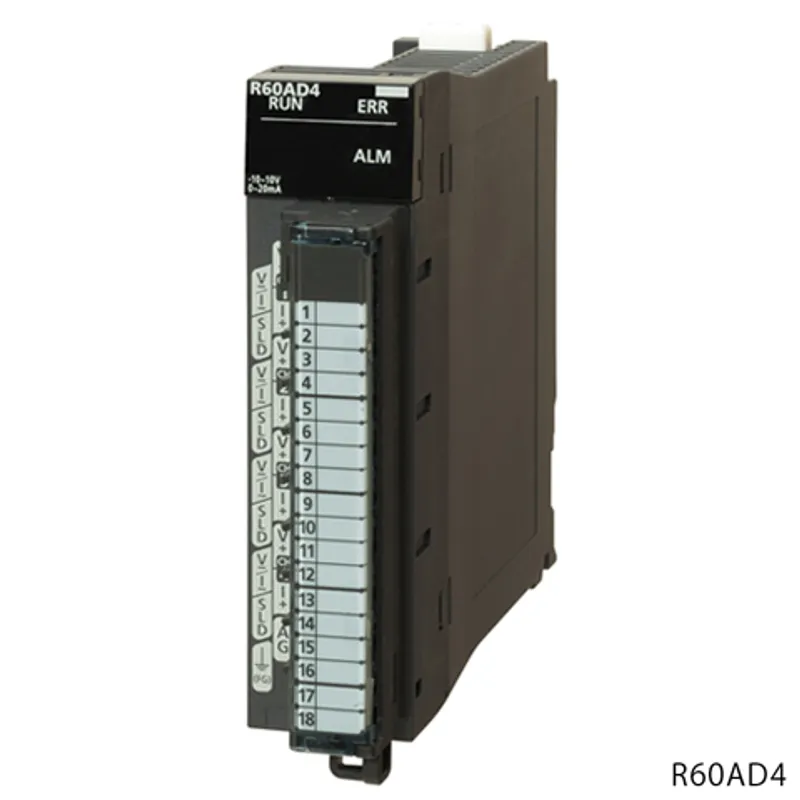

The Mitsubishi Electric R60AD4 is a analog input in the MELSEC iQ-R Series. 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...32000, -32000...32000, conversion speed: 80 μs/channel, 18-point terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	Analog input
Type	Voltage/current input
Outline	4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...32000, -32000...32000, conversion speed: 80 μs/channel, 18-point terminal block

Input specifications

Number of analog input points	4 points (4 channels)
Analog input: Voltage	-10...10 V DC (input resistance 1 MΩ)
Analog input: Current	0...20 mA DC (input resistance 250 Ω)
Digital output	16-bit signed binary value (-32768...32767)
I/O characteristics, resolution: Input range	Digital output value (resolution)
I/O characteristics, resolution: Voltage input: 0...10 V	0...32000 (312.5 µV)
I/O characteristics, resolution: Voltage input: 0...5 V	0...32000 (156.3 µV)
I/O characteristics, resolution: Voltage input: 1...5 V	0...32000 (125.0 µV)
I/O characteristics, resolution: Voltage input: 1...5 V (extended mode)	-8000...32000 (125.0 µV)
I/O characteristics, resolution: Voltage input: -10...10 V	-32000...32000 (312.5 µV)
I/O characteristics, resolution: Voltage input: User range setting	-32000...32000 (47.7 µV)
I/O characteristics, resolution: Current input: 0...20 mA	0...32000 (625.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA	0...32000 (500.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)	-8000...32000 (500.0 nA)
I/O characteristics, resolution: Current input: User range setting	-32000...32000 (190.7 nA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ﾟC	Within ±0.1 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ﾟC	Within ±0.3 %
A/D conversion speed	80 µs/channel
Absolute maximum input: Voltage	±15 V
Absolute maximum input: Current	±30 mA

Common specifications

Isolation method	Between I/O terminals and programmable controller power supply: Photocoupler Between input channels: Non-isolation
Dielectric withstand voltage	Between I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute
Insulation resistance	Between I/O terminals and programmable controller power supply: 500 V DC 10 MΩ or higher
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)	0.22 A
External dimensions: Height	106 mm (base unit mounting side: 98 mm)
External dimensions: Width	27.8 mm
External dimensions: Depth	131 mm
Weight	0.17 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R Analog-Digital Converter Module User's Manual (Startup) (SH-081232ENG-E)	PDF · 1.49MB
MELSEC iQ-R Analog-Digital Converter Module User's Manual (Application) (SH-081233ENG-G)	PDF · 3.52MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
MELSEC iQ-R Analog-Digital Converter Module/Digital-Analog Converter Module Function Block Reference (BCN-P5999-0375-J)	PDF · 1.51MB
Before Using the Product (BCN-P5999-0159E-C)	PDF · 0.15MB
Safety Guidelines (IB-0800525E-AC)	PDF · 11.79MB
