What is the Mitsubishi Electric R60AD16-G?

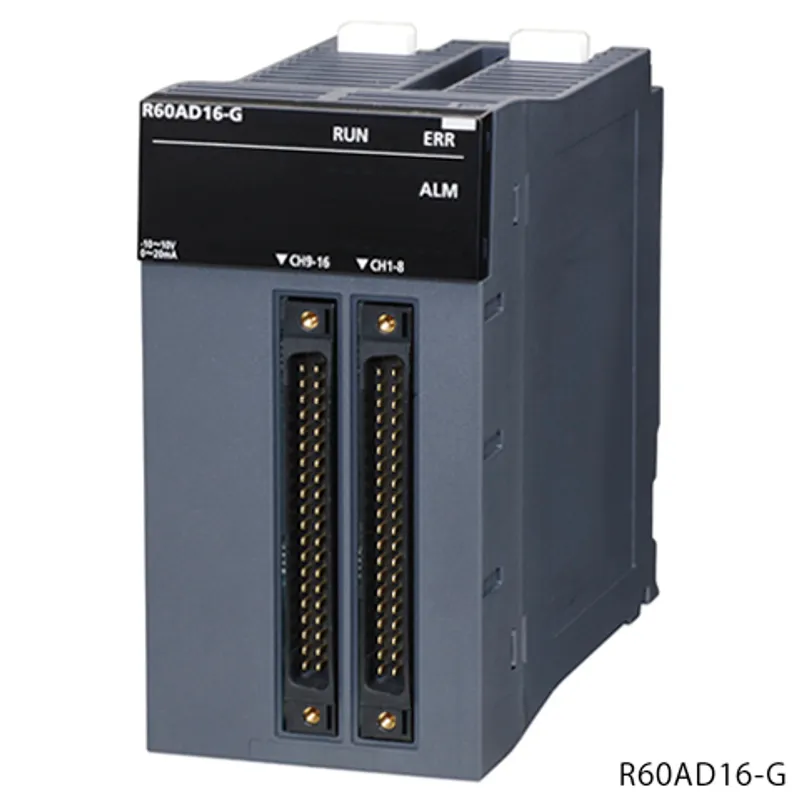

The Mitsubishi Electric R60AD16-G is a analog input in the MELSEC iQ-R Series. 16 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): -32000...32000, 0...32000, conversion speed: 10 ms/channel, 40-pin connector x 2, channel isolated. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryAnalog input
TypeVoltage/current input
SubtypeChannel isolated
Outline16 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): -32000...32000, 0...32000, conversion speed: 10 ms/channel, 40-pin connector x 2, channel isolated

Input specifications

Number of analog input points16 points (16 channels)
Analog input: Voltage-10...+10 V DC (input resistance 1 MΩ or more)
Analog input: Current0...20 mA DC (input resistance 250 Ω)
Digital output16-bit signed binary value (-32768...32767)
I/O characteristics, resolution: Input rangeDigital output value (resolution)
I/O characteristics, resolution: Voltage input: 0...10 V0...32000 (312.5 µV)
I/O characteristics, resolution: Voltage input: 0...5 V0...32000 (156.3 µV)
I/O characteristics, resolution: Voltage input: 1...5 V0...32000 (125.0 µV)
I/O characteristics, resolution: Voltage input: 1...5 V (extended mode)-8000...32767 (125.0 µV)
I/O characteristics, resolution: Voltage input: -10...10 V-32000...32000 (312.5 µV)
I/O characteristics, resolution: Voltage input: User range setting-32000...32000 (29.2 µV)
I/O characteristics, resolution: Current input: 0...20 mA0...32000 (625.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA0...32000 (500.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)-8000...32767 (500.0 nA)
I/O characteristics, resolution: Current input: User range setting-32000...32000 (115.5 nA)
Accuracy (accuracy relative to maximum value of the digital output value): Reference accuracyWithin ±0.1 %
Accuracy (accuracy relative to maximum value of the digital output value): Temperature coefficient±35 ppm/˚C (0.0035 %/˚C)
Common mode characteristicCommon mode voltage between input and common ground (input voltage 0 V): 500 V AC Common mode voltage rejection ratio (VCM
A/D conversion speed10 ms/channel
Response time20 ms
Absolute maximum input: Voltage±15 V
Absolute maximum input: Current±30 mA

Common specifications

Isolation methodBetween input terminals and programmable controller power supply, between analog input channels: Transformer
Dielectric withstand voltageBetween input terminals and programmable controller power supply: 500 V AC rms for 1 minute Between analog input channels: 1000 V AC rms for 1 minute
Insulation resistanceBetween input terminals and programmable controller power supply, between analog input channels: 500 V DC, 10 MΩ or higher
External interface40-pin connector × 2
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points32 points, 2 slots (I/O assignment: Empty 16 points + Intelligent 16 points)
Internal current consumption (5 V DC)0.52 A
External dimensions: Height106 mm (base unit mounting side: 98 mm)
External dimensions: Width56 mm
External dimensions: Depth110 mm
Weight0.26 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.
