QS0J65BTB2-12DT-K Mitsubishi MELSEC-QS/WS Safety Safety network

MPN: QS0J65BTB2-12DT-K · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QS0J65BTB2-12DT-K (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-QS/WS Safety – Safety programmable controller
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the QS0J65BTB2-12DT-K now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QS0J65BTB2-12DT-K, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QS0J65BTB2-12DT-K be shipped?

QS0J65BTB2-12DT-K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QS0J65BTB2-12DT-K in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QS0J65BTB2-12DT-K and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QS0J65BTB2-12DT-K, subject to availability and destination.

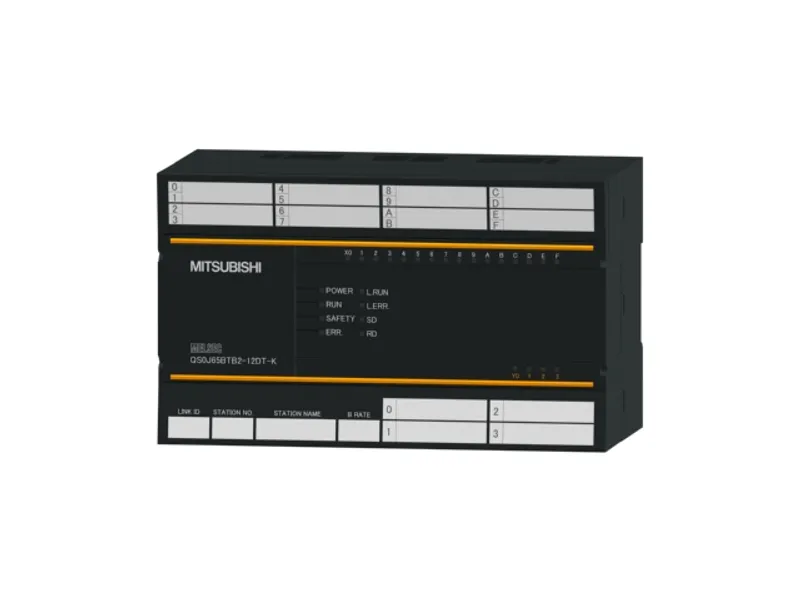

The Mitsubishi Electric QS0J65BTB2-12DT-K is a safety network in the MELSEC-QS/WS Safety. DC input: 8 points (double input), 16 points (single input), 24 V DC, 4.6 mA, response time: 0.4 ms, 16 points/common, negative common type, transistor output: 4 points (source + sink type), 2 points (source + source type), 24 V DC, 0.5 A/point, response time: 0.4 ms, 4 points/common, 2-piece terminal block, S-mark certified. Mitsubishi Electric has discontinued it (2023/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-QS/WS Safety
Category	Safety network
Type	CC-Link Safety
Subtype	Safety I/O
Sales status	2023/09 Discontinued (Mitsubishi Electric)
Outline	DC input: 8 points (double input), 16 points (single input), 24 V DC, 4.6 mA, response time: 0.4 ms, 16 points/common, negative common type, transistor output: 4 points (source + sink type), 2 points (source + source type), 24 V DC, 0.5 A/point, response time: 0.4 ms, 4 points/common, 2-piece terminal block, S-mark certified

Input specifications

Number of input points	8 points (doubling input) 16 points (single input)
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...28.8 V DC)
Rated input current	Approx. 4.6 mA
Maximum number of simultaneous input points	100 %
ON voltage/ON current	15 V DC or more/2 mA or more
OFF voltage/OFF current	5 V DC or less/0.5 mA or less
Input resistance	Approx. 5.6 kΩ
Input type	DC input (negative common type)
Input response time: OFF to ON	0.4 ms or less (24 V DC)
Input response time: ON to OFF	0.4 ms or less (24 V DC)
Input response time of safety remote station	11.2 ms or less + time of noise removal filter (1 ms, 5 ms, 10 ms, 20 ms, 50 ms)
Input common terminal arrangement	16 points/common (2-wire, terminal block type)
Input isolation method	Photocoupler

Output specifications

Number of output points	4 points (source + sink type) 2 points (source + source type)
Rated load voltage	24 V DC
Operating load voltage range	19.2...28.8 V DC (ripple ratio: within 5 %)
Maximum load current	0.5 A/point
Maximum inrush current	1.0 A, 10 ms or less
Leakage current at OFF	0.5 mA or less
Maximum voltage drop at ON	1.0 V DC or less
Protection function	Output overload protection function
Output type	Source + sink type Source + source type
Output response time: OFF to ON	0.4 ms or less (24 V DC)
Output response time: ON to OFF	0.4 ms or less (24 V DC)
Output response time of safety remote station: OFF to ON	11.2 ms or less
Output response time of safety remote station: ON to OFF	10.4 ms or less
Surge suppressor	Zener diode
Output common terminal arrangement	4 points/common (2-wire, terminal block type)
Common current	Maximum 4 A (total of inputs and outputs)
Output isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Station type	Safety remote I/O station
Number of occupied stations	1 station
Number of accesses to nonvolatile memory inside module	10 12 times
Safety remote station refresh response processing time	9.6 ms
External power supply: Voltage	19.2...28.8 V DC (ripple ratio within 5 %)
External power supply: Current	60 mA (at 24 V DC and all points ON, excluding the external load current)
External power supply: Protection function	External power supply overvoltage protection function, external power supply overcurrent protection function
External power supply: Fuse	8 A (not replaceable)
Module power supply: Voltage	19.2...28.8 V DC (ripple ratio: within 5 %)
Module power supply: Current	140 mA or less (at 24 V DC, all points ON)
Module power supply: Protection function	Module power supply overvoltage protection function, module power supply overcurrent protection function
Module power supply: Fuse	0.8 A (not replaceable)
Module power supply: Allowable momentary power failure time	Within 10 ms
External interface	Communication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: 18-point two-piece terminal block (M3 screw) x 3
Weight	0.71 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-40...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , duration of action 11 ms, 3 times in X, Y, Z directions respectively by sine half-wave pulse)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class III
