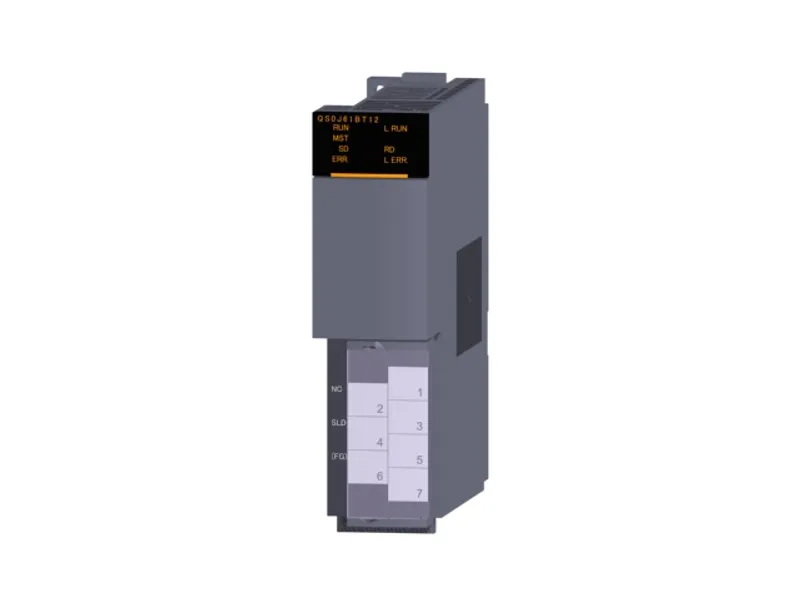

Mitsubishi Electric QS0J61BT12

Mitsubishi MELSEC-QS/WS Safety Safety network

MPN
QS0J61BT12
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QS0J61BT12 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QS0J61BT12?

The Mitsubishi Electric QS0J61BT12 is a safety network in the MELSEC-QS/WS Safety. CC-Link Safety manager station. Mitsubishi Electric has discontinued it (2023/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-QS/WS Safety
CategorySafety network
TypeCC-Link Safety
SubtypeManager station
Sales status2023/09 Discontinued (Mitsubishi Electric)
OutlineCC-Link Safety manager station

Specifications

Transmission speed156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 156 kbps1200 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 625 kbps900 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 2.5 Mbps400 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 5 Mbps160 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 10 Mbps100 m
Station typeSafety manager station
Maximum number of connected stations64
Maximum number of link points per systemRemote I/O (RX, RY) : 2048 points Remote register (RWw) : 256 points Remote register (RWr) : 256 points
Link points per remote station: Safety remote I/O station: Number of occupied stations: 1 stationRemote input (RX) : 32 points Remote output (RY) : 32 points Remote register (RWw) : 0 points Remote register (RWr) : 0 points
Link points per remote station: Standard remote I/O station: Number of occupied stations: 1 stationRemote input (RX) : 32 points Remote output (RY) : 32 points Remote register (RWw) : 4 points Remote register (RWr) : 4 points
Link points per remote station: Standard remote I/O station: Number of occupied stations: 2 stationsRemote input (RX) : 64 points Remote output (RY) : 64 points Remote register (RWw) : 8 points Remote register (RWr) : 8 points
Link points per remote station: Standard remote I/O station: Number of occupied stations: 3 stationsRemote input (RX) : 96 points Remote output (RY) : 96 points Remote register (RWw) : 12 points Remote register (RWr) : 12 points
Link points per remote station: Standard remote I/O station: Number of occupied stations: 4 stationsRemote input (RX) : 128 points Remote output (RY) : 128 points Remote register (RWw) : 16 points Remote register (RWr) : 16 points
Communication methodBroadcast polling method
Synchronization methodFrame synchronization method
Encoding methodNRZI method
Network topologyBus (RS-485)
Transmission formatHDLC compliant
Error control system: Safety remote I/O stationCRC32 (X 32 + X 26 + X 23 + X 22 + X 16 + X 12 + X 11 + X 10 + X 8 + X 7 + X 5 + X 4 + X 2 + X + 1)
Error control system: Standard remote I/O stationCRC16 (X 16 + X 12 + X 5 + 1)
Communication cableVer.1.10 compatible CC-Link dedicated cable CC-Link dedicated cable (Ver.1.00 compatible) CC-Link dedicated high-performance cable (Ver.1.00 compatible)
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.46 A
Weight0.12 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QS0J61BT12: frequently asked questions

Can I still buy the QS0J61BT12 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QS0J61BT12, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QS0J61BT12 be shipped?

QS0J61BT12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QS0J61BT12 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QS0J61BT12 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QS0J61BT12, subject to availability and destination.
