Mitsubishi Electric QS0J65BTS2-8D

Mitsubishi MELSEC-QS/WS Safety Safety network

MPN
QS0J65BTS2-8D
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QS0J65BTS2-8D (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QS0J65BTS2-8D?

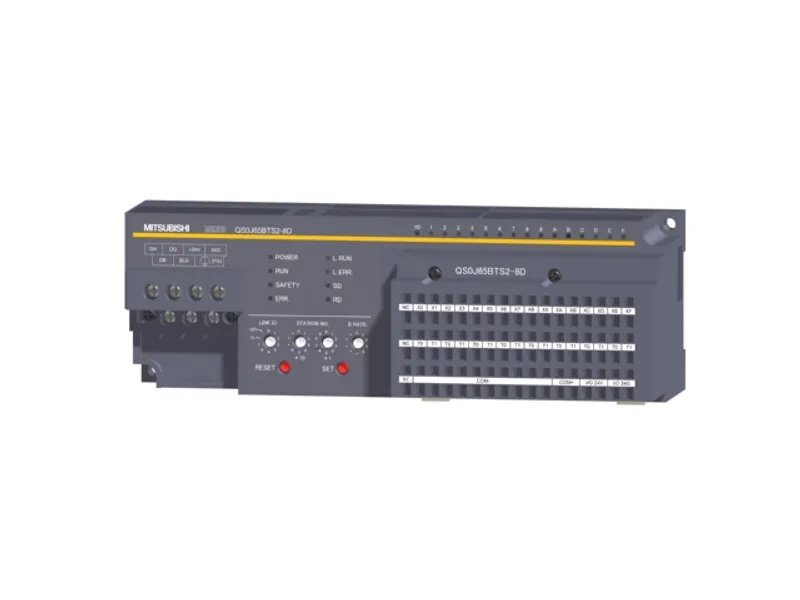

The Mitsubishi Electric QS0J65BTS2-8D is a safety network in the MELSEC-QS/WS Safety. DC input: 8 points (double input), 16 points (single input), 24 V DC, 5.9 mA, response time: 0.4 ms, 16 points/common, negative common type, spring-clamp terminal block. Mitsubishi Electric has discontinued it (2023/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-QS/WS Safety
CategorySafety network
TypeCC-Link Safety
SubtypeSafety input
Sales status2023/09 Discontinued (Mitsubishi Electric)
OutlineDC input: 8 points (double input), 16 points (single input), 24 V DC, 5.9 mA, response time: 0.4 ms, 16 points/common, negative common type, spring-clamp terminal block

Specifications

Number of input points8 points (doubling input) 16 points (single input)
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 19.2...28.8 V DC)
Rated input currentApprox. 5.9 mA
Maximum number of simultaneous input points100 %
ON voltage/ON current15 V DC or more/2 mA or more
OFF voltage/OFF current5 V DC or less/0.5 mA or less
Input resistanceApprox. 4.3 kΩ
Input typeDC input (negative common type)
Input response time: OFF to ON0.4 ms or less (24 V DC)
Input response time: ON to OFF0.4 ms or less (24 V DC)
Input response time of safety remote station11.2 ms or less + time of noise removal filter (1 ms, 5 ms, 10 ms, 20 ms, 50 ms)
Input common terminal arrangement16 points/common (2-wire, spring clamp terminal block type)
Input isolation methodPhotocoupler
Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Station typeSafety remote I/O station
Number of occupied stations1 station
Number of accesses to nonvolatile memory inside module10 12 times
Safety remote station refresh response processing time9.6 ms
External power supply: Voltage19.2...28.8 V DC (ripple ratio within 5 %)
External power supply: Current40 mA (at 24 V DC and all points ON, excluding the external load current)
External power supply: Protection functionExternal power supply overvoltage protection function, external power supply overcurrent protection function
External power supply: Fuse8 A (not replaceable)
Module power supply: Voltage19.2...28.8 V DC (ripple ratio: within 5 %)
Module power supply: Current120 mA or less (at 24 V DC, all points ON)
Module power supply: Protection functionModule power supply overvoltage protection function, module power supply overcurrent protection function
Module power supply: Fuse0.8 A (not replaceable)
Module power supply: Allowable momentary power failure timeWithin 10 ms
External interfaceCommunication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: two-piece spring clamp terminal block
Weight0.46 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-40...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , duration of action 11 ms, 3 times in X, Y, Z directions respectively by sine half-wave pulse)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass III

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QS0J65BTS2-8D: frequently asked questions

Can I still buy the QS0J65BTS2-8D now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QS0J65BTS2-8D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QS0J65BTS2-8D be shipped?

QS0J65BTS2-8D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QS0J65BTS2-8D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QS0J65BTS2-8D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QS0J65BTS2-8D, subject to availability and destination.
