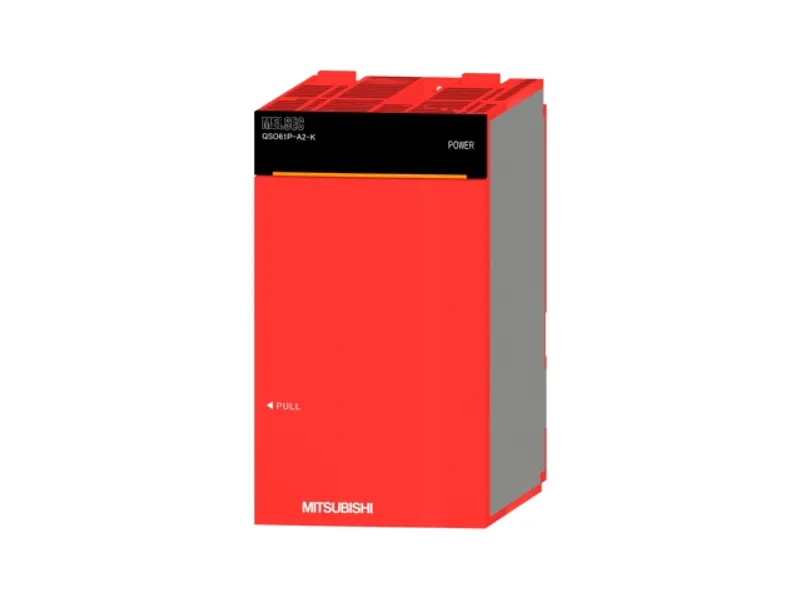

Mitsubishi Electric QS061P-A2-K

Mitsubishi MELSEC-QS/WS Safety Power supply

MPN
QS061P-A2-K
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QS061P-A2-K (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QS061P-A2-K?

The Mitsubishi Electric QS061P-A2-K is a power supply in the MELSEC-QS/WS Safety. Input: 200...240 V AC Output: 5 V DC 6 A S-mark certified. Mitsubishi Electric has discontinued it (2023/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-QS/WS Safety
CategoryPower supply
TypeAC input
Subtype200...240 V AC input
Sales status2023/09 Discontinued (Mitsubishi Electric)
OutlineInput: 200...240 V AC Output: 5 V DC 6 A S-mark certified

Specifications

Installation positionQS series power supply module installation slot
Applicable base unitQS034B-K
Input power supply voltage200...240 V AC (-15 %...+10 %)
Input frequency50/60 Hz ±5 %
Input voltage distortionWithin 5 %
Maximum input apparent power125 VA
Inrush current20 A, within 8 ms
Rated output current: 5 V DC6 A
Overcurrent protection: 5 V DC6.6 A or more
Overvoltage protection: 5 V DC5.5...6.5 V
Efficiency70 % or more
Allowable momentary power failure timeWithin 20 ms
Withstand voltageBetween input-LG batched and output-FG batched, 2830 V AC rms/3 cycles (altitude 2000 m)
Insulation resistanceInput and LG batched, output and FG batched, batch input-LG, batch output-FG: 10 MΩ or higher by 500 VDC insulation resistance tester
Operation indicationLED (Normal: On (green), error: Off)
FuseBuilt-in (user-unchangeable)
Contact output section: ApplicationERR. contact
Contact output section: Rated switching voltage/current24 V DC, 0.5 A
Contact output section: Minimum switching load5 V DC, 1 mA
Contact output section: Response time: OFF to ON10 ms or less
Contact output section: Response time: ON to OFF12 ms or less
Contact output section: Life: Mechanical20 million times or more
Contact output section: Life: ElectricalRated switching voltage/current load: More than 100 thousand times
Contact output section: Surge suppressorNone
Contact output section: FuseNone
External interfaceTerminal block (M3.5 screw)
External dimensions: Height98 mm
External dimensions: Width55.2 mm
External dimensions: Depth115 mm
Weight0.40 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

QS061P-A2-K: frequently asked questions

Can I still buy the QS061P-A2-K now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QS061P-A2-K, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QS061P-A2-K be shipped?

QS061P-A2-K is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QS061P-A2-K in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QS061P-A2-K and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QS061P-A2-K, subject to availability and destination.
