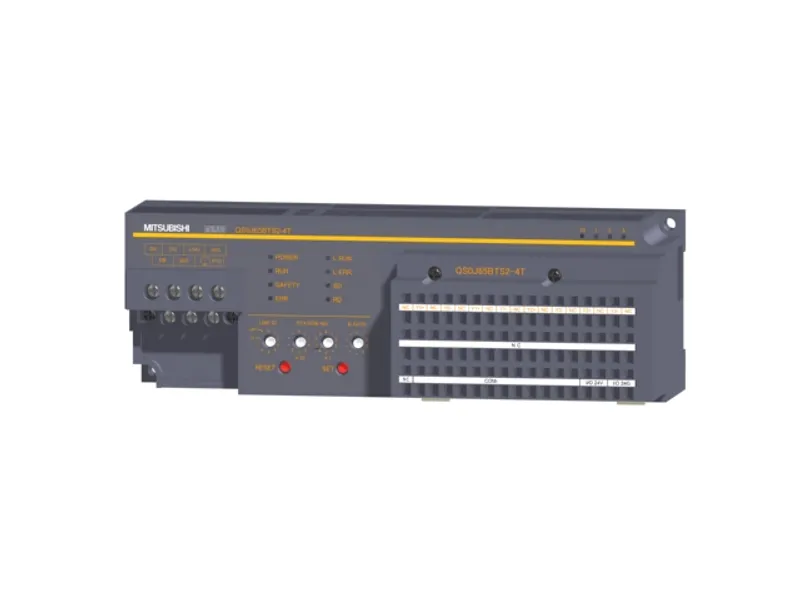

QS0J65BTS2-4T Mitsubishi MELSEC-QS/WS Safety Safety network
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QS0J65BTS2-4T (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-QS/WS Safety – Safety programmable controller |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the QS0J65BTS2-4T now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the QS0J65BTS2-4T, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can QS0J65BTS2-4T be shipped?
QS0J65BTS2-4T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up QS0J65BTS2-4T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for QS0J65BTS2-4T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QS0J65BTS2-4T, subject to availability and destination.
The Mitsubishi Electric QS0J65BTS2-4T is a safety network in the MELSEC-QS/WS Safety. Transistor output: 4 points (source + sink type), 2 points (source + source type), 24 V DC, 0.5 A/point, response time: 0.4 ms, 4 points/common, spring-clamp terminal block. Mitsubishi Electric has discontinued it (2023/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-QS/WS Safety |
| Category | Safety network |
| Type | CC-Link Safety |
| Subtype | Safety output |
| Sales status | 2023/09 Discontinued (Mitsubishi Electric) |
| Outline | Transistor output: 4 points (source + sink type), 2 points (source + source type), 24 V DC, 0.5 A/point, response time: 0.4 ms, 4 points/common, spring-clamp terminal block |
Specifications
| Number of output points | 4 points (source + sink type) 2 points (source + source type) |
| Rated load voltage | 24 V DC |
| Operating load voltage range | 19.2...28.8 V DC (ripple ratio: within 5 %) |
| Maximum load current | 0.5 A/point |
| Maximum inrush current | 1.0 A, 10 ms or less |
| Leakage current at OFF | 0.5 mA or less |
| Maximum voltage drop at ON | 1.0 V DC or less |
| Protection function | Output overload protection function |
| Output type | Source + sink type Source + source type |
| Output response time: OFF to ON | 0.4 ms or less (24 V DC) |
| Output response time: ON to OFF | 0.4 ms or less (24 V DC) |
| Output response time of safety remote station: OFF to ON | 11.2 ms or less |
| Output response time of safety remote station: ON to OFF | 10.4 ms or less |
| Surge suppressor | Zener diode |
| Output common terminal arrangement | 4 points/common (2-wire, spring clamp terminal block type) |
| Common current | Maximum 2 A |
| Output isolation method | Photocoupler |
| Dielectric withstand voltage | Between all DC external terminals and ground: 500 V AC for 1 minute |
| Insulation resistance | Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester |
| Protection degree | IP2X |
| Station type | Safety remote I/O station |
| Number of occupied stations | 1 station |
| Number of accesses to nonvolatile memory inside module | 10 12 times |
| Safety remote station refresh response processing time | 9.6 ms |
| External power supply: Voltage | 19.2...28.8 V DC (ripple ratio within 5 %) |
| External power supply: Current | 45 mA (at 24 V DC and all points ON, excluding the external load current) |
| External power supply: Protection function | External power supply overvoltage protection function, external power supply overcurrent protection function |
| External power supply: Fuse | 8 A (not replaceable) |
| Module power supply: Voltage | 19.2...28.8 V DC (ripple ratio: within 5 %) |
| Module power supply: Current | 95 mA or less (at 24 V DC, all points ON) |
| Module power supply: Protection function | Module power supply overvoltage protection function, module power supply overcurrent protection function |
| Module power supply: Fuse | 0.8 A (not replaceable) |
| Module power supply: Allowable momentary power failure time | Within 10 ms |
| External interface | Communication part, module power supply part: 7-point two-piece terminal block (M3 screw) I/O power supply part, I/O part: two-piece spring clamp terminal block |
| Weight | 0.45 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -40...75 ˚C |
| Operating ambient humidity | 5...95 %RH, non-condensing |
| Storage ambient humidity | 5...95 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , duration of action 11 ms, 3 times in X, Y, Z directions respectively by sine half-wave pulse) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
| Equipment class | Class III |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| CC-Link Safety System Remote I/O Module User's Manual (SH-080612ENG-K) | PDF · 3.10MB |
| CC-Link Safety System Remote I/O Module User's Manual (Hardware) (IB-0800415) | PDF · 1.64MB |
More Mitsubishi Electric (Factory Automation) parts

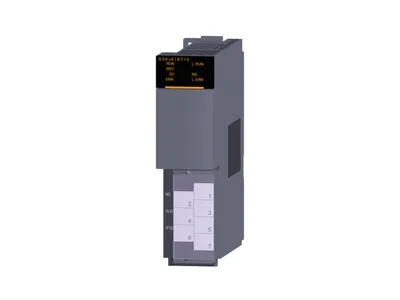

Available on requestQS0J61BT12 Mitsubishi MELSEC-QS/WS Safety Safety network
