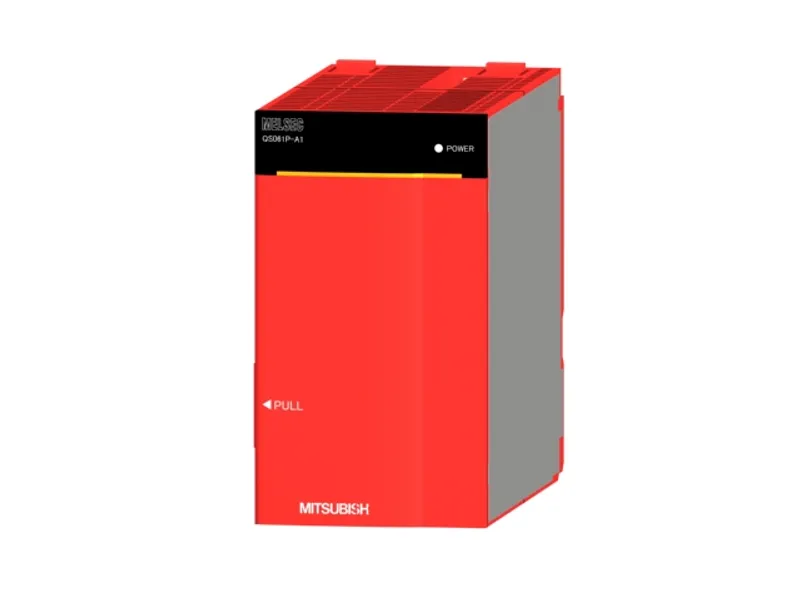

QS061P-A1 Mitsubishi MELSEC-QS/WS Safety Power supply
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QS061P-A1 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-QS/WS Safety – Safety programmable controller |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the QS061P-A1 now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the QS061P-A1, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can QS061P-A1 be shipped?
QS061P-A1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up QS061P-A1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for QS061P-A1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QS061P-A1, subject to availability and destination.
The Mitsubishi Electric QS061P-A1 is a power supply in the MELSEC-QS/WS Safety. Input: 100...120 V AC Output: 5 V DC 6 A. Mitsubishi Electric has discontinued it (2023/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-QS/WS Safety |
| Category | Power supply |
| Type | AC input |
| Subtype | 100...120 V AC input |
| Sales status | 2023/09 Discontinued (Mitsubishi Electric) |
| Outline | Input: 100...120 V AC Output: 5 V DC 6 A |
Specifications
| Installation position | QS series power supply module installation slot |
| Applicable base unit | QS034B |
| Input power supply voltage | 100...120 V AC (-15 %...+10 %) |
| Input frequency | 50/60 Hz ±5 % |
| Input voltage distortion | Within 5 % |
| Maximum input apparent power | 125 VA |
| Inrush current | 20 A, within 8 ms |
| Rated output current: 5 V DC | 6 A |
| Overcurrent protection: 5 V DC | 6.6 A or more |
| Overvoltage protection: 5 V DC | 5.5...6.5 V |
| Efficiency | 70 % or more |
| Allowable momentary power failure time | Within 20 ms |
| Withstand voltage | Between input-LG batched and output-FG batched, 1780 V AC rms/3 cycles (altitude 2000 m) |
| Insulation resistance | Input and LG batched, output and FG batched, batch input-LG, batch output-FG: 10 MΩ or higher by 500 VDC insulation resistance tester |
| Operation indication | LED (Normal: On (green), error: Off) |
| Fuse | Built-in (user-unchangeable) |
| Contact output section: Application | ERR. contact |
| Contact output section: Rated switching voltage/current | 24 V DC, 0.5 A |
| Contact output section: Minimum switching load | 5 V DC, 1 mA |
| Contact output section: Response time: OFF to ON | 10 ms or less |
| Contact output section: Response time: ON to OFF | 12 ms or less |
| Contact output section: Life: Mechanical | 20 million times or more |
| Contact output section: Life: Electrical | Rated switching voltage/current load: More than 100 thousand times |
| Contact output section: Surge suppressor | None |
| Contact output section: Fuse | None |
| External interface | Terminal block (M3.5 screw) |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 55.2 mm |
| External dimensions: Depth | 115 mm |
| Weight | 0.40 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
