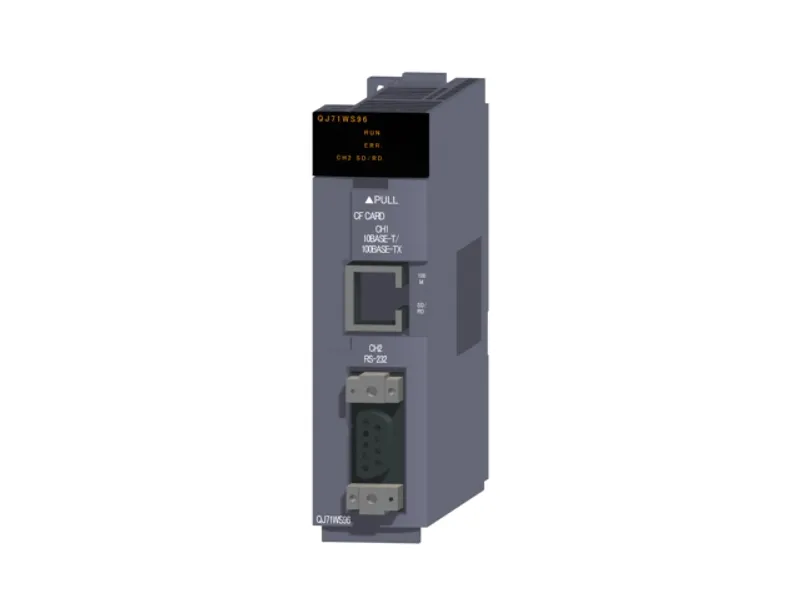

Mitsubishi Electric QJ71WS96-MES

Mitsubishi MELSEC-Q Series MES interface

MPN
QJ71WS96-MES
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QJ71WS96-MES (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71WS96-MES?

The Mitsubishi Electric QJ71WS96-MES is a MES interface in the MELSEC-Q Series. Product package including QJ71WS96 and MX MESInterface-WS. For the first time, please use QJ71MES96. Mitsubishi Electric has discontinued it (2018/05 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMES interface
Sales status2018/05 Discontinued (Mitsubishi Electric)
OutlineProduct package including QJ71WS96 and MX MESInterface-WS. For the first time, please use QJ71MES96.

Specifications

DB interface: No. of databases that can be connected• Oracle® 9i • Oracle® 10g • Microsoft® SQL Server® 2000
DB interface: No. of connected databasesMaximum 32 items/project
DB interface: Job: Allowable number of settingsMaximum 64 items/project
DB interface: Job: Trigger conditions (No. of conditions can be combined)Maximum 2 conditions (Combination can be selected either AND or OR)/job
DB interface: Job: Trigger conditions (Condition type)• Period: 1 to 32767 seconds • Time: Year, month, day, day of the week, hour, minute • Value monitoring: Compares tag component value and tag component value. • Compares tag component value and constant value. • Module startup • Handshake
DB interface: Job: Action (Allowable number of settings)Maximum 10 actions/job
DB interface: Job: Action (Type)Select, update, insert, operation
DB interface: Job: Action (No. of communication action fields)Maximum 8192 fields/project ・ [DB-tag link settings]: Maximum 256 rows/communication action ・ [Select/Update/Delete conditions]: Maximum 8 rows/communication action
DB interface: Job: Action (No. of operations possible for operation action)(Maximum 20 dyadic operations)/operation action
DB interface: Job: Action (Operators for operation action)Addition, subtraction, multiplication, division, remainder, character string combination
DB interface: Job: Program execution (Allowable number of settings)Maximum 2 programs/job One program before execution of initial action + one program after execution of final action
DB interface: Device tag: No. of tags64 tags/project
DB interface: Device tag: No. of components64 components/tag 4096 components/project
DB interface: Device tag: Data typeSigned single-precision integer type (16 bits), signed double-precision integer type (32 bits), single-precision floating point type (32 bits), bit type, character string type (1 to 32 characters)
DB interface: Device tag: Statistical processingAverage, maximum, minimum, moving average, moving maximum, moving minimum
DB interface: DB buffering: Buffering capacity during communication errorMaximum capacity: CompactFlash card capacity - 32M bytes (16 M bytes to 512 M bytes)
XML processing: Command typeOne-shot execution of a job, enabling the job, disabling the job
XML processing: Request message sizeMaximum 128K bytes
XML processing: Reception protocolHTTP1.0
XML processing: Character codeUTF-8
XML processing: User authenticationNo. of accounts: 16 User ID: 1 to 20 characters Password: 6 to 14 characters
Working log: Error log capacityMaximum capacity: 1 M byte • At least 4800 logs can be recorded.
Working log: Event log capacityMaximum capacity: 2 M bytes • At least 4800 logs can be recorded. (When there is no detailed log) • At least 2 logs can be recorded. (When there is a detailed log)

QJ71WS96-MES: frequently asked questions

Can I still buy the QJ71WS96-MES now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QJ71WS96-MES, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QJ71WS96-MES be shipped?

QJ71WS96-MES is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71WS96-MES in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71WS96-MES and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71WS96-MES, subject to availability and destination.
