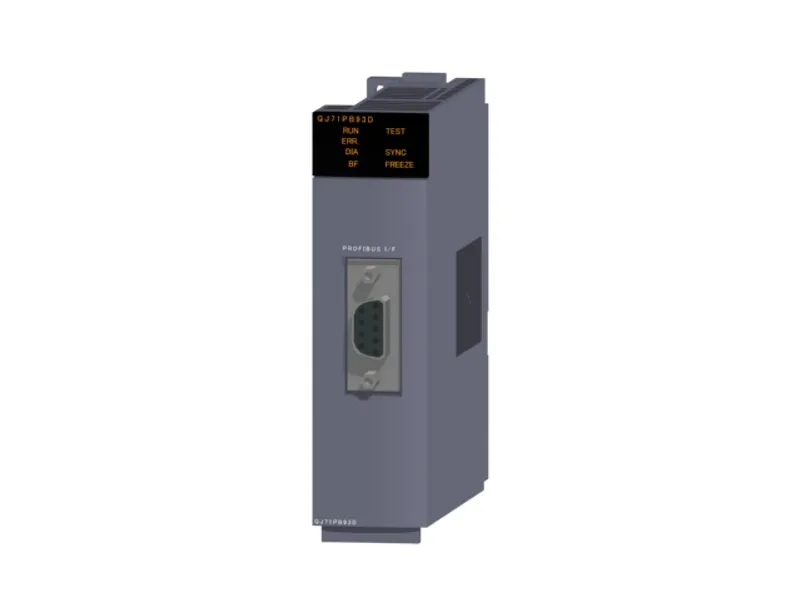

Mitsubishi Electric QJ71PB93D

Mitsubishi MELSEC-Q Series PROFIBUS-DP

MPN
QJ71PB93D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71PB93D?

The Mitsubishi Electric QJ71PB93D is a PROFIBUS-DP in the MELSEC-Q Series. PROFIBUS ® system compatible, DP master/slave. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryPROFIBUS-DP
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlinePROFIBUS ® system compatible, DP master/slave

Specifications

PROFIBUS-DP station typeSlave station (Complies with EN50170 Volume2 (Part 1, 2, 3, 4, 8))
Station numbers that may be set0...125
Maximum number of data that may be communicatedNumber of I/O data is 192 words in total. (Size of I/O data is up to 122 words.)
Transmission specifications: Electrical standard/characteristicsEIA. RS485 compliant
Transmission specifications: MediumShielded twisted pair cable
Transmission specifications: Network topologyBus topology (Tree topology when repeaters are used)
Transmission specifications: Data link methodPolling method
Transmission specifications: Encoding methodNRZ
Transmission specifications: Transmission speed9.6 kbps...12 Mbps
Transmission specifications: Transmission distance: 9.6 kbps, 19.2 kbps, 93.75 kbps1200 m/segment Maximum transmission distance when repeater is used: 4800 m/network
Transmission specifications: Transmission distance: 187.5 kbps1000 m/segment Maximum transmission distance when repeater is used: 4000 m/network
Transmission specifications: Transmission distance: 500 kbps400 m/segment Maximum transmission distance when repeater is used: 1600 m/network
Transmission specifications: Transmission distance: 1.5 Mbps200 m/segment Maximum transmission distance when repeater is used: 800 m/network
Transmission specifications: Transmission distance: 3 Mbps, 6 Mbps, 12 Mbps100 m/segment Maximum transmission distance when repeater is used: 400 m/network
Transmission specifications: Maximum number of repeaters3 repeaters
Transmission specifications: Number of connectable modules (Per segment)32 per segment (including repeater(s))
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.44 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.11 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QJ71PB93D: frequently asked questions

When can QJ71PB93D be shipped?

QJ71PB93D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71PB93D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71PB93D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71PB93D, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

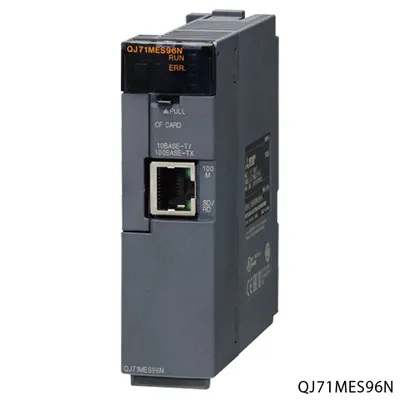

Mitsubishi Electric QJ71MES96N – Mitsubishi MELSEC-Q Series MES interface
Mitsubishi Electric
QJ71MES96N

Mitsubishi MELSEC-Q Series MES interface

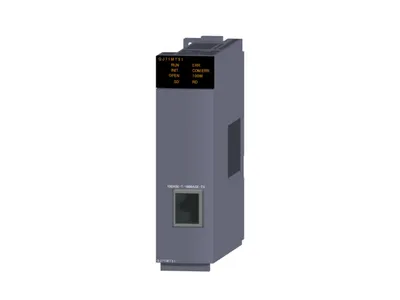

Mitsubishi Electric QJ71MT91 – Mitsubishi MELSEC-Q Series MODBUS/TCP
Mitsubishi Electric
QJ71MT91

Mitsubishi MELSEC-Q Series MODBUS/TCP

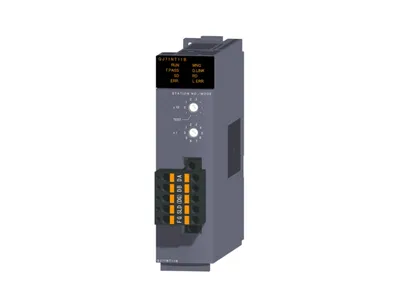

Mitsubishi Electric QJ71NT11B – Mitsubishi MELSEC-Q Series MELSECNET/H
Mitsubishi Electric
QJ71NT11B

Mitsubishi MELSEC-Q Series MELSECNET/H

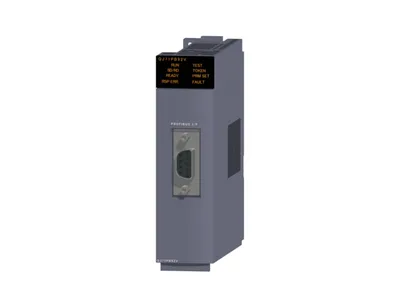

Mitsubishi Electric QJ71PB92V – Mitsubishi MELSEC-Q Series PROFIBUS-DP
