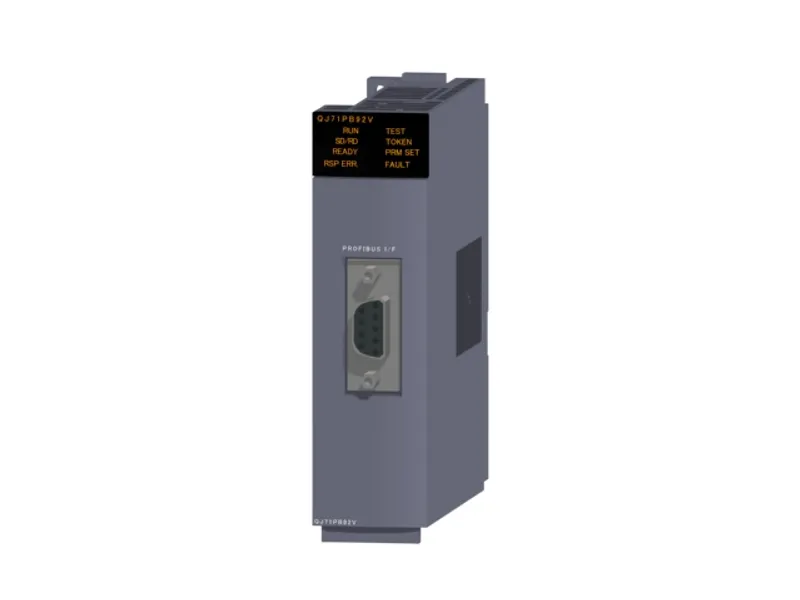

Mitsubishi Electric QJ71PB92V

Mitsubishi MELSEC-Q Series PROFIBUS-DP

MPN
QJ71PB92V
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71PB92V?

The Mitsubishi Electric QJ71PB92V is a PROFIBUS-DP in the MELSEC-Q Series. PROFIBUS ® system compatible, DP master/slave. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryPROFIBUS-DP
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlinePROFIBUS ® system compatible, DP master/slave

Specifications

PROFIBUS-DP station typeDP-Master (Class 1)
Transmission specifications: Electrical standard/characteristicsEIA-RS485 compliant
Transmission specifications: MediumShielded twisted pair cable
Transmission specifications: Network topologyBus topology (Tree topology when repeaters are used)
Transmission specifications: Data link method• Between DP-Master and DP-Slave: Polling method
Transmission specifications: Encoding methodNRZ
Transmission specifications: Transmission speed9.6 kbps...12 Mbps
Transmission specifications: Transmission distance: 9.6 kbps, 19.2 kbps, 93.75 kbps1200 m/segment Maximum transmission distance when repeater is used: 4800 m/network
Transmission specifications: Transmission distance: 187.5 kbps1000 m/segment Maximum transmission distance when repeater is used: 4000 m/network
Transmission specifications: Transmission distance: 500 kbps400 m/segment Maximum transmission distance when repeater is used: 1600 m/network
Transmission specifications: Transmission distance: 1.5 Mbps200 m/segment Maximum transmission distance when repeater is used: 800 m/network
Transmission specifications: Transmission distance: 3 Mbps, 6 Mbps, 12 Mbps100 m/segment Maximum transmission distance when repeater is used: 400 m/network
Transmission specifications: Maximum number of repeaters3 repeaters
Transmission specifications: Number of connectable modules (Per segment)32 per segment (including repeater(s))
Transmission specifications: Number of connectable modules (Per network)126 per network (total of DP-Masters and DP-Slaves)
Transmission specifications: Maximum number of DP-Slaves125 per QJ71PB92V
Transmission specifications: I/O data size: Input dataMaximum 8192 bytes (Maximum 244 bytes per DP-Slave)
Transmission specifications: I/O data size: Output dataMaximum 8192 bytes (Maximum 244 bytes per DP-Slave)
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.57 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.13 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
