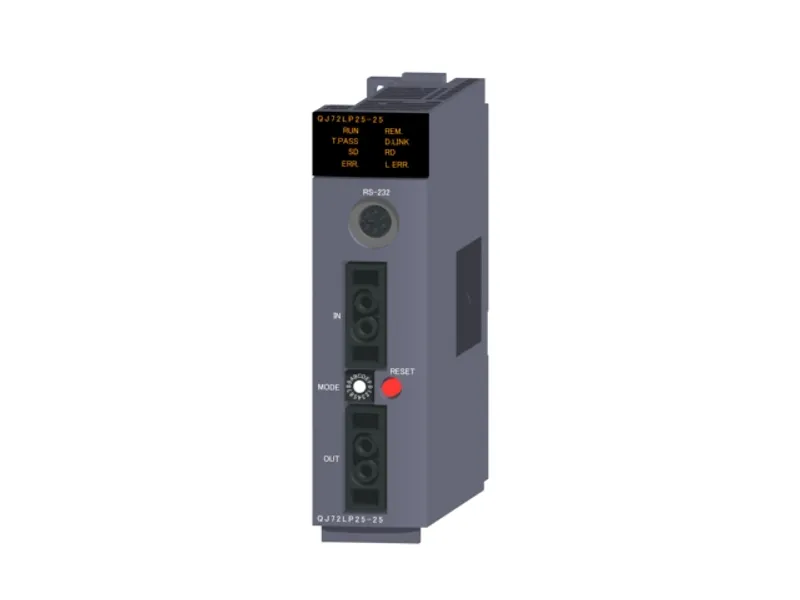

What is the Mitsubishi Electric QJ72LP25-25?

The Mitsubishi Electric QJ72LP25-25 is a MELSECNET/H in the MELSEC-Q Series. MELSECNET/H Remote I/O network, remote I/O station, optical loop system, connection cable: SI/QSI/H-PCF/broadband H-PCF optical cable, transmission path format: duplex loop. Mitsubishi Electric has announced its discontinuation (2028/02 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMELSECNET/H
TypeOptical loop (SI/QSI cable)
Sales status2028/02 To be end of order (Mitsubishi Electric)
OutlineMELSECNET/H Remote I/O network, remote I/O station, optical loop system, connection cable: SI/QSI/H-PCF/broadband H-PCF optical cable, transmission path format: duplex loop

Specifications

Maximum number of link points per network: LX/LY8192 points
Maximum number of link points per network: LB16384 points (Remote master station to remote sub-master station, remote I/O station: 8192 points, remote sub-master station, remote I/O station remote to master station: 8192 points) (MELSECNET/10 mode: 8192 points)
Maximum number of link points per network: LW16384 points (remote master station to remote sub-master station, remote I/O station: 8192 points, remote sub-master station, remote I/O station remote to master station: 8192 points) (MELSECNET/10 mode: 8192 points)
Maximum number of link points per station: Remote I/O network• Remote master station to remote I/O station: {(LY+LB)/8+(2×LW)}≦1600 bytes • Remote I/O station to remote master station: {(LX+LB)/8+(2+LW)}≦1600 bytes • Multiplexed remote master station to multiplexed remote sub-master station, multiplexed remote sub-master station to multiplexed remote master station: {(LY+LB)/8+(2×LW)}≦2000 bytes
Maximum I/O points per remote I/O stationX + Y ≦ 4096 points If the X/Y numbers are duplicate, only one side is taken into consideration.
Device points per remote I/O station: M8192 points
Device points per remote I/O station: SM2048 points
Device points per remote I/O station: D12288 points
Device points per remote I/O station: SD2048 points
Communication speed25 Mbps/10 Mbps (MELSECNET/10 mode: 10 Mbps)
Maximum number of connectable stations: Remote I/O network65 stations (Remote master station: 1, Remote I/O stations: 64)
Overall cable distance30 km
Maximum station-to-station distanceSI optical cables: 200 m (25 Mbps), 500 m (10 Mbps) H-PCF optical cables: 400 m (25 Mbps), 1 km (10 Mbps) Broad-band H-PCF Optical Cables: 1 km QSI optical cables: 1 km
Communication cableSI optical cables, H-PCF optical cables, Broad-band H-PCF Optical Cables, QSI optical cables
Applicable connector2-core optical connector plug F06/F08 or equivalent (JIS C5975/5977 compliant)
Maximum number of networks239
Network topologyDuplex loop
Communication methodToken ring
Synchronization methodFrame synchronization method
Encoding methodNRZI method
Transmission formatHDLC compliant (frame type)
Error control systemRetries based on CRC (X 16 + X 12 + X 5 + 1) and timeover
Internal current consumption (5 V DC)0.89 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.15 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
