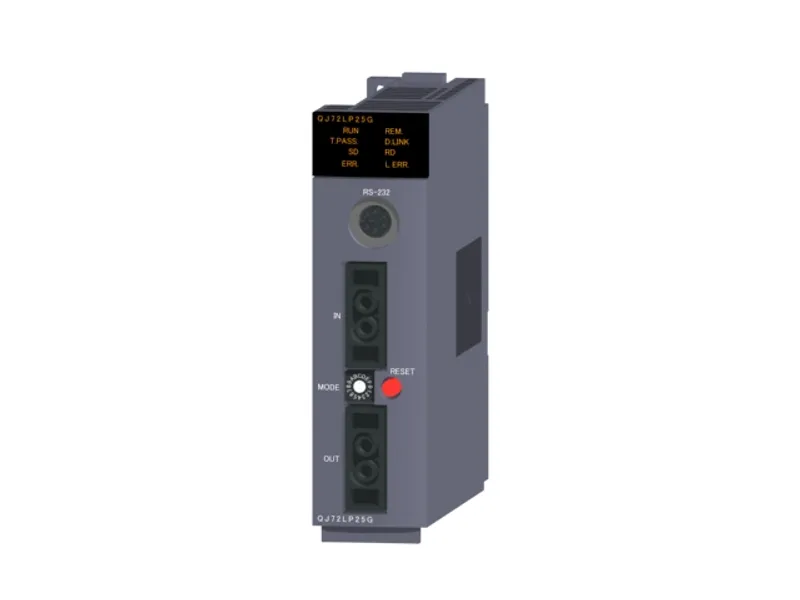

Mitsubishi Electric QJ72LP25G

Mitsubishi MELSEC-Q Series MELSECNET/H

MPN
QJ72LP25G
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ72LP25G?

The Mitsubishi Electric QJ72LP25G is a MELSECNET/H in the MELSEC-Q Series. MELSECNET/H remote I/O network remote I/O station, optical loop system, connection cable: GI-50/125 optical cable, transmission path format: duplex loop. Mitsubishi Electric has announced its discontinuation (2029/02 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMELSECNET/H
TypeOptical loop (GI cable)
Sales status2029/02 To be end of order (Mitsubishi Electric)
OutlineMELSECNET/H remote I/O network remote I/O station, optical loop system, connection cable: GI-50/125 optical cable, transmission path format: duplex loop

Specifications

Maximum number of link points per network: LX/LY8192 points
Maximum number of link points per network: LB16384 points (Remote master station to remote sub-master station, remote I/O station: 8192 points, remote sub-master station, remote I/O station remote to master station: 8192 points) (MELSECNET/10 mode: 8192 points)
Maximum number of link points per network: LW16384 points (remote master station to remote sub-master station, remote I/O station: 8192 points, remote sub-master station, remote I/O station remote to master station: 8192 points) (MELSECNET/10 mode: 8192 points)
Maximum number of link points per station: Remote I/O network• Remote master station to remote I/O station: {(LY+LB)/8+(2×LW)}≦1600 bytes • Remote I/O station to remote master station: {(LX+LB)/8+(2+LW)}≦1600 bytes • Multiplexed remote master station to multiplexed remote sub-master station, multiplexed remote sub-master station to multiplexed remote master station: {(LY+LB)/8+(2×LW)}≦2000 bytes
Maximum I/O points per remote I/O stationX + Y ≦ 4096 points If the X/Y numbers are duplicate, only one side is taken into consideration.
Device points per remote I/O station: M8192 points
Device points per remote I/O station: SM2048 points
Device points per remote I/O station: D12288 points
Device points per remote I/O station: SD2048 points
Communication speed10 Mbps
Maximum number of connectable stations: Remote I/O network65 stations (Remote master station: 1, Remote I/O stations: 64)
Overall cable distance30 km
Maximum station-to-station distance2 km
Communication cableGI-50/125 optical cables
Applicable connector2-core optical connector plug F06/F08 or equivalent (JIS C5975/5977 compliant)
Maximum number of networks239
Network topologyDuplex loop
Communication methodToken ring
Synchronization methodFrame synchronization method
Encoding methodNRZI method
Transmission formatHDLC compliant (frame type)
Error control systemRetries based on CRC (X 16 + X 12 + X 5 + 1) and timeover
Internal current consumption (5 V DC)0.89 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.15 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

QJ72LP25G: frequently asked questions

When can QJ72LP25G be shipped?

QJ72LP25G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ72LP25G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ72LP25G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ72LP25G, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric QJ71WS96 – Mitsubishi MELSEC-Q Series Web server
Mitsubishi Electric
QJ71WS96

Mitsubishi MELSEC-Q Series Web server

Mitsubishi Electric QJ71WS96-MES – Mitsubishi MELSEC-Q Series MES interface
Mitsubishi Electric
QJ71WS96-MES

Mitsubishi MELSEC-Q Series MES interface

Mitsubishi Electric QJ72BR15 – Mitsubishi MELSEC-Q Series MELSECNET/H
Mitsubishi Electric
QJ72BR15

Mitsubishi MELSEC-Q Series MELSECNET/H

Mitsubishi Electric QJ72LP25-25 – Mitsubishi MELSEC-Q Series MELSECNET/H
Mitsubishi Electric
QJ72LP25-25

Mitsubishi MELSEC-Q Series MELSECNET/H

Mitsubishi Electric QJ72LP25GE – Mitsubishi MELSEC-Q Series MELSECNET/H
Mitsubishi Electric
QJ72LP25GE

Mitsubishi MELSEC-Q Series MELSECNET/H

Mitsubishi Electric QLP21 – Mitsubishi MELSEC-A Module
Mitsubishi Electric
QLP21

Mitsubishi MELSEC-A Module

Mitsubishi Electric QLP21S – Mitsubishi MELSEC-A Module
Mitsubishi Electric
QLP21S

Mitsubishi MELSEC-A Module

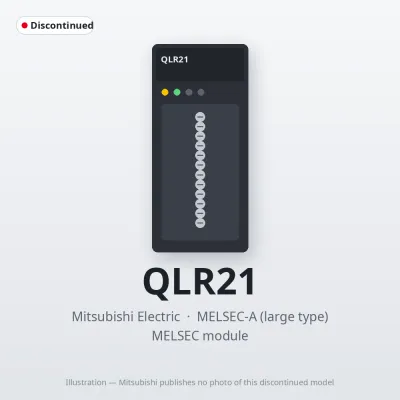

Mitsubishi Electric QLR21 – Mitsubishi MELSEC-A Module
