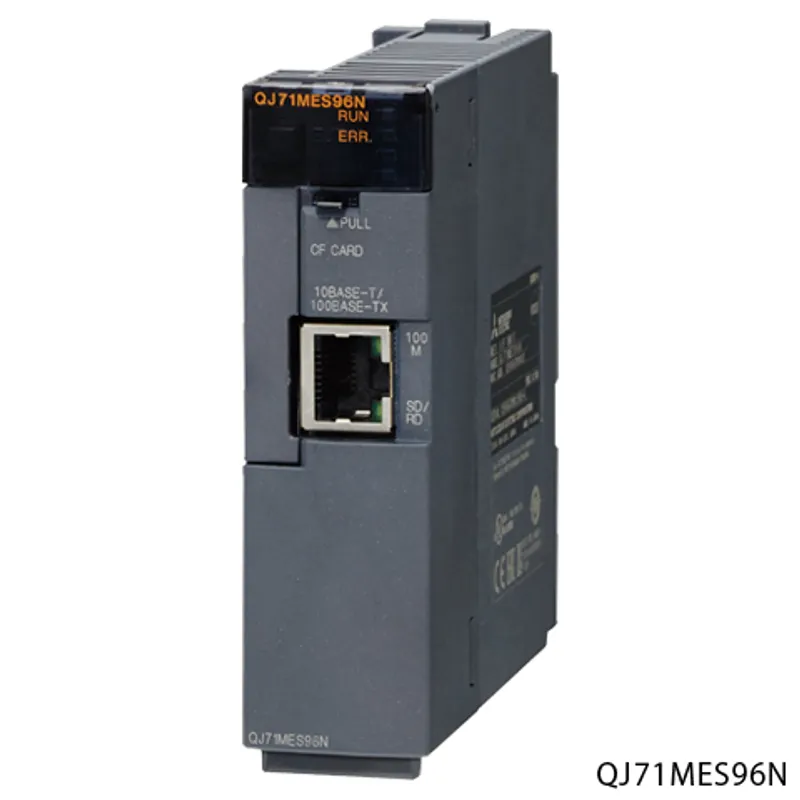

QJ71MES96N Mitsubishi MELSEC-Q Series MES interface

MPN: QJ71MES96N · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – Information/network
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can QJ71MES96N be shipped?

QJ71MES96N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71MES96N in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71MES96N and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71MES96N, subject to availability and destination.

The Mitsubishi Electric QJ71MES96N is a MES interface in the MELSEC-Q Series. 10BASE-T/100BASE-TX: 1 channel, data link with the IT system (MES) database. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	MES interface
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	10BASE-T/100BASE-TX: 1 channel, data link with the IT system (MES) database

Specifications

DB interface: No. of databases that can be connected	• Oracle® 8i (32bit) • Oracle® 9i (32bit) • Oracle® 10g (32bit) • Oracle® 11g (32bit, 64bit) • Oracle® 12c (64bit) • Oracle® 18c (64bit) • Oracle® 19c (64bit) • Microsoft® SQL Server® 2000 (32bit) • Microsoft® SQL Server® 2005 (32bit) • Microsoft® SQL Server® 2008 (32bit, 64bit) • Microsoft® SQL Server® 2008 R2 (32bit, 64bit) • Microsoft® SQL Server® 2012 (32bit, 64bit) • Microsoft® SQL Server® 20
DB interface: No. of connected databases	Maximum 32 items/project
DB interface: Job: Allowable number of settings	Maximum 64 items/project
DB interface: Job: Trigger buffering	Maximum 128 times
DB interface: Job: Trigger conditions (No. of conditions can be combined)	Maximum 2 conditions (Combination can be selected either AND or OR)/job
DB interface: Job: Trigger conditions (Condition type)	• Period: 1 to 32767 seconds • Time: Year, month, day, day of the week, hour, minute • Value monitoring: Compares tag component value and tag component value. • Compares tag component value and constant value. • Module startup • Handshake
DB interface: Job: Action (Allowable number of settings)	Maximum 10 actions/job
DB interface: Job: Action (Type)	Select, update, insert, multiselect, delete, stored procedure, operation
DB interface: Job: Action (No. of communication action fields)	Maximum 8192 fields/project ･ [DB-tag link settings](Select/Update/Insert/MultiSelect): Maximum 256 rows/communication action ･ [DB-tag link settings](Stored procedure): Maximum 257 rows/communication action ･ [Select/Update/Delete conditions]: Maximum 8 rows/communication action ･ [Select sort settings]: Maximum 8 rows/communication action
DB interface: Job: Action (No. of records/data selectable for communication action)	Up to 40000 records/MultiSelect communication action Up to 45000 words/job
DB interface: Job: Action (No. of operations possible for operation action)	(Maximum 20 dyadic operations)/operation action
DB interface: Job: Action (Operators for operation action)	Addition, subtraction, multiplication, division, remainder, character string combination
DB interface: Job: Program execution (Allowable number of settings)	Maximum 2 programs/job One program before execution of initial action + one program after execution of final action
DB interface: Device tag: No. of access target CPU settings	64 settings/project
DB interface: Device tag: No. of tags	64 tags/project
DB interface: Device tag: No. of components	256 components/tag 4096 components/project
DB interface: Device tag: Data type	Signed single-precision integer type (16 bits), signed double-precision integer type (32 bits), single-precision floating point type (32 bits), bit type, character string type (1 to 32 characters), 16-bit BCD type, 32-bit BCD type
DB interface: Device tag: Statistical processing	Average, maximum, minimum, moving average, moving maximum, moving minimum
DB interface: DB buffering: Buffering capacity during communication error	Maximum capacity: CompactFlash card capacity - 32M bytes (16 M bytes to 512 M bytes)
XML processing: Command type	One-shot execution of a job, enabling the job, disabling the job
XML processing: Request message size	Maximum 128K bytes
XML processing: Reception protocol	HTTP1.0
XML processing: Character code	UTF-8
XML processing: User authentication	No. of accounts: 16 User ID: 1 to 20 characters Password: 6 to 14 characters
Working log: Error log capacity	Maximum capacity: 1 M byte • At least 4800 logs can be recorded.
Working log: Event log capacity	Maximum capacity: 4 M bytes • At least 4800 logs can be recorded. (When there is no detailed log) • At least 2 logs can be recorded. (When there is a detailed log)
Ethernet: Interface	10BASE-T, 100BASE-TX
Ethernet: Communication method	Full-duplex/half-duplex
Ethernet: Flow control	• Full-duplex: None (Does not support to the IEEE802.3x) • Half-duplex: Back pressure congestion control
Ethernet: Data transmission speed	10 Mbps (10BASE-T), 100 Mbps (100BASE-TX)
Ethernet: Transmission method	Base band
Ethernet: Number of cascaded connections	Maximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX)
Ethernet: Maximum segment length	100 m
Ethernet: Supported function	Auto-negotiation function (automatic recognition of communication speed/communication method)
CompactFlash card: Supply power voltage	3.3 V ± 5 %
CompactFlash card: Supply power capacity	Maximum 150 mA
CompactFlash card: Card size	TYPE I card
CompactFlash card: Number of installable cards	1
Number of occupied I/O points	32 points (I/O assignment: Intelligent 32 points)
Clock	The clock data is obtained from a programmable controller CPU (in multiple CPU system, CPU No.1) or the SNTP server computer.
Internal current consumption (5 V DC)	0.58 A
External dimensions: Height	98 mm
External dimensions: Width	27.4 mm
External dimensions: Depth	90 mm
Weight	0.15 kg

Specifications

General specifications

Refer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MES Interface Module User's Manual (SH-080644ENG-AC)	PDF · 9.88MB
Before Using the Product (BCN-P5999-0903E-C)	PDF · 0.13MB
