Mitsubishi Electric QJ61BT11

Mitsubishi MELSEC-Q Series CC-Link

MPN
QJ61BT11
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QJ61BT11 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

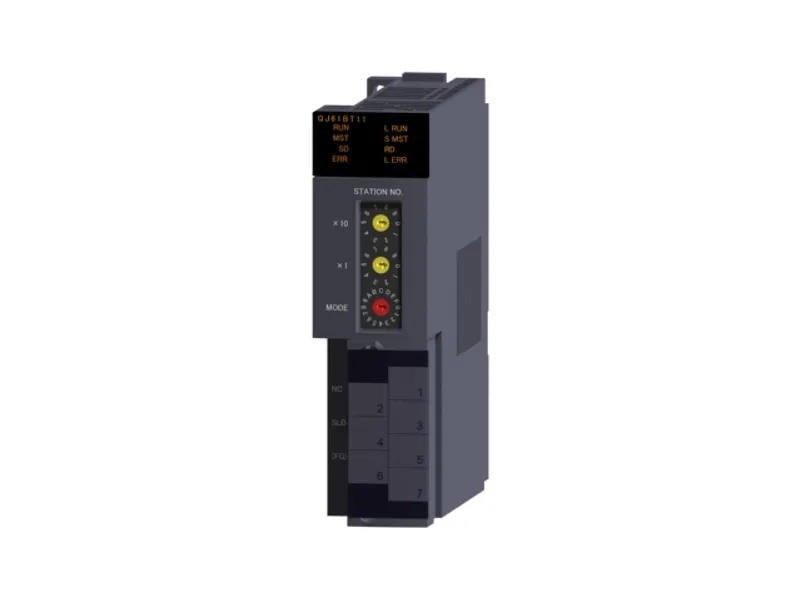

What is the Mitsubishi Electric QJ61BT11?

The Mitsubishi Electric QJ61BT11 is a CC-Link in the MELSEC-Q Series. CC-Link manager/local station. Mitsubishi Electric has discontinued it (2004/01 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryCC-Link
Sales status2004/01 Discontinued (Mitsubishi Electric)
OutlineCC-Link manager/local station

Specifications

Transmission speed156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 156 kbps1200 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 625 kbps900 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 2.5 Mbps400 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 5 Mbps160 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 10 Mbps100 m
Station typeManager station (Ver. 1 manager station) Local station (Ver. 1 local station)
Maximum number of connected stations: Manager station64
Number of occupied stations: Local station1...4 stations
Maximum number of link points per system: CC-Link Ver.1Remote I/O (RX, RY) : 2048 points Remote register (RWw) : 256 points Remote register (RWr) : 256 points
Number of link points per station: CC-Link Ver.1Remote I/O (RX, RY) : 32 points (local station is 30 points) Remote register (RWw) : 4 points Remote register (RWr) : 4 points
Communication methodBroadcast polling method
Synchronization methodFrame synchronization method
Encoding methodNRZI method
Network topologyBus (RS-485)
Transmission formatHDLC compliant
Error control systemCRC (X 16 + X 12 + X 5 + 1)
Communication cableVer.1.10 compatible CC-Link dedicated cable CC-Link dedicated cable (Ver.1.00 compatible) CC-Link dedicated high-performance cable (Ver.1.00 compatible)
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.46 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.12 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QJ61BT11: frequently asked questions

Can I still buy the QJ61BT11 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QJ61BT11, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QJ61BT11 be shipped?

QJ61BT11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ61BT11 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ61BT11 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ61BT11, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

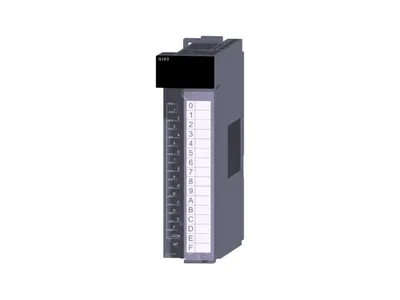

Mitsubishi Electric QI60 – Mitsubishi MELSEC-Q Series Interrupt input
