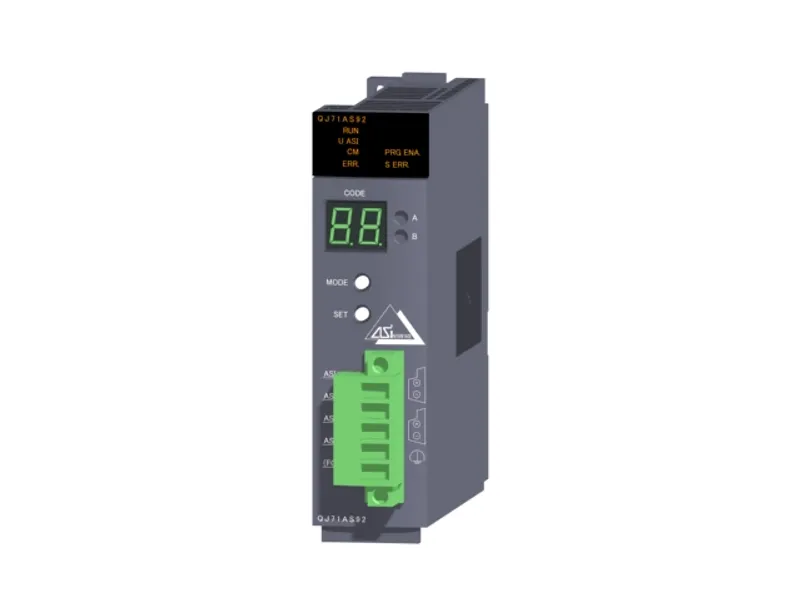

Mitsubishi Electric QJ71AS92

Mitsubishi MELSEC-Q Series AS-i

MPN
QJ71AS92
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ71AS92?

The Mitsubishi Electric QJ71AS92 is a AS-i in the MELSEC-Q Series. AS-Interface Specification Version 2.11 compatible master station. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryAS-i
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineAS-Interface Specification Version 2.11 compatible master station

Specifications

Maximum number of AS-i slaves62 (Group A: 31, Group B: 31)
Max. number of I/O points (1 point = 1 bit): Input248 points
Max. number of I/O points (1 point = 1 bit): Output248 points
Maximum address of analog I/O points (1 point = 16 bits): Input124 points
Maximum address of analog I/O points (1 point = 16 bits): Output124 points
I/O refresh timeApprox. 5 ms (without I/O slave grouping) Approx. 10 ms (with I/O slave grouping) Approx. 35 ms (per analog slave channel)
Communication speed167 kbps
Transmission distanceMaximum 100 m (maximum 300 m with two repeaters)
Connection typeBus network type (star, line, tree and ring)
Communication methodAPM modulation method (Alternating Pulse Modulation)
Error control systemParity check
Internal memoryE 2 PROM (for parameter registration), number of writes: 100000 times
Connection cableUse dedicated AS-i cable.
External power supply: VoltageTYP. 30.5 V DC (supplied by AS-i power supply)
External power supply: Current46 mA (TYP. 30.5 V DC)
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.40 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.12 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QJ71AS92: frequently asked questions

When can QJ71AS92 be shipped?

QJ71AS92 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ71AS92 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ71AS92 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ71AS92, subject to availability and destination.
