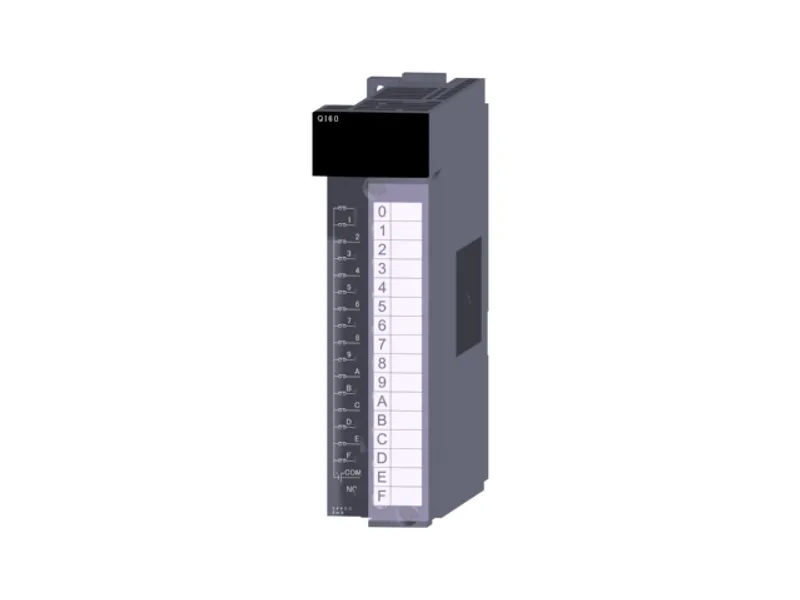

Mitsubishi Electric QI60

Mitsubishi MELSEC-Q Series Interrupt input

MPN
QI60
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QI60?

The Mitsubishi Electric QI60 is a interrupt input in the MELSEC-Q Series. Interrupt input: 16 points, 24 V DC, 6 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 16 points/common, positive common type, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryInterrupt input
TypeDC input (positive common)
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineInterrupt input: 16 points, 24 V DC, 6 mA, response time: 0.1/0.2/0.4/0.6/1 ms, 16 points/common, positive common type, 18-point terminal block

Input specifications

Input typeDC input (positive common type)
Number of input points16 points
Rated input voltage24 V DC (+20/-15 %, ripple ratio within 5 %)
Rated input currentApprox. 6 mA
Maximum number of simultaneous input points100 %
ON voltage/ON current19 V or more/4 mA or more
OFF voltage/OFF current11 V or less/1.7 mA or less
Input resistanceApprox. 3.9 kΩ
Input response time: Response time setting0.1 ms, 0.2 ms, 0.4 ms, 0.6 ms, 1 ms
Input response time: OFF to ON0.05 ms, 0.15 ms, 0.30 ms, 0.55 ms, 1.05 ms
Input response time: ON to OFF0.15 ms, 0.20 ms, 0.35 ms, 0.60 ms, 1.10 ms
Input common terminal arrangement16 points/common

Common specifications

Isolation methodPhotocoupler
Dielectric withstand voltage560 V AC rms/3 cycles (altitude 2000 m)
Insulation resistance10 MΩ or higher by insulation resistance tester
Protection degreeIP2X
Operation indicationON indication (LED)
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Interrupt 16 points)
Interrupt processing conditionSet by setting the CPU parameter switch.
Internal current consumption (5 V DC)60 mA (TYP. all points ON)
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QI60: frequently asked questions

When can QI60 be shipped?

QI60 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QI60 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QI60 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QI60, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

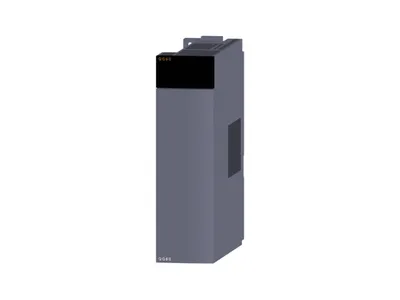

Mitsubishi Electric QG60 – Mitsubishi MELSEC-Q Series Option
Mitsubishi Electric
QG60

Mitsubishi MELSEC-Q Series Option

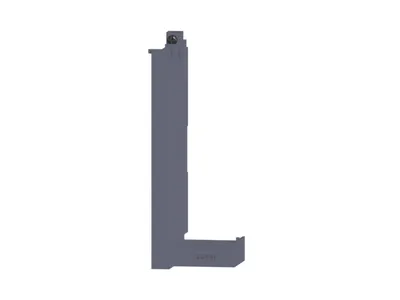

Mitsubishi Electric QG69L – Mitsubishi MELSEC-Q Series Option
Mitsubishi Electric
QG69L

Mitsubishi MELSEC-Q Series Option

Mitsubishi Electric QG69LS – Mitsubishi MELSEC-Q Series Option
Mitsubishi Electric
QG69LS

Mitsubishi MELSEC-Q Series Option

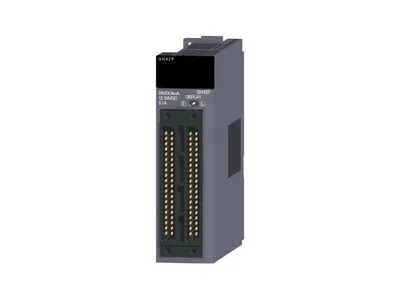

Mitsubishi Electric QH42P – Mitsubishi MELSEC-Q Series I/O
