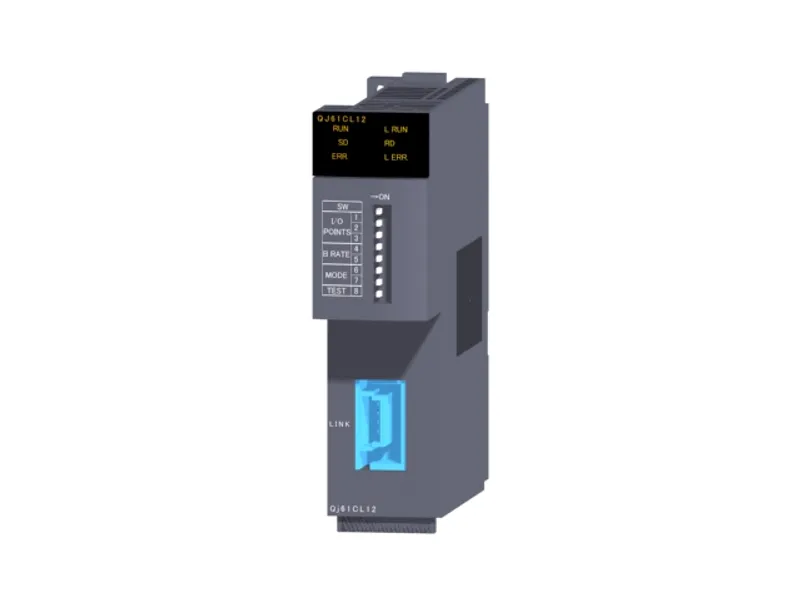

QJ61CL12 Mitsubishi MELSEC-Q Series CC-Link/LT
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QJ61CL12 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-Q Series – Information/network |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the QJ61CL12 now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the QJ61CL12, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can QJ61CL12 be shipped?
QJ61CL12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up QJ61CL12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for QJ61CL12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ61CL12, subject to availability and destination.
The Mitsubishi Electric QJ61CL12 is a CC-Link/LT in the MELSEC-Q Series. CC-Link/LT manager station. Mitsubishi Electric has discontinued it (2025/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | CC-Link/LT |
| Sales status | 2025/03 Discontinued (Mitsubishi Electric) |
| Outline | CC-Link/LT manager station |
Control specifications
| Point mode | 4-point mode, 8-point mode, 16-point mode |
| Maximum link points (the same I/O address used): 4-point mode | 256 points (512 points) |
| Maximum link points (the same I/O address used): 8-point mode | 512 points (1024 points) |
| Maximum link points (the same I/O address used): 16-point mode | 1024 points (2048 points) |
| Link points per station (the same I/O address used): 4-point mode | 4 points (8 points) |
| Link points per station (the same I/O address used): 8-point mode | 8 points (16 points) |
| Link points per station (the same I/O address used): 16-point mode | 16 points (32 points) |
| Link scan time: 32 stations connected: 4-point mode | Points: 128 points 2.5 Mbps: 0.7 ms 625 kbps: 2.2 ms 156 kbps: 8.0 ms |
| Link scan time: 32 stations connected: 8-point mode | Points: 256 points 2.5 Mbps: 0.8 ms 625 kbps: 2.7 ms 156 kbps: 10.0 ms |
| Link scan time: 32 stations connected: 16-point mode | Points: 512 points 2.5 Mbps: 1.0 ms 625 kbps: 3.8 ms 156 kbps: 14.1 ms |
| Link scan time: 64 stations connected: 4-point mode | Points: 256 points 2.5 Mbps: 1.2 ms 625 kbps: 4.3 ms 156 kbps: 15.6 ms |
| Link scan time: 64 stations connected: 8-point mode | Points: 512 points 2.5 Mbps: 1.5 ms 625 kbps: 5.4 ms 156 kbps: 20.0 ms |
| Link scan time: 64 stations connected: 16-point mode | Points: 1024 points 2.5 Mbps: 2.0 ms 625 kbps: 7.4 ms 156 kbps: 27.8 ms |
Communication specifications
| Transmission speed | 2.5 Mbps/625 kbps/156 kbps |
| Communication method | BITR method (Broadcastpolling + Interval Timed Response) |
| Network topology | T-branch type |
| Error control system | CRC |
| Number of connectable modules | 64 |
| Remote station number | 1...64 |
| Installation position of manager station | End of a trunk line |
| Communication cable | Dedicated flat cable (0.75mm 2 ×4), VCTF cable, flexible cable |
Module specifications
| External power supply: Voltage | 20.4...28.8 V DC |
| External power supply: Current | 0.028 A |
| External power supply: Current on startup | 0.070 A |
| Number of occupied I/O points | 16, 32, 48, 64, 128, 256, 512, or 1024 points (I/O assignment: Intelligent) |
| Internal current consumption (5 V DC) | 0.13 A |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 27.4 mm |
| External dimensions: Depth | 90 mm |
| Weight | 0.09 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| CC-Link/LT Master Module User's Manual (SH-080351E-I) | PDF · 3.99MB |
| Before Using the Product (BCN-P5814E-E) | PDF · 0.12MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestQJ51AW12D2 Mitsubishi MELSEC-Q Series AnyWire
Available on requestQJ61B Mitsubishi MELSEC-A Network / communication module

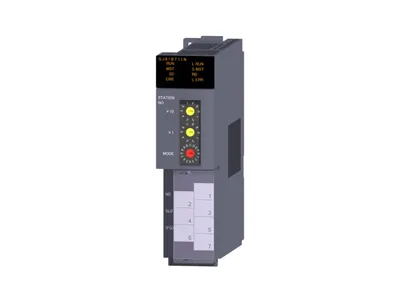

Available on requestQJ61BT11 Mitsubishi MELSEC-Q Series CC-Link
