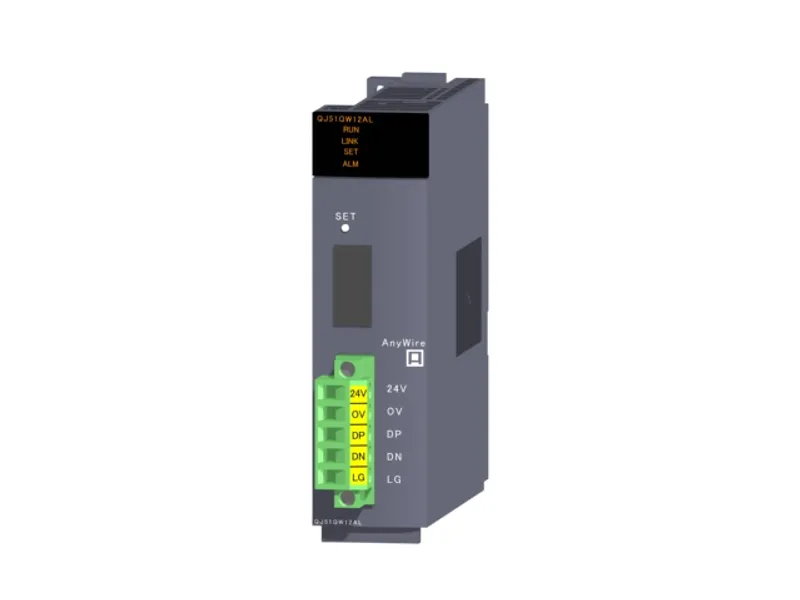

Mitsubishi Electric QJ51AW12AL

Mitsubishi MELSEC-Q Series AnyWire

MPN
QJ51AW12AL
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QJ51AW12AL?

The Mitsubishi Electric QJ51AW12AL is a anyWire in the MELSEC-Q Series. Master station, AnyWireASLINK system compatible, powered by Anywire. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryAnyWire
TypeAnyWireASLINK
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineMaster station, AnyWireASLINK system compatible, powered by Anywire

Specifications

Transmission clock27.0 kHz
Maximum transmission distance (total length)200 m
Number of connectable modulesUp to 128 (varies depending on the current consumption of each remote module)
Transmission systemDC power supply transmission total frame cyclic system
Connection typeBus topology (multidrop system, T-branch system, tree branch system, star topology)
Transmission protocolDedicated protocol (AnyWireASLINK)
Error control systemChecksum, double-check system
Number of connected I/O pointsUp to 512 points (input: 256 points/output: 256 points)
Transmission cable (DP, DN)• UL-listed general-purpose 2-wire cable (VCTF, VCT 1.25 mm 2 , 0.75 mm 2 , rated temperature 70 ˚C or higher) • UL-listed general-purpose wire (1.25 mm 2 , 0.75 mm 2 , rated temperature 70 ˚C or higher) • Dedicated flat cable (1.25 mm 2 , 0.75 mm 2 , rated temperature 90 ˚C)
Power cable (24V, 0V)• UL-listed general-purpose 2-wire cable (VCTF, VCT 0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • UL-listed general-purpose wire (0.75...2.0 mm 2 , rated temperature 70 ˚C or higher) • Dedicated flat cable (1.25 mm 2 , 0.75 mm 2 , rated temperature 90 ˚C)
External power supply: Voltage21.6...27.6 V DC (24 V DC, -10...+15 %), ripple voltage 0.5 Vp-p or lower Recommended voltage: 26.4 V (24 V DC, +10 %)
External power supply: Current0.1 A
Transmission cable supply currentWhen using 1.25 mm 2 cable: Up to 2A When using 0.75 mm 2 cable: Up to 1.2A
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.20 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth100 mm
Weight0.2 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

QJ51AW12AL: frequently asked questions

When can QJ51AW12AL be shipped?

QJ51AW12AL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QJ51AW12AL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QJ51AW12AL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QJ51AW12AL, subject to availability and destination.
