What is the Mitsubishi Electric QD72P3C3?

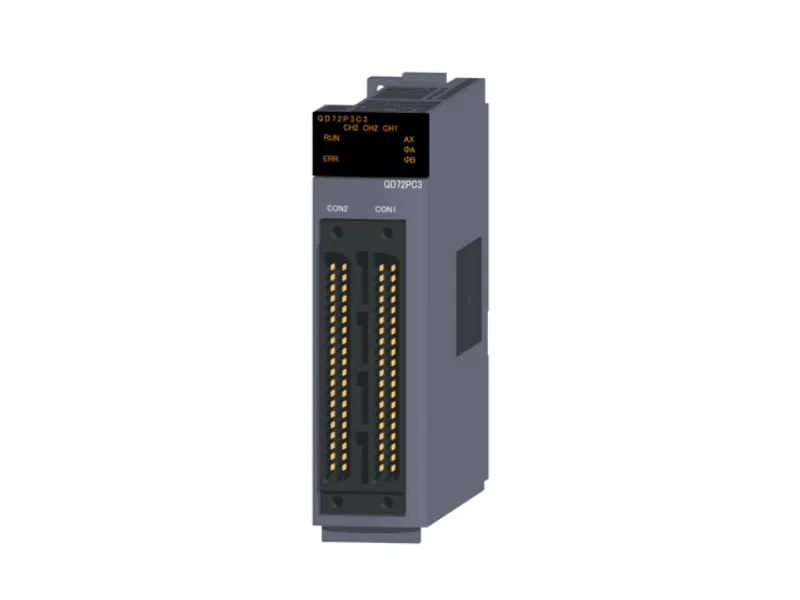

The Mitsubishi Electric QD72P3C3 is a positioning in the MELSEC-Q Series. Positioning control: 3 axes, control unit: pulse, number of positioning data: 1/axis, maximum output pulse: 100 kpps, open collector output counter: 3 channels, 100 kpps, count input signal: 5/24 V DC, 40-pin connector x 2. Mitsubishi Electric has discontinued it (2021/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryPositioning
TypeBuilt-in counter function type
SubtypeOpen collector output
Sales status2021/09 Discontinued (Mitsubishi Electric)
OutlinePositioning control: 3 axes, control unit: pulse, number of positioning data: 1/axis, maximum output pulse: 100 kpps, open collector output counter: 3 channels, 100 kpps, count input signal: 5/24 V DC, 40-pin connector x 2

Specifications

No. of control axes3 axes
Interpolation functionNone (Artificial linear interpolation by concurrent start is available.)
Control methodPTP (Point To Point) control, speed control
Control unitpulse
Positioning data1 data /axis
Data backupNone
Positioning: Positioning system: PTP controlIncremental system/absolute system
Positioning: Positioning range: In absolute system・ -1073741824...1073741823 pulse (when using linear counter) ・ 0...1073741823 pulse (when using ring counter)
Positioning: Positioning range: In incremental system・ -1073741824...1073741823 pulse
Positioning: Speed command1...100000 pulse/s
Positioning: Acceleration/deceleration processTrapezoidal acceleration/deceleration
Positioning: Acceleration/deceleration time1...5000 ms
Starting time: Position control, speed control: 1-axis start1 ms
Starting time: Position control, speed control: 3-axes simultaneous start1 ms
Pulse output systemOpen collector output system
Maximum output pulse100k pulse/s
Maximum connection distance between drive units2 m
Counter function: Number of channels3 channels
Counter function: Counting speed (maximum)100k pulse/s
Counter function: Counting range31-bit signed binary [Linear counter] -1073741824...1073741823 [Ring counter] 0...1073741823
External interface40-pin connector × 2
External interface: Applicable connectorA6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points32 points (I/O assignment: Intelligent 32 points)
Internal current consumption (5 V DC)0.57 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth90 mm
Weight0.16 kg
