QD70D8 Mitsubishi MELSEC-Q Series Positioning

MPN: QD70D8 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – Simple motion/positioning
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can QD70D8 be shipped?

QD70D8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QD70D8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QD70D8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QD70D8, subject to availability and destination.

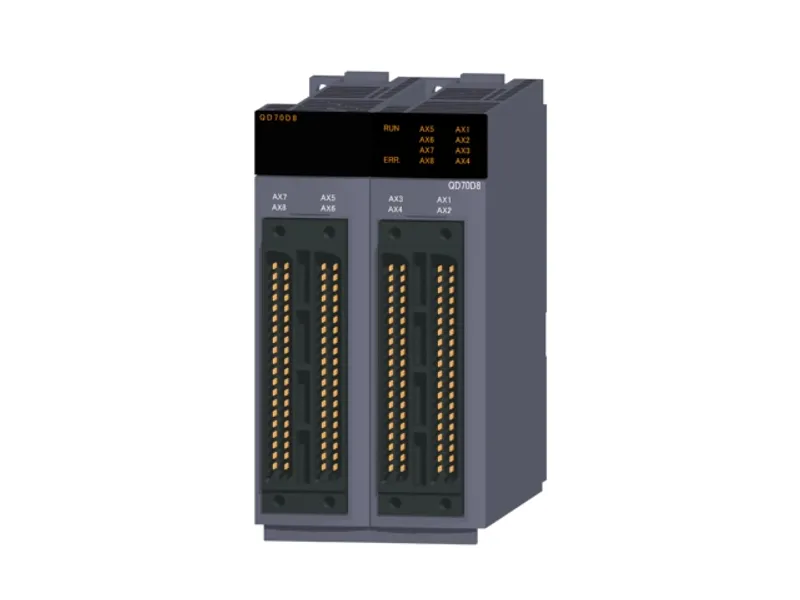

The Mitsubishi Electric QD70D8 is a positioning in the MELSEC-Q Series. 8 axes, control unit: pulse, number of positioning data: 10/axis, max. output pulse, 4 Mpps, 40-pin connector x 4, differential driver output. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Positioning
Type	Simple control and fast-response type
Subtype	Differential output
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	8 axes, control unit: pulse, number of positioning data: 10/axis, max. output pulse, 4 Mpps, 40-pin connector x 4, differential driver output

Specifications

No. of control axes	8 axes
Interpolation function	None
Control method	PTP (Point To Point) control, path control (linear only), speed-position switching control
Control unit	pulse
Positioning data	10 data /axis
Data backup	None
Positioning: Positioning system: PTP control	Incremental system/absolute system
Positioning: Positioning system: Speed-position switching control	Incremental system
Positioning: Positioning system: Path control	Incremental system/absolute system
Positioning: Positioning range: In absolute system	･ -2147483648...2147483647 pulse
Positioning: Positioning range: In incremental system	･ -2147483648...2147483647 pulse
Positioning: Positioning range: Speed-position switching control	･ 0...2147483647 pulse
Positioning: Speed command	0...4000000 pulse/s
Positioning: Acceleration/deceleration process	Trapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Positioning: Acceleration/deceleration time	0...32767 ms
Starting time: Position control: 1-axis start	0.1 ms
Starting time: Position control: 8-axes simultaneous start	0.4 ms
Pulse output system	Differential driver output system
Maximum output pulse	4M pulse/s
Maximum connection distance between drive units	10 m
External interface	40-pin connector × 4
External interface: Applicable connector	A6CON1, A6CON2, A6CON4 (sold separately)
Number of occupied I/O points	48 points, 2 slots (I/O assignment: Empty 16 points + Intelligent 32 points)
Internal current consumption (5 V DC)	2.16 A
External dimensions: Height	98 mm
External dimensions: Width	55.2 mm
External dimensions: Depth	90 mm
Weight	0.23 kg
