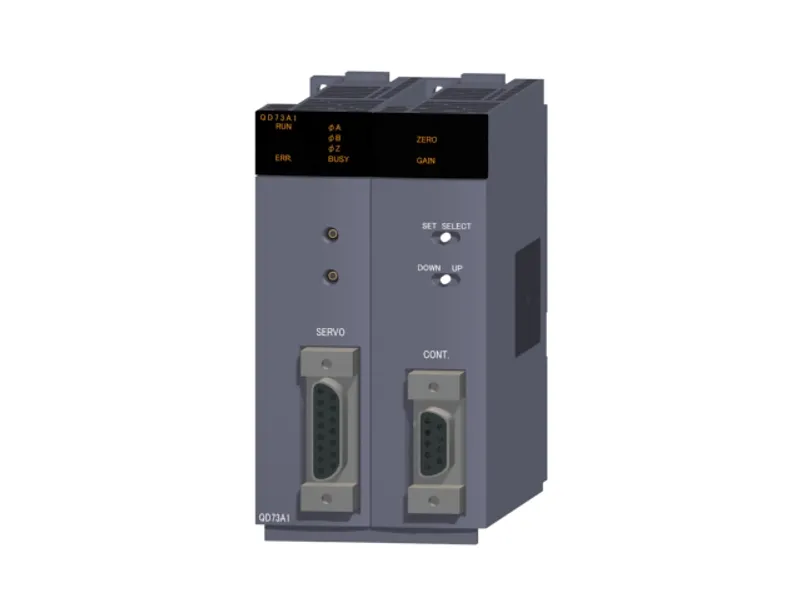

What is the Mitsubishi Electric QD73A1?

The Mitsubishi Electric QD73A1 is a positioning in the MELSEC-Q Series. 1 axis, number of positioning data: 1 data/axis, analog output. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryPositioning
TypeAnalog output type
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline1 axis, number of positioning data: 1 data/axis, analog output

Specifications

No. of control axes1 axis
Positioning data1 data
Positioning: ModePosition control mode Speed-position switching control mode
Positioning: Positioning systemPosition control mode: Selectable from absolute system or incremental system Speed-position switching control mode: Incremental system
Positioning: Positioning units-2147483648...2147483647 pulse (32-bit signed binary)
Positioning: Speed command1...4000000 pulse/s
Positioning: Acceleration/deceleration processAutomatic trapezoidal acceleration/deceleration
Positioning: Acceleration/deceleration timesAcceleration: 2...9999 ms Deceleration: 2...9999 ms
Positioning: In-position range1...20479 pulse
Positioning: Backlash compensationNone
Positioning: Error compensationNone
Starting timeAbsolute system: 1.2 ms (same for two-phase trapezoidal positioning) Incremental system: 1.2 ms (same for two-phase trapezoidal positioning) JOG operation: 1.2 ms OPR (near-point dog method): 1.2 ms OPR (count method): 1.2 ms
Speed command output0...±10 V DC (Adjustable to set in the range of ±5 to ±10 V DC)
Positioning feedback pulse input: Pulse frequencyOpen collector: 200k pulse/s TTL: 200k pulse/s Differential output: 1M pulse/s
Positioning feedback pulse input: Connectable encoder typeOpen collector, TTL, or differential output
Positioning feedback pulse input: Multiplication settingThe number of input feedback pulses can be multiplied by 4, 2, 1, or 1/2.
OPR control・ With OPR address change ・ An OPR method and OPR direction can be set through the switch setting.
JOG operationJOG operation can be started by inputting a JOG start signal.
M functionNone
External power supplyNone
Number of occupied I/O points48 points, 2 slots (I/O assignment: Empty 16 points + Intelligent 32 points)
Internal current consumption (5 V DC)0.52 A
External dimensions: Height98 mm
External dimensions: Width55.2 mm
External dimensions: Depth90 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
