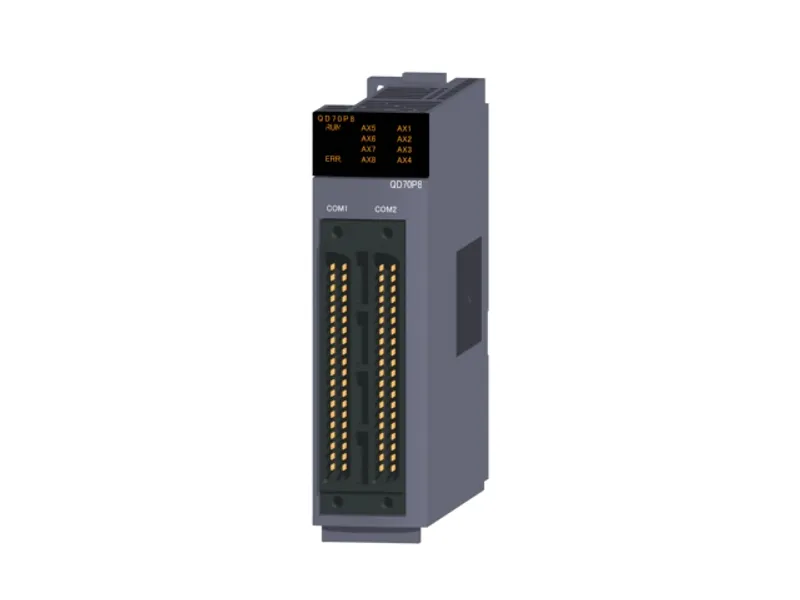

QD70P8 Mitsubishi MELSEC-Q Series Positioning
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-Q Series – Simple motion/positioning |
| Lifecycle | Active mature |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can QD70P8 be shipped?
QD70P8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up QD70P8 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for QD70P8 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QD70P8, subject to availability and destination.
The Mitsubishi Electric QD70P8 is a positioning in the MELSEC-Q Series. 8 axes, control unit: pulse, number of positioning data: 10/axis, max. output pulse: 200 kpps, 40-pin connector x 2, open collector output. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Positioning |
| Type | Simple control and fast-response type |
| Subtype | Open collector output |
| Sales status | 2029/09 To be end of order (Mitsubishi Electric) |
| Outline | 8 axes, control unit: pulse, number of positioning data: 10/axis, max. output pulse: 200 kpps, 40-pin connector x 2, open collector output |
Specifications
| No. of control axes | 8 axes |
| Interpolation function | None |
| Control method | PTP (Point To Point) control, path control (linear only), speed-position switching control |
| Control unit | pulse |
| Positioning data | 10 data /axis |
| Data backup | None |
| Positioning: Positioning system: PTP control | Incremental system/absolute system |
| Positioning: Positioning system: Speed-position switching control | Incremental system |
| Positioning: Positioning system: Path control | Incremental system/absolute system |
| Positioning: Positioning range: In absolute system | ･ -2147483648...2147483647 pulse |
| Positioning: Positioning range: In incremental system | ･ -2147483648...2147483647 pulse |
| Positioning: Positioning range: Speed-position switching control | ･ 0...2147483647 pulse |
| Positioning: Speed command | 0...200000 pulse/s |
| Positioning: Acceleration/deceleration process | Trapezoidal acceleration/deceleration |
| Positioning: Acceleration/deceleration time | 0...32767 ms |
| Starting time: Position control: 1-axis start | 0.1 ms |
| Starting time: Position control: 8-axes simultaneous start | 0.4 ms |
| Pulse output system | Open collector output system |
| Maximum output pulse | 200k pulse/s |
| Maximum connection distance between drive units | 2 m |
| External power supply: Voltage | 24 V DC |
| External power supply: Current | 0.12 A |
| External interface | 40-pin connector × 2 |
| External interface: Applicable connector | A6CON1, A6CON2, A6CON4 (sold separately) |
| Number of occupied I/O points | 32 points (I/O assignment: Intelligent 32 points) |
| Internal current consumption (5 V DC) | 0.74 A |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 27.4 mm |
| External dimensions: Depth | 90 mm |
| Weight | 0.17 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| Type QD70 Positioning Module User's Manual QD70P4/QD70P8/GX Configurator-PT (SW1D5C-QPTU-E) (SH-080171-O) | PDF · 3.32MB |
| Before Using the Product (BCN-P5805) | PDF · 0.13MB |
