What is the Mitsubishi Electric QD70D4?

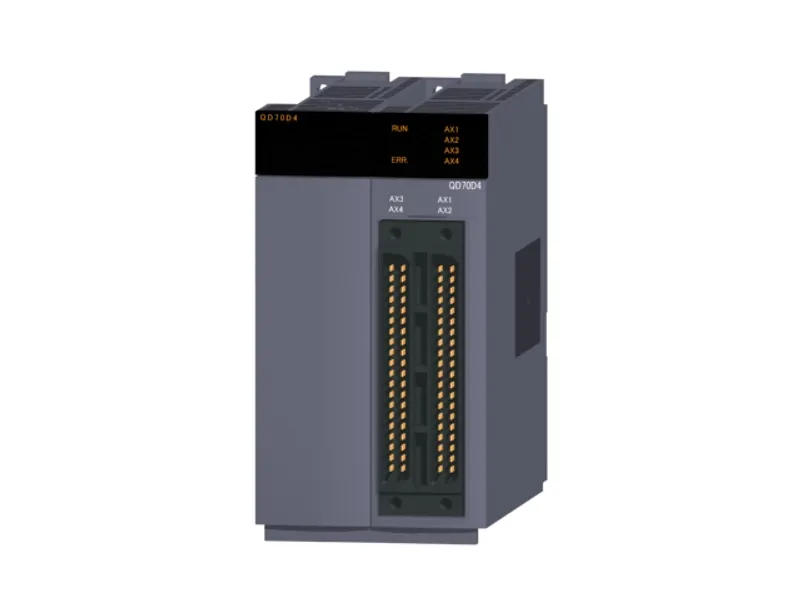

The Mitsubishi Electric QD70D4 is a positioning in the MELSEC-Q Series. 4 axes, control unit: pulse, number of positioning data: 10/axis, max. output pulse, 4 Mpps, 40-pin connector x 2, differential driver output. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Positioning |
| Type | Simple control and fast-response type |
| Subtype | Differential output |
| Outline | 4 axes, control unit: pulse, number of positioning data: 10/axis, max. output pulse, 4 Mpps, 40-pin connector x 2, differential driver output |
Specifications
| No. of control axes | 4 axes |
| Interpolation function | None |
| Control method | PTP (Point To Point) control, path control (linear only), speed-position switching control |
| Control unit | pulse |
| Positioning data | 10 data /axis |
| Data backup | None |
| Positioning: Positioning system: PTP control | Incremental system/absolute system |
| Positioning: Positioning system: Speed-position switching control | Incremental system |
| Positioning: Positioning system: Path control | Incremental system/absolute system |
| Positioning: Positioning range: In absolute system | ・ -2147483648...2147483647 pulse |
| Positioning: Positioning range: In incremental system | ・ -2147483648...2147483647 pulse |
| Positioning: Positioning range: Speed-position switching control | ・ 0...2147483647 pulse |
| Positioning: Speed command | 0...4000000 pulse/s |
| Positioning: Acceleration/deceleration process | Trapezoidal acceleration/deceleration, S-curve acceleration/deceleration |
| Positioning: Acceleration/deceleration time | 0...32767 ms |
| Starting time: Position control: 1-axis start | 0.1 ms |
| Starting time: Position control: 4-axes simultaneous start | 0.2 ms |
| Pulse output system | Differential driver output system |
| Maximum output pulse | 4M pulse/s |
| Maximum connection distance between drive units | 10 m |
| External interface | 40-pin connector × 2 |
| External interface: Applicable connector | A6CON1, A6CON2, A6CON4 (sold separately) |
| Number of occupied I/O points | 48 points, 2 slots (I/O assignment: Empty 16 points + Intelligent 32 points) |
| Internal current consumption (5 V DC) | 1.16 A |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 55.2 mm |
| External dimensions: Depth | 90 mm |
| Weight | 0.17 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
QD70D4: frequently asked questions
When can QD70D4 be shipped?
QD70D4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up QD70D4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for QD70D4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QD70D4, subject to availability and destination.
More Mitsubishi Electric (Factory Automation) parts
