Q64DAN Mitsubishi MELSEC-Q Series Analog output

MPN: Q64DAN · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – Analog
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can Q64DAN be shipped?

Q64DAN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q64DAN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q64DAN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q64DAN, subject to availability and destination.

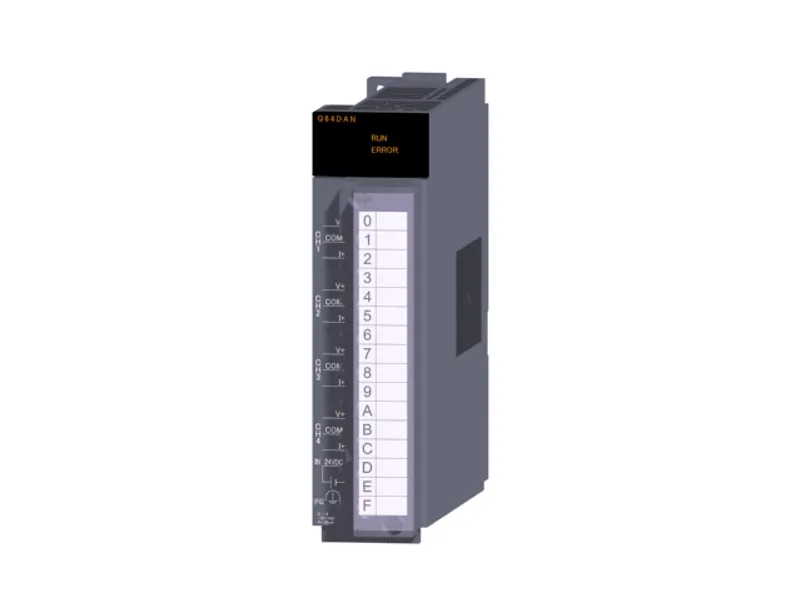

The Mitsubishi Electric Q64DAN is a analog output in the MELSEC-Q Series. 4 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Analog output
Type	Voltage/current output
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	4 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -12000...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block

Output specifications

Number of analog output points	4 points (4 channels)
Digital input	Normal resolution mode: -4096...+4095 High resolution mode: -12288...+12287, -16384...+16383
Analog output: Voltage	-10...+10 V DC (external load resistance 1 kΩ...1 MΩ)
Analog output: Current	0...20 mA DC (external load resistance 0...600 Ω)
I/O characteristics, resolution: Output range	Digital input value (maximum resolution)
I/O characteristics, resolution: Voltage output: 0...5 V	Normal resolution mode: 0...4000 (1.25 mV) High resolution mode: 0...12000 (0.416 mV)
I/O characteristics, resolution: Voltage output: 1...5 V	Normal resolution mode: 0...4000 (1.0 mV) High resolution mode: 0...12000 (0.333 mV)
I/O characteristics, resolution: Voltage output: -10...10 V	Normal resolution mode: -4000...4000 (2.5 mV) High resolution mode: -16000...16000 (0.625 mV)
I/O characteristics, resolution: Voltage output: User range setting	Normal resolution mode: -4000...4000 (0.75 mV) High resolution mode: -12000...12000 (0.333 mV)
I/O characteristics, resolution: Current output: 0...20 mA	Normal resolution mode: 0...4000 (5 µA) High resolution mode: 0...12000 (1.66 µA)
I/O characteristics, resolution: Current output: 4...20 mA	Normal resolution mode: 0...4000 (4 µA) High resolution mode: 0...12000 (1.33 µA)
I/O characteristics, resolution: Current output: User range setting	Normal resolution mode: -4000...4000 (1.5 µA) High resolution mode: -12000...12000 (0.83 µA)
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ﾟC	Within ±0.1 %
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ﾟC	Within ±0.3 %
D/A conversion speed	80 µs/channel
Absolute maximum output: Voltage	±12 V
Absolute maximum output: Current	21 mA
Output short protection	Protected

Common specifications

Isolation method	Between I/O terminals and programmable controller power supply: Photocoupler Between analog output channels: Non-isolation Between external power supply and analog output: Transformer
Dielectric withstand voltage	Between I/O terminals and programmable controller power supply, between external power supply and analog output: 500 V AC for 1 minute
Insulation resistance	Between I/O terminals and programmable controller power supply, between external power supply and analog output: 500 V DC, 20 MΩ or higher
External power supply: Voltage	24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current	0.24 A (inrush current: 4.7 A, 280 µs or lower)
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)	0.34 A
External dimensions: Height	98 mm
External dimensions: Width	27.4 mm
External dimensions: Depth	112 mm
Weight	0.20 kg
