Q64PN Mitsubishi MELSEC-Q Series Large capacity type

MPN: Q64PN · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-Q Series – Power supply
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can Q64PN be shipped?

Q64PN is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q64PN in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q64PN and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q64PN, subject to availability and destination.

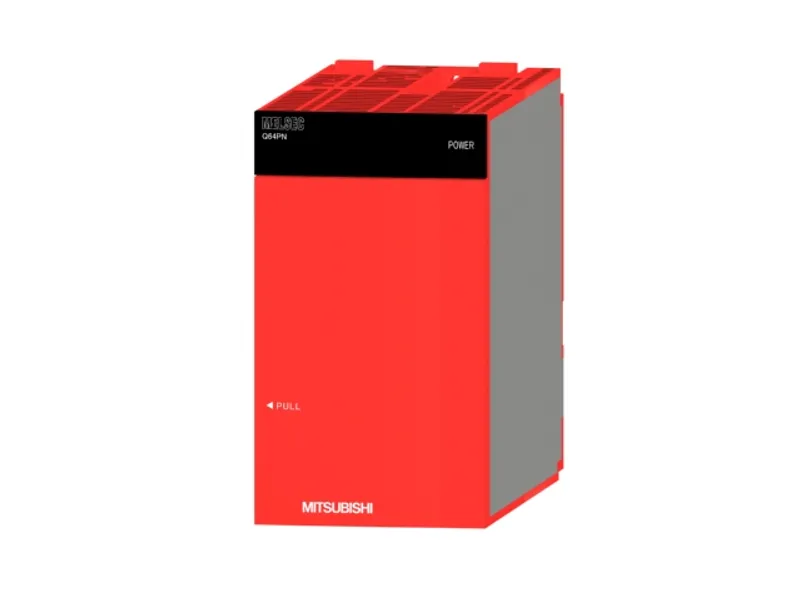

The Mitsubishi Electric Q64PN is a large capacity type in the MELSEC-Q Series. Input: 100...240 V AC, output: 5 V DC 8.5 A. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	Large capacity type
Type	AC input
Subtype	100...240 V AC input
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	Input: 100...240 V AC, output: 5 V DC 8.5 A

Specifications

Installation position	Power supply module installation slot
Applicable base unit	Q3□B, Q3□DB, Q6□B
Input power supply voltage	100...240 V AC (-15 %...+10 %)
Input frequency	50/60 Hz ±5 %
Input voltage distortion	Within 5 %
Maximum input apparent power	160 VA
Inrush current	20 A, within 8 ms
Rated output current: 5 V DC	8.5 A
Overcurrent protection: 5 V DC	9.9 A or more
Overvoltage protection: 5 V DC	5.5...6.5 V
Efficiency	70 % or more
Allowable momentary power failure time	Within 20 ms
Withstand voltage	Between the input and LG batched terminal and the output and FG batched terminal, 2300 V AC per minute (altitude 0...2000 m)
Insulation resistance	Input and LG batched, output and FG batched, batch input-LG, batch output-FG: 10 MΩ or higher by 500 VDC insulation resistance tester
Operation indication	LED (Normal: On (green), error: Off)
Fuse	Built-in (user-unchangeable)
Contact output section: Application	ERR. contact
Contact output section: Rated switching voltage/current	24 V DC, 0.5 A
Contact output section: Minimum switching load	5 V DC, 1 mA
Contact output section: Response time: OFF to ON	10 ms or less
Contact output section: Response time: ON to OFF	12 ms or less
Contact output section: Life: Mechanical	20 million times or more
Contact output section: Life: Electrical	Rated switching voltage/current load: More than 100 thousand times
Contact output section: Surge suppressor	None
Contact output section: Fuse	None
External interface	Terminal block (M3.5 screw)
External dimensions: Height	98 mm
External dimensions: Width	55.2 mm
External dimensions: Depth	115 mm
Weight	0.47 kg
