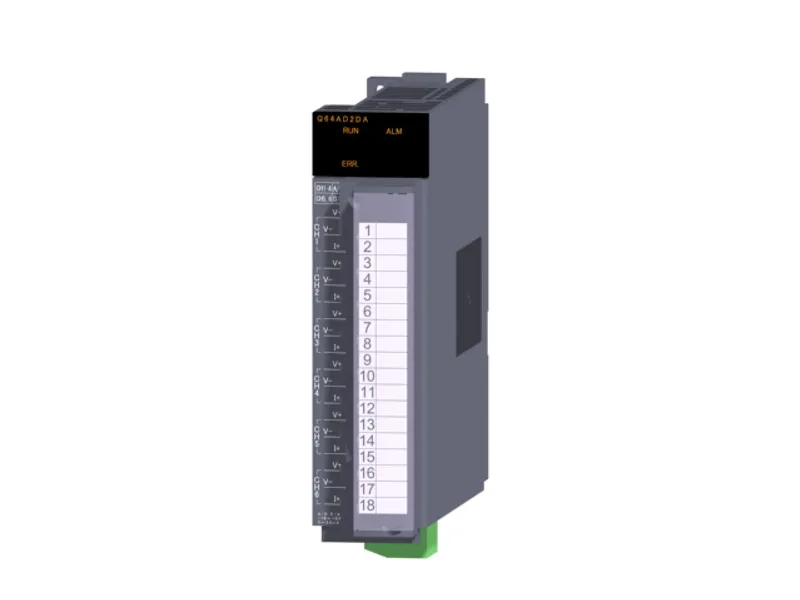

What is the Mitsubishi Electric Q64AD2DA?

The Mitsubishi Electric Q64AD2DA is a analog I/O in the MELSEC-Q Series. Analog input: 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...4000, -4000...4000, 0...12000, 0...16000, -16000...16000, conversion speed: 500 μs/channel, analog output: 2 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 500 μs/channel, 18-point terminal block, logging function. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryAnalog I/O
Sales status2029/09 To be end of order (Mitsubishi Electric)
OutlineAnalog input: 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...4000, -4000...4000, 0...12000, 0...16000, -16000...16000, conversion speed: 500 μs/channel, analog output: 2 channels, input (resolution): 0...4000, -4000...4000, 0...12000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 500 μs/channel, 18-point terminal block, logging function

Input specifications

Number of analog input points4 points (4 channels)
Analog input: Voltage-10...+10 V DC (input resistance 1 MΩ)
Analog input: Current0...20 mA DC (input resistance 250 Ω)
Digital outputNormal resolution mode: -96...+4095, -4096...+4095, -1096...+4595 High resolution mode: -384...+16383, -288...+12287, -16384...+16383, -3288...+13787
I/O characteristics, resolution: Input rangeDigital output value (maximum resolution)
I/O characteristics, resolution: Voltage input: 0...10 VNormal resolution mode: 0...4000 (2.5 mV) High resolution mode: 0...16000 (0.625 mV)
I/O characteristics, resolution: Voltage input: 0...5 VNormal resolution mode: 0...4000 (1.25 mV) High resolution mode: 0...12000 (0.416 mV)
I/O characteristics, resolution: Voltage input: 1...5 VNormal resolution mode: 0...4000 (1.0 mV) High resolution mode: 0...12000 (0.333 mV)
I/O characteristics, resolution: Voltage input: 1...5 V (extended mode)Normal resolution mode: -1000...4500 (1.0 mV) High resolution mode: -3000...13500 (0.333 mV)
I/O characteristics, resolution: Voltage input: -10...10 VNormal resolution mode: -4000...4000 (2.5 mV) High resolution mode: -16000...16000 (0.625 mV)
I/O characteristics, resolution: Current input: 0...20 mANormal resolution mode: 0...4000 (5 µA) High resolution mode: 0...12000 (1.66 µA)
I/O characteristics, resolution: Current input: 4...20 mANormal resolution mode: 0...4000 (4 µA) High resolution mode: 0...12000 (1.33 µA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)Normal resolution mode: -1000...4500 (4 µA) High resolution mode: -3000...13500 (1.33 µA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ゚C±0.1 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ゚C±0.4 %
A/D conversion speed500 µs/channel
Absolute maximum input: Voltage±15 V
Absolute maximum input: Current±30 mA

Output specifications

Number of analog output points2 points (2 channels)
Digital inputNormal resolution mode: -96...+4095, -4096...+4095 High resolution mode: -288...+12287, -16384...+16383
Analog output: Voltage-10...+10 V DC (external load resistance 1 MΩ)
Analog output: Current0...20 mA DC (external load resistance 600 Ω)
I/O characteristics, resolution: Output rangeDigital input value (maximum resolution)
I/O characteristics, resolution: Voltage output: 0...5 VNormal resolution mode: 0...4000 (1.25 mV) High resolution mode: 0...12000 (0.416 mV)
I/O characteristics, resolution: Voltage output: 1...5 VNormal resolution mode: 0...4000 (1.0 mV) High resolution mode: 0...12000 (0.333 mV)
I/O characteristics, resolution: Voltage output: -10...10 VNormal resolution mode: -4000...4000 (2.5 mV) High resolution mode: -16000...16000 (0.625 mV)
I/O characteristics, resolution: Current output: 0...20 mANormal resolution mode: 0...4000 (5 µA) High resolution mode: 0...12000 (1.66 µA)
I/O characteristics, resolution: Current output: 4...20 mANormal resolution mode: 0...4000 (4 µA) High resolution mode: 0...12000 (1.33 µA)
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ゚C±0.1 %
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ゚C±0.3 %
D/A conversion speed500 µs/channel
Absolute maximum output: Voltage±12 V
Absolute maximum output: Current21 mA
Output short protectionProtected

Common specifications

Isolation methodBetween I/O terminals and programmable controller power supply: photocoupler isolation
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply: 500 V AC rms for 1 minute
Insulation resistanceBetween I/O terminals and programmable controller power supply: 500 V DC 20 MΩ or higher
External power supply: Voltage24 V DC (+15/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current0.19 A (inrush current: 4.1 A, 180 µs or lower)
External interfaceA/D conversion area, D/A conversion area: 18-point terminal block (M3 screws) External power supply 24VDC, FG terminal connection: External power supply connector
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.17 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth112 mm
Weight0.23 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q64AD2DA: frequently asked questions

When can Q64AD2DA be shipped?

Q64AD2DA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q64AD2DA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q64AD2DA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q64AD2DA, subject to availability and destination.
