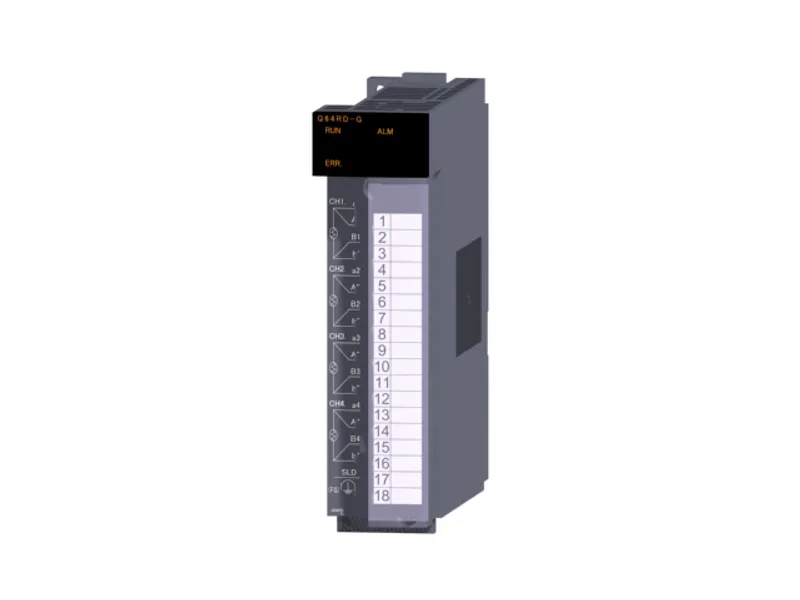

Mitsubishi Electric Q64RD-G
Mitsubishi MELSEC-Q Series Temperature input
- MPN
- Q64RD-G
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric Q64RD-G?
The Mitsubishi Electric Q64RD-G is a temperature input in the MELSEC-Q Series. 4 channels, RTD (Pt100, JPt100, Ni100), conversion speed, 40 ms/channel, 18-point terminal block, channel isolated. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Temperature input |
| Type | RTD input |
| Sales status | 2029/09 To be end of order (Mitsubishi Electric) |
| Outline | 4 channels, RTD (Pt100, JPt100, Ni100), conversion speed, 40 ms/channel, 18-point terminal block, channel isolated |
Specifications
| Number of analog input points | 4 points (4 channels) |
| Number of channels | 4 channels |
| Digital output: Temperature measured value | 16-bit signed binary value (-2000...8500: value to the first decimal place × 10) 32-bit signed binary value (-200000...850000: value to the third decimal place × 1000) |
| Digital output: Scaling value | 16-bit signed binary value |
| Applicable resistance temperature detector | Pt100, JPt100, Ni100 |
| Measured temperature range: Pt100 | -200...850 ˚C |
| Measured temperature range: JPt100 | -180...600 ˚C |
| Measured temperature range: Ni100 | -60...180 ˚C |
| Range changing: Pt100 | -20...120 ˚C / 0...200 ˚C / -200...850 ˚C |
| Range changing: JPt100 | -20...120 ˚C / 0...200 ˚C / -180...600 ˚C |
| Range changing: Ni100 | ― |
| Temperature detecting output current | 1 mA |
| Resolution | 0.025 ˚C |
| Accuracy (accuracy relative to maximum value of selection range): Reference accuracy | Within ±0.04 % |
| Accuracy (accuracy relative to maximum value of selection range): Temperature coefficient: Pt100/JPt100 (-20...120 ゚C) | ±70 ppm/゚C (0.0070 %/゚C) |
| Accuracy (accuracy relative to maximum value of selection range): Temperature coefficient: Pt100/JPt100 (0...200 ゚C) | ±65 ppm/゚C (0.0065 %/゚C) |
| Accuracy (accuracy relative to maximum value of selection range): Temperature coefficient: Pt100/JPt100 (-200...850 ゚C) | ±50 ppm/゚C (0.0050 %/゚C) |
| Accuracy (accuracy relative to maximum value of selection range): Temperature coefficient: Ni100 (-60...180 ゚C) | ±70 ppm/゚C (0.0070 %/゚C) |
| Conversion speed | 40 ms/channel |
| Disconnection detection | Available (each channel independent) |
| Isolation method | Between RTD input and programmable controller power supply: photocoupler isolation Between RTD input channels: transformer isolation |
| Dielectric withstand voltage | Between RTD input and programmable controller power supply, between RTD input channels: 1780 V AC rms/3 cycles (altitude 2000 m) |
| Insulation resistance | Between RTD input and programmable controller power supply, between RTD input channels: 500 V DC, 10 MΩ or higher |
| External interface | 18-point terminal block (M3 screw) |
| Number of occupied I/O points | 16 points (I/O assignment: Intelligent 16 points) |
| Internal current consumption (5 V DC) | 0.62 A |
| External dimensions: Height | 98 mm |
| External dimensions: Width | 27.4 mm |
| External dimensions: Depth | 112 mm |
| Weight | 0.20 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module. |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Q64RD-G: frequently asked questions
When can Q64RD-G be shipped?
Q64RD-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up Q64RD-G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for Q64RD-G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q64RD-G, subject to availability and destination.
