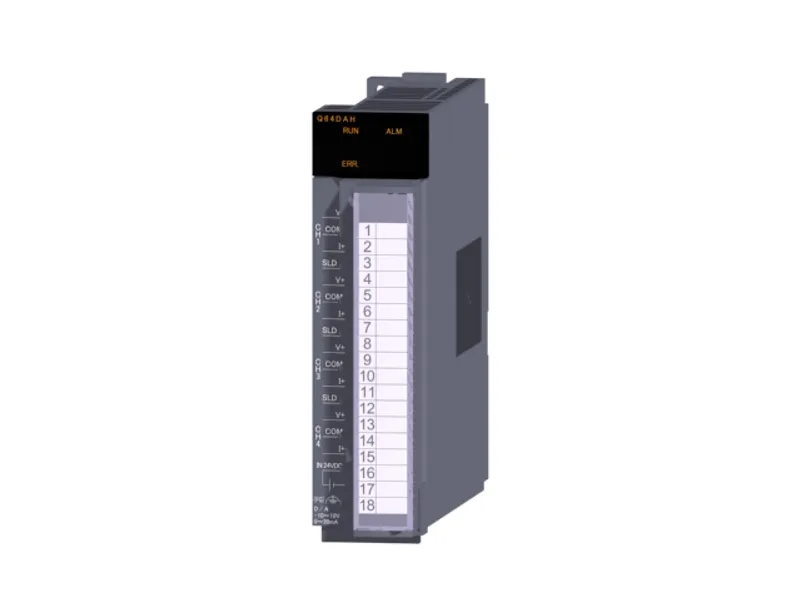

Mitsubishi Electric Q64DAH

Mitsubishi MELSEC-Q Series Analog output

MPN
Q64DAH
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q64DAH?

The Mitsubishi Electric Q64DAH is a analog output in the MELSEC-Q Series. 4 channels, input (resolution): 0...2000, -2000...20000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 20 μs/channel, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryAnalog output
TypeVoltage/current output
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline4 channels, input (resolution): 0...2000, -2000...20000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 20 μs/channel, 18-point terminal block

Output specifications

Number of analog output points4 points (4 channels)
Digital input-20480...+20479 (When the scaling function is used: -32768...32767)
Analog output: Voltage-10...+10 V DC (external load resistance 1 kΩ...1 MΩ)
Analog output: Current0...20 mA DC (external load resistance 0...600 Ω)
I/O characteristics, resolution: Output rangeDigital input value (maximum resolution)
I/O characteristics, resolution: Voltage output: 0...5 V0...20000 (250 µV)
I/O characteristics, resolution: Voltage output: 1...5 V0...20000 (200 µV)
I/O characteristics, resolution: Voltage output: -10...10 V-20000...20000 (500 µV)
I/O characteristics, resolution: Voltage output: User range setting-20000...20000 (333 µV)
I/O characteristics, resolution: Current output: 0...20 mA0...20000 (1000 nA)
I/O characteristics, resolution: Current output: 4...20 mA0...20000 (800 nA)
I/O characteristics, resolution: Current output: User range setting-20000...20000 (700 nA)
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ゚CWithin ±0.1 %
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ゚CWithin ±0.3 %
D/A conversion speedNormal output mode: 20 µs/channel Wave output mode: 50 µs/channel, 80 µs/channel
Output short protectionProtected

Common specifications

Isolation methodBetween I/O terminals and programmable controller power supply: Photocoupler Between analog output channels: Non-isolation Between external power supply and analog output: Transformer
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply, between external power supply and analog output: 500 V AC rms for 1 minute
Insulation resistanceBetween I/O terminals and programmable controller power supply: 500 V DC 10 MΩ or higher
External power supply: Voltage24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current0.18 A (inrush current: 4.7 A, 1000 µs or lower)
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.12 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth112 mm
Weight0.19 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q64DAH: frequently asked questions

When can Q64DAH be shipped?

Q64DAH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q64DAH in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q64DAH and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q64DAH, subject to availability and destination.
