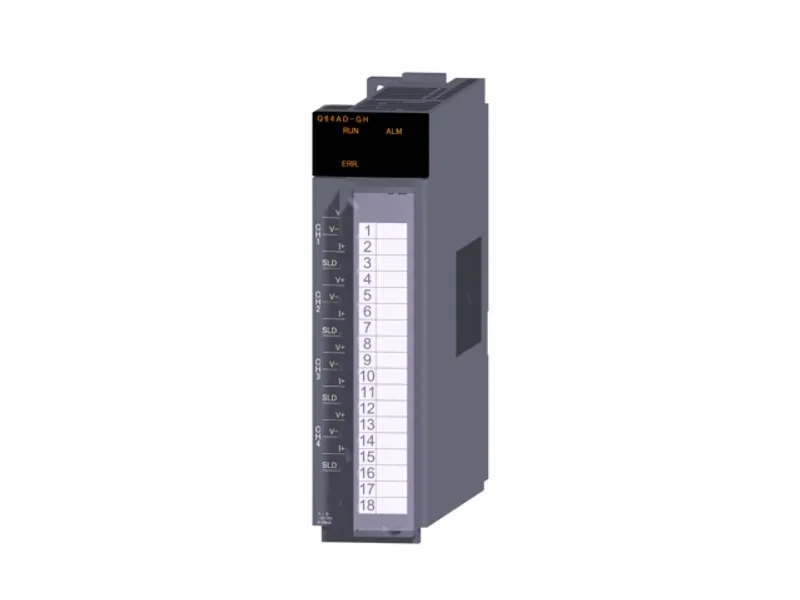

Mitsubishi Electric Q64AD-GH

Mitsubishi MELSEC-Q Series Analog input

MPN
Q64AD-GH
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q64AD-GH?

The Mitsubishi Electric Q64AD-GH is a analog input in the MELSEC-Q Series. 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...32000, -32000...32000, 0...64000, -64000...64000, conversion speed: 10 ms/4 channels, 18-point terminal block, channel isolated. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryAnalog input
TypeVoltage/current input
SubtypeChannel isolated
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...32000, -32000...32000, 0...64000, -64000...64000, conversion speed: 10 ms/4 channels, 18-point terminal block, channel isolated

Input specifications

Number of analog input points4 points (4 channels)
Analog input: Voltage-10...+10 V DC (input resistance 1 MΩ)
Analog input: Current0...20 mA DC (input resistance 250 Ω)
Digital output16-bit signed binary value: -32768...+32767 32-bit signed binary value: -65536...+65535
I/O characteristics, resolution: Input rangeDigital output value (resolution)
I/O characteristics, resolution: Voltage input: 0...10 V16-bit: 0...32000 (312.6 µV) 32-bit: 0...64000 (156.3 µV)
I/O characteristics, resolution: Voltage input: 0...5 V16-bit: 0...32000 (156.4 µV) 32-bit: 0...64000 (78.2 µV)
I/O characteristics, resolution: Voltage input: 1...5 V16-bit: 0...32000 (125.0 µV) 32-bit: 0...64000 (62.5 µV)
I/O characteristics, resolution: Voltage input: 1...5 V (extended mode)32-bit: -16000...72000 (62.5 µV)
I/O characteristics, resolution: Voltage input: -10...10 V16-bit: -32000...32000 (312.6 µV) 32-bit: -64000...64000 (156.3 µV)
I/O characteristics, resolution: Voltage input: User range setting (uni-polar)16-bit: 0...32000 (94.8 µV) 32-bit: 0...64000 (47.4 µV)
I/O characteristics, resolution: Voltage input: User range setting (bi-polar)16-bit: -32000...32000 (94.8 µV) 32-bit: -64000...64000 (47.4 µV)
I/O characteristics, resolution: Current input: 0...20 mA16-bit: 0...32000 (312.5 nA) 32-bit: 0...64000 (625.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA16-bit: 0...32000 (500.0 nA) 32-bit: 0...64000 (250.0 nA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)32-bit: -16000...72000 (250.0 nA)
I/O characteristics, resolution: Current input: User range setting (uni-polar)16-bit: 0...32000 (303.2 nA) 32-bit: 0...64000 (151.6 nA)
Accuracy (accuracy relative to maximum value of the digital output value): Reference accuracy±0.05 %
Accuracy (accuracy relative to maximum value of the digital output value): Temperature coefficient±71.4 ppm/˚C (0.00714 %/˚C)
Common mode characteristicCommon mode voltage Input-Common ground (input voltage 0 V): 1780 VAC Common mode voltage rejection ratio (VCM
A/D conversion speed10 ms/4 channels
Absolute maximum input: Voltage±15 V
Absolute maximum input: Current±30 mA

Common specifications

Isolation methodBetween I/O terminals and programmable controller power supply: photocoupler isolation Between analog input channels: transformer isolation
Dielectric withstand voltageBetween I/O terminal and programmable controller power supply, between analog input channels: 1780 V AC rms/3 cycles (altitude 2000 m)
Insulation resistanceBetween I/O terminals and programmable controller power supply, between analog input channels: 500 V DC, 10 MΩ or higher
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.89 A
External dimensions: Height98 mm
External dimensions: Width27.4 mm
External dimensions: Depth112 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.
