What is the Mitsubishi Electric NZ2GF12A-60IOLH8?

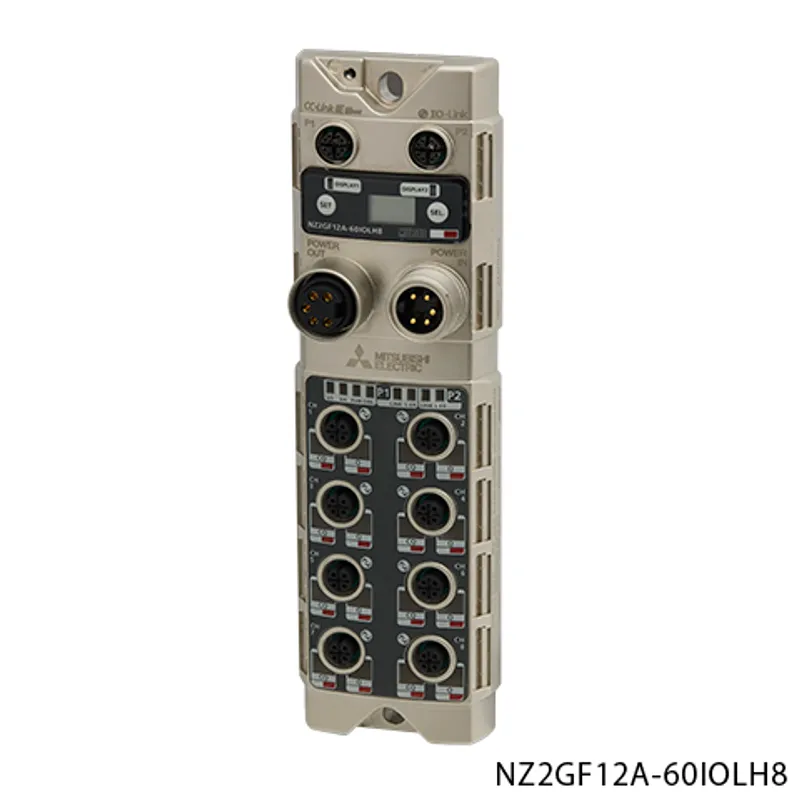

The Mitsubishi Electric NZ2GF12A-60IOLH8 is a remote I/O in the MELSEC network modules. IO-Link master function: Max. 8 channels, SIO mode function: digital input, Max. 8 points per CQ/Q, negative common, digital output, Max. 8 points per CQ/Q, source type, waterproof connecter type, Powered by BALLUFF. Mitsubishi Electric has discontinued it (2023/01 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeIO-Link
Sales status2023/01 Discontinued (Mitsubishi Electric)
OutlineIO-Link master function: Max. 8 channels, SIO mode function: digital input, Max. 8 points per CQ/Q, negative common, digital output, Max. 8 points per CQ/Q, source type, waterproof connecter type, Powered by BALLUFF

Specifications

Module type: CC-Link IE Field NetworkIntelligent device station
Module type: IO-LinkIO-Link master
Isolation methodNon-isolation
Protection degreeIP67
Common terminal arrangement1 common
Surge suppressorZener diode
FuseModule: Not available Channel: Available
Protection function: Overload protection functionOvercurrent is detectable on the CQ, Q, and L+ terminals on each channel.
External interfaceModule power supply part: 7/8" waterproof connector, 5 pins, male (IN)/female (OUT) (sold separately) I/O part: M12 waterproof connector, 5 pins, female, A-code (sold separately) Communication part: M12 waterproof connector, 8 pins, female, X-code (sold separately)
Channel settingThe following 3 modes are available. • IO-Link mode • SIO mode (digital input) (default) • SIO mode (digital output)
IO-Link mode: Supported protocolv1.12
IO-Link mode: Number of channelsMaximum 8 channels
IO-Link mode: Maximum load current: CQ500 mA/channel, 9 A/common
IO-Link mode: Maximum load current: L+1.3 A/channel, 9 A/common
IO-Link mode: Transmission speed• COM1: 4.8kbps • COM2: 38.4kbps • COM3: 230.4kbps Determined by the IO-Link device connected.
SIO mode (CQ) (digital input): Number of pointsMaximum 8 points
SIO mode (CQ) (digital input): Input typeNegative common (source type)
SIO mode (CQ) (digital input): Rated input currentIEC 61131-2 Type3
SIO mode (CQ) (digital input): Input resistanceIEC 61131-2 Type3
SIO mode (CQ) (digital input): ON voltage/ON current11 V DC or more/15 mA or more
SIO mode (CQ) (digital input): OFF voltage/OFF current5.0 V DC or less/1.5 mA or less
SIO mode (CQ) (digital input): Input response time: OFF to ON0.1 ms or less (excluding the internal processing time)
SIO mode (CQ) (digital input): Input response time: ON to OFF0.1 ms or less (excluding the internal processing time)
SIO mode (CQ) (digital output): Number of pointsMaximum 8 points
SIO mode (CQ) (digital output): Output typeSource type
SIO mode (CQ) (digital output): Maximum load current2 A/point, 9 A/common
SIO mode (CQ) (digital output): Maximum inrush current17 A (25 ˚C, 150 µs or less)
SIO mode (CQ) (digital output): Leakage current at OFF5 µA or less
SIO mode (CQ) (digital output): Maximum voltage drop at ON0.85 V DC, 2.0 A
SIO mode (CQ) (digital output): Output response time: OFF to ON80 µs or less
SIO mode (CQ) (digital output): Output response time: ON to OFF150 µs or less
SIO mode (Q) (digital input): Number of pointsMaximum 8 points
SIO mode (Q) (digital input): Input typeNegative common (source type)
SIO mode (Q) (digital input): Rated input current5 mA TYP. (24 V DC)
SIO mode (Q) (digital input): Input resistance4.8 kΩ
SIO mode (Q) (digital input): ON voltage/ON current15 V DC or more/3.5 mA or more
SIO mode (Q) (digital input): OFF voltage/OFF current3.0 V DC or less/0.5 mA or less
SIO mode (Q) (digital input): Input response time: OFF to ON1.9 ms
SIO mode (Q) (digital input): Input response time: ON to OFF1.9 ms
SIO mode (Q) (digital output): Number of pointsMaximum 8 points
SIO mode (Q) (digital output): Output typeSource type
SIO mode (Q) (digital output): Maximum load current2 A/point, 9 A/common
SIO mode (Q) (digital output): Maximum inrush current17 A (25 ˚C, 150 µs or less)
SIO mode (Q) (digital output): Leakage current at OFF5 µA or less
SIO mode (Q) (digital output): Maximum voltage drop at ON0.85 V DC, 2.0 A
SIO mode (Q) (digital output): Output response time: OFF to ON80 µs or less
SIO mode (Q) (digital output): Output response time: ON to OFF150 µs or less
Communication cableAn Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
IO-Link cable: Cable typeUnshielded
IO-Link cable: Cable length20 m maximum
IO-Link cable: Cable diameterCore 0.5...1.5 mm 2
Module/sensor power supply: Voltage24 V DC (ripple ratio: within 1 %) (allowable voltage range: 20.4...28.8 V DC) (20.4...26.4 V DC for UL listed)
Module/sensor power supply: Current300 mA or less (24 V DC, no load) 9.3 A or less (24 V DC, max. load)
Output power supply: Voltage24 V DC (ripple ratio: within 1 %) (allowable voltage range: 20.4...28.8 V DC) (20.4...26.4 V DC for UL listed)
Output power supply: Current9.3 A or less (24 V DC, max. load)
External dimensions: Height224 mm
External dimensions: Width68 mm
External dimensions: Depth38 mm
Weight0.685 kg

Specifications

Operating ambient temperature0...55 ˚C (0...40 ˚C for UL listed)
Storage ambient temperature-25...75 ˚C
Operating ambient humidityCompliant with IP67
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside/outside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass III
