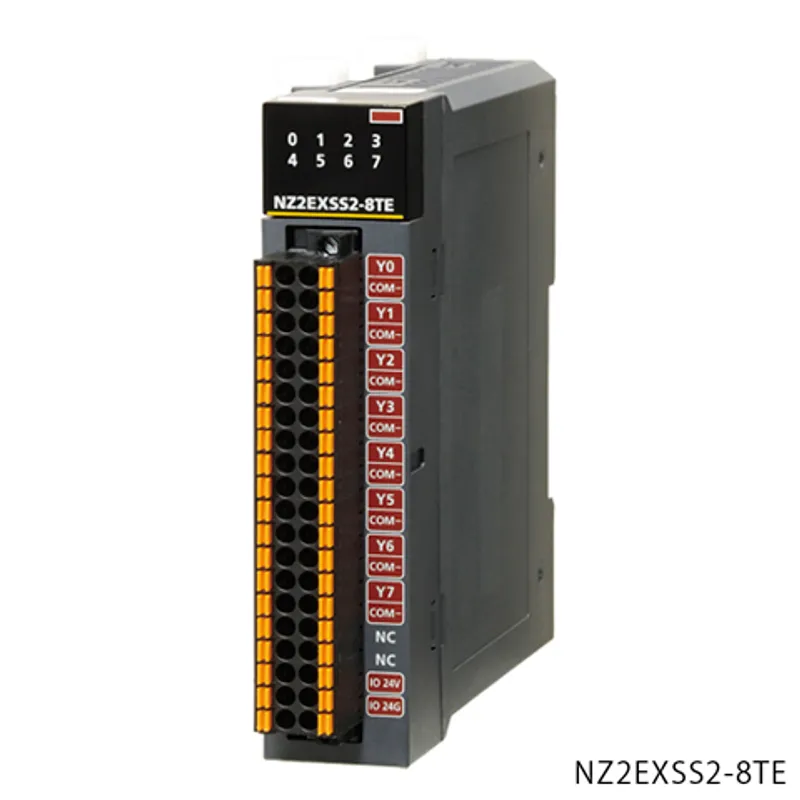

What is the Mitsubishi Electric NZ2EXSS2-8TE?

The Mitsubishi Electric NZ2EXSS2-8TE is a remote I/O in the MELSEC network modules. Transistor output: 8 points (single wiring), 4 points (double wiring) 24 V DC, 0.5 A/point, 4 A/common, response time: 0.4 ms, 8 points/common, source + source type, spring-clamp terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeSafety I/O
SubtypeOutput (extension)
OutlineTransistor output: 8 points (single wiring), 4 points (double wiring) 24 V DC, 0.5 A/point, 4 A/common, response time: 0.4 ms, 8 points/common, source + source type, spring-clamp terminal block

Specifications

Output typeSource + source type
Number of output points8 points (single wiring), 4 points (double wiring)
Rated load voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Maximum load current0.5 A/point, 4 A/common (front mounting), when any installation method other than the front mounting is performed, refer to the derating chart.
Maximum inrush current1.0 A, 10 ms or less
Leakage current at OFF0.5 mA or less
Maximum voltage drop at ON1.0 V DC or less
Output circuit response time: OFF to ON0.4 ms or less (24 V DC)
Output circuit response time: ON to OFF0.4 ms or less (24 V DC)
Safety remote station refresh response processing time2.0 ms
Output response time of safety remote stationOutput circuit response time
Surge suppressorZener diode
Protection functionOutput overload protection function
External power supply for output part: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply for output part: Current120 mA
External power supply for output part: Protection functionExternal power supply overvoltage protection function, external power supply overcurrent protection function
External power supply for output part: Fuse8 A (user-unchangeable)
Output common terminal arrangement8 points/common (spring clamp terminal block type)
Common currentMaximum 4 A
Output isolation methodPhotocoupler
Dielectric withstand voltageBetween all DC external terminals and ground: 500 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Cyclic transmission: RX/RY points0 points (use the points secured by the main module)
Cyclic transmission: SA\X/SA\Y points0 points (use the points secured by the main module)
Module power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current20 mA
External interfaceOutput part, external power supply part: 40-point two-piece spring clamp terminal block (push-in)
External dimensions: Height100 mm
External dimensions: Width23 mm
External dimensions: Depth111.5 mm
Weight0.16 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-40...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases, flammable gases, less conductive dust
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass III
