NZ2GF12A4-16D Mitsubishi MELSEC network modules Remote I/O
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original NZ2GF12A4-16D (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC network modules – CC-Link IE Field |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the NZ2GF12A4-16D now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the NZ2GF12A4-16D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NZ2GF12A4-16D be shipped?
NZ2GF12A4-16D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NZ2GF12A4-16D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NZ2GF12A4-16D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GF12A4-16D, subject to availability and destination.

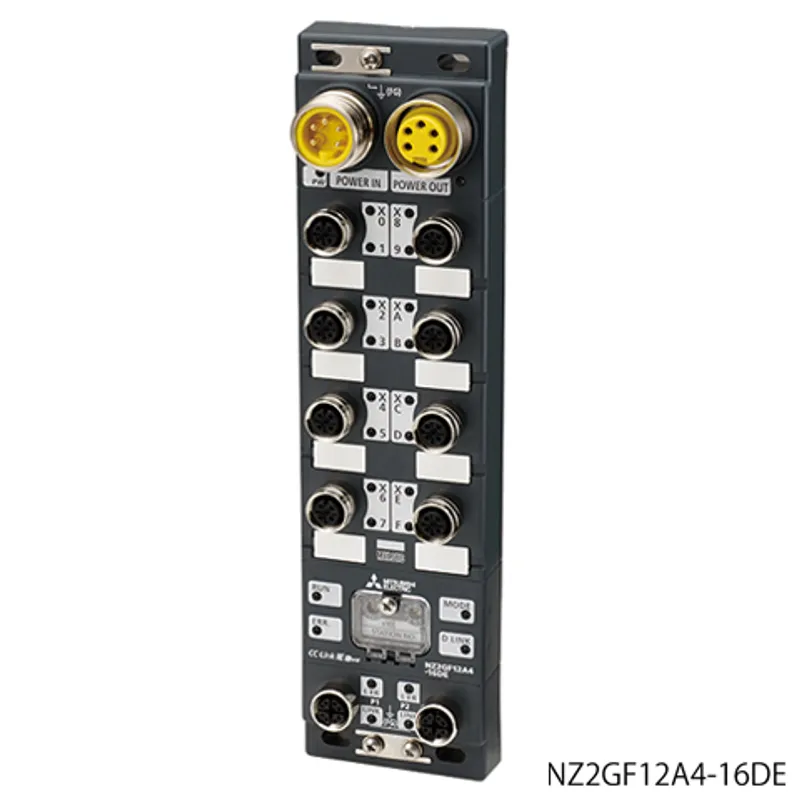

The Mitsubishi Electric NZ2GF12A4-16D is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC 7 mA, response time: 0/0.5/1/1.5/5/10/20/70 ms, 16 points/common, positive common type, 2...4-wire waterproof connector type, Powered by Molex. Mitsubishi Electric has discontinued it (2023/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC network modules |
| Category | Remote I/O |
| Type | I/O |
| Subtype | Input |
| Sales status | 2023/03 Discontinued (Mitsubishi Electric) |
| Outline | DC input: 16 points, 24 V DC 7 mA, response time: 0/0.5/1/1.5/5/10/20/70 ms, 16 points/common, positive common type, 2...4-wire waterproof connector type, Powered by Molex |
Input specifications
| Input type | DC input (positive common type) |
| Number of input points | 16 points |
| Rated input voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| Rated input current | 7.0 mA TYP. (24 V DC) |
| Maximum number of simultaneous input points | 100 % |
| ON voltage/ON current | 15 V or more/3.5 mA or more |
| OFF voltage/OFF current | 8 V or less/1.7 mA or less |
| Input resistance | 3.3 kΩ |
| Input response time: OFF to ON | 0 ms, 0.5 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms |
| Input response time: ON to OFF | 0 ms, 0.5 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms |
| Input common terminal arrangement | 16 points/common (2- to 4-wire, waterproof connector type) |
| Input isolation method | Non-isolation |
| Short-circuit detection current of sensor power supply | 400 mA or more/input connector |
Common specifications
| Dielectric withstand voltage | Between all DC external terminals and ground: 500 V AC for 1 minute |
| Insulation resistance | Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester |
| Protection degree | IP67 |
| Station type | Remote device station |
| Cyclic transmission: RX/RY points | 16 points |
| Cyclic transmission: RWr/RWw points | 12 points |
| Module power supply: Voltage | 24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC) |
| Module power supply: Current | 300 mA or less (at 24 V DC, all points ON) |
| External interface | Module power supply part: 7/8" waterproof connector, 5 pins, male (IN)/female (OUT) (sold separately) I/O part: M12 waterproof connector, 5 pins, female, A-code (sold separately) Communication part: M12 waterproof connector, 8 pins, female, X-code (sold separately) |
| Communication cable | An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable |
| External dimensions: Height | 235 mm |
| External dimensions: Width | 60 mm |
| External dimensions: Depth | 38.5 mm |
| Weight | 0.72 kg |
Specifications
| Operating ambient temperature | 0...55 ˚C |
| Storage ambient temperature | -25...75 ˚C |
| Operating ambient humidity | Compliant with IP67 |
| Storage ambient humidity | 5...95 %RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration | Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration | Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z) |
| Operating atmosphere | No corrosive gases |
| Operating altitude | 0...2000 m |
| Installation location | Inside/outside a control panel |
| Overvoltage category | II or less |
| Pollution degree | 2 or less |
| Equipment class | Class I |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| CC-Link IE Field Network Waterproof/Dustproof Remote I/O Module User's Manual (SH-081637ENG-E) | PDF · 7.01MB |
| Before Using the Product (BCN-P5999-0637E-B) | PDF · 0.20MB |
