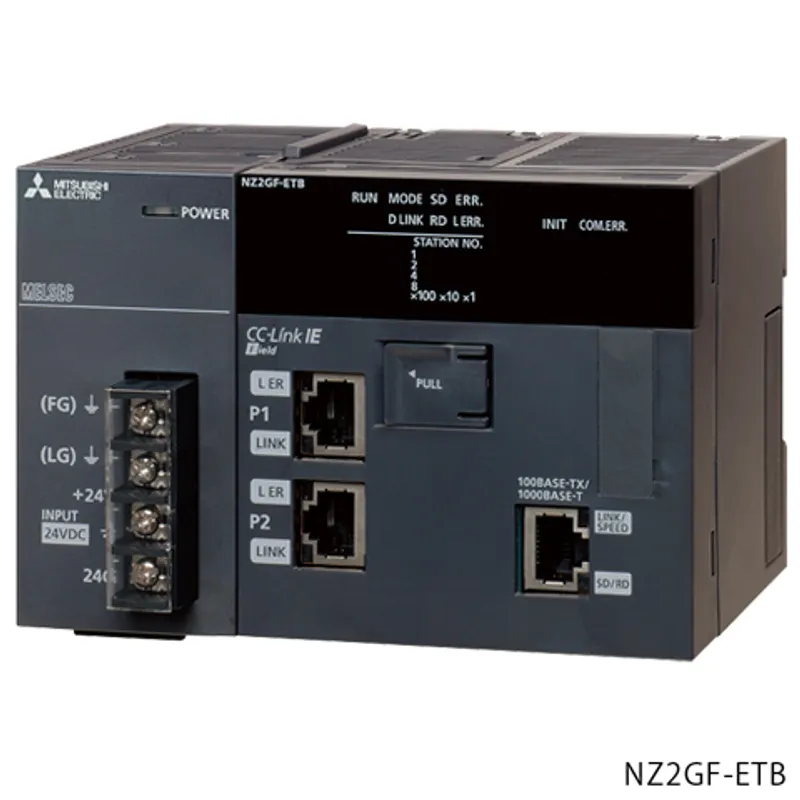

The Mitsubishi Electric NZ2GF-ETB is a adapter/bridge in the MELSEC network modules. CC-Link IE Field Network Ethernet Adapter Connects external devices on the Ethernet network to CC-Link IE Field Network. Mitsubishi Electric has discontinued it (2023/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Adapter/bridge
Type	Adapter
Subtype	Ethernet adapter
Sales status	2023/12 Discontinued (Mitsubishi Electric)
Outline	CC-Link IE Field Network Ethernet Adapter Connects external devices on the Ethernet network to CC-Link IE Field Network.

CC-Link IE Field Network specifications

Maximum number of link points per network: RWw	8192 points, 16K bytes
Maximum number of link points per network: RWr	8192 points, 16K bytes
Maximum number of link points per network: RX	16384 points, 2K bytes
Maximum number of link points per network: RY	16384 points, 2K bytes
Maximum number of link points per station: RWw	1024 points, 2K bytes
Maximum number of link points per station: RWr	1024 points, 2K bytes
Maximum number of link points per station: RX	2048 points, 256 bytes
Maximum number of link points per station: RY	2048 points, 256 bytes
Station number	1...120
Network number	1...239
Communication method	Token passing method
Communication speed	1 Gbps
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Communication cable	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP), straight cable
Maximum station-to-station distance	Up to 100 m (compliant with ANSI/TIA/EIA-568-B (category 5e))
Overall cable distance	Line topology: 12000 m (when 121 stations are connected) Star topology: Depends on the system configuration Ring topology: 12100 m (when 121 stations are connected)
Number of cascade connections	20 levels maximum

Ethernet specifications

Ethernet: Number of connections: For users	32
Ethernet: Number of connections: For auto-open	1
Ethernet: Number of connections: For MELSOFT connection	3 (TCP connection: 1, UDP connection: 1, Direct connection: 1)
Ethernet: Own station port number	1025 to 4999, 5011 to 65534 (0401H to 1387H, 1393H to FFFEH)
Ethernet: Number of simultaneously connectable modules	Up to 32
Ethernet: Communication speed	1 Gbps/100 Mbps
Ethernet: Communication mode	Full- or Half-duplex
Ethernet: Transmission method	Base band
Ethernet: Communication cable: For 1Gbps	An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher, (Double shielded/STP) Straight cable
Ethernet: Communication cable: For 100Mbps	An Ethernet cable that meets the 100BASE-TX standard: Category 5 or higher, (STP) Straight cable
Ethernet: Maximum distance between switching hub and node	Up to 100 m
Ethernet: Number of cascaded connections	Up to 20

Module specifications

No. of device points: Input (X)	8192 points (X0 to X1FFF are assigned to RX0 to RX1FFF.)
No. of device points: Output (Y)	8192 points (Y0 to Y1FFF are assigned to RY0 to RY1FFF.)
No. of device points: Link register (W)	8192 points (1024 points of W0 to W3FF are assigned to RWw0 to RWw3FF. 1024 points of W1000 to W13FF are assigned to RWr0 to Rwr3FF.)
No. of device points: Link special relay (SB)	8192 points (SB0...1FFF)
No. of device points: Link special register (SW)	8192 points (SW0...1FFF)
No. of device points: Special relay (SM)	2048 points (SM0...2047) (The number of device points is fixed.)
No. of device points: Special register (SD)	2048 points (SD0...2047) (The number of device points is fixed.)
Clock function	Year, month, date, hour, minute, and second (Automatic leap year detection)
Module power supply: Voltage	24 V DC (-35...+30 %)
Module power supply: Current	0.6 A
Module power supply: Inrush current	100 A, 1 ms or less
Module power supply: Allowable momentary power failure time	Within 10 ms
Withstand voltage	Between the input and LG batched terminal and the output and FG batched terminal, 510 V AC per minute (altitude 0...2000 m)
Insulation resistance	Input and LG batched, output and FG batched, batch input-LG, batch output-FG: 10 MΩ or higher by 500 VDC insulation resistance tester
Operation indication	LED (Normal: On (green), error: Off)
Fuse	Built-in (user-unchangeable)
External interface	Terminal block (M3.5 screw)
External dimensions: Height	90 mm
External dimensions: Width	135 mm
External dimensions: Depth	109 mm
Weight	0.70 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
