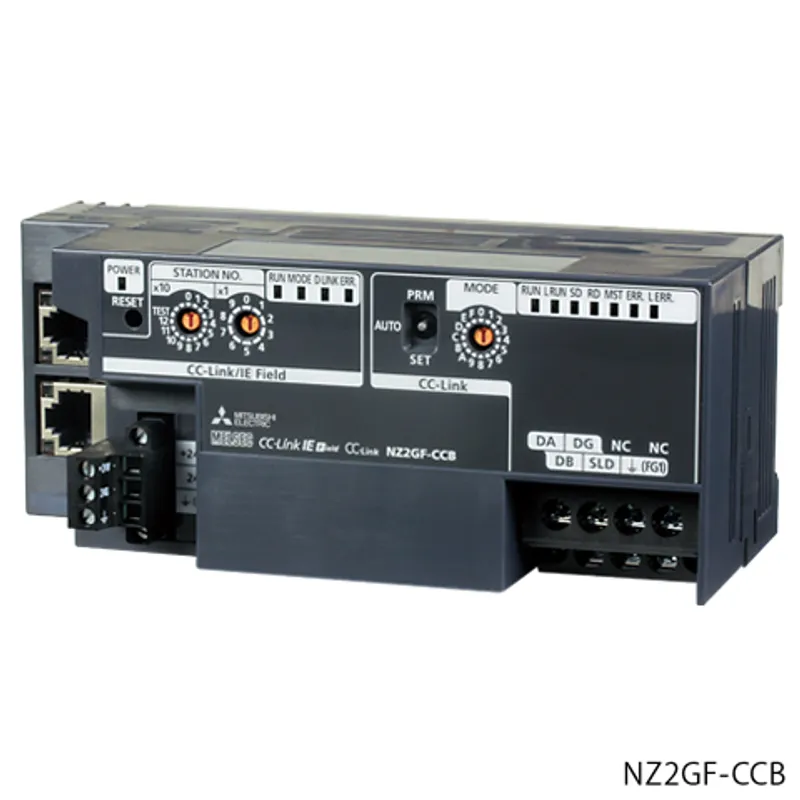

NZ2GF-CCB Mitsubishi MELSEC network modules Adapter/bridge

MPN: NZ2GF-CCB · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2GF-CCB be shipped?

NZ2GF-CCB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GF-CCB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GF-CCB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GF-CCB, subject to availability and destination.

The Mitsubishi Electric NZ2GF-CCB is a adapter/bridge in the MELSEC network modules. CC-Link IE Field Network-CC-Link bridge module, max. remote input: 2048 points, max. remote output: 2048 points. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Adapter/bridge
Type	Bridge
Subtype	CC-Link bridge
Outline	CC-Link IE Field Network-CC-Link bridge module, max. remote input: 2048 points, max. remote output: 2048 points

CC-Link IE Field Network specifications

Station type	Intelligent device station
Cyclic transmission: RX/RY points	Up to 2048 points
Cyclic transmission: RWr/RWw points	Up to 272 points

CC-Link specifications

Compatible CC-Link version	Ver.1.10
Maximum number of connected stations	64
Maximum number of link points per system: CC-Link Ver.1: Remote input (RX)	2048 points
Maximum number of link points per system: CC-Link Ver.1: Remote output (RY)	2048 points
Maximum number of link points per system: CC-Link Ver.1: Remote register (RWw)	256 points
Maximum number of link points per system: CC-Link Ver.1: Remote register (RWr)	256 points
Number of link points per station: CC-Link Ver.1: Remote input (RX)	32 points
Number of link points per station: CC-Link Ver.1: Remote output (RY)	32 points
Number of link points per station: CC-Link Ver.1: Remote register (RWw)	4 points
Number of link points per station: CC-Link Ver.1: Remote register (RWr)	4 points
Maximum number of occupied stations per remote station	4 stations (Ver. 1.10)
Transmission speed	156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps (selectable)
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 156 kbps	1200 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 625 kbps	900 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 2.5 Mbps	400 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 5 Mbps	160 m
Maximum overall cable distance (Maximum transmission distance): Ver. 1.10: 10 Mbps	100 m
Communication method	Broadcast polling method
Synchronization method	Frame synchronization method
Encoding method	NRZI method
Network topology	Bus (RS-485)
Transmission format	HDLC compliant
Error control system	CRC (X 16 + X 12 + X 5 + 1)
Communication cable	Ver.1.10 compatible CC-Link dedicated cable

Common specifications

Protection degree	IP2X
Module power supply: Voltage	24 V DC (20.4...28.8 V DC)
Module power supply: Current	0.29 A (at 24 V DC)
External interface	CC-Link IE Field network part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (M2.5 screw) CC-Link part: 7-point two-piece terminal block (M3 screw)
External dimensions: Height	69.5 mm
External dimensions: Width	160 mm
External dimensions: Depth	68 mm
Weight	0.38 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , 3 times each in 3 directions X, Y, Z)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
