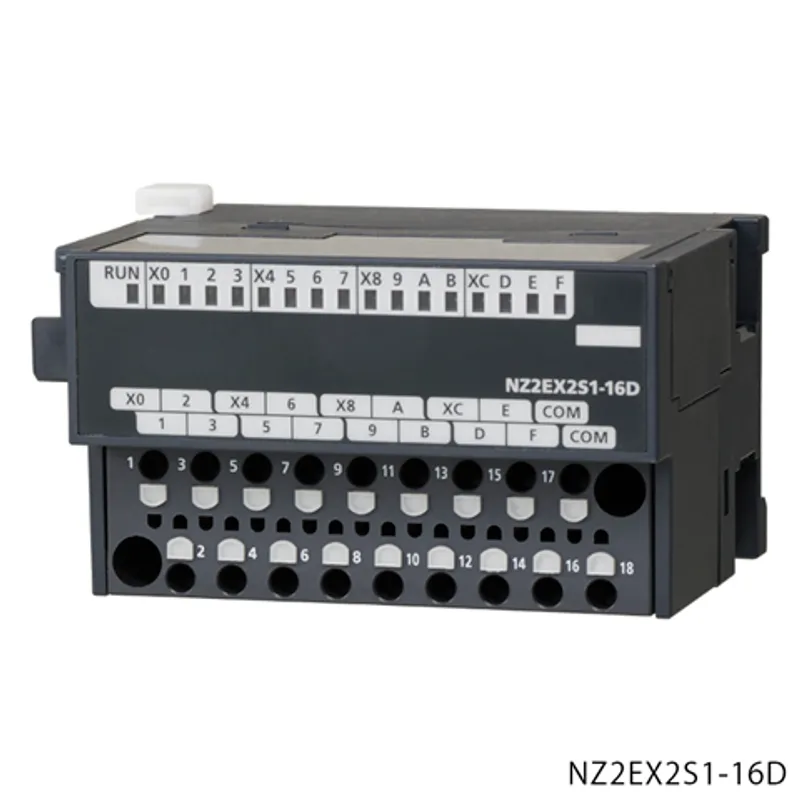

What is the Mitsubishi Electric NZ2EX2S1-16D?

The Mitsubishi Electric NZ2EX2S1-16D is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC 6 mA, response time: 0/0.2/1/1.5/5/10/20/70 ms, 16 points/common, positive/negative common shared type, 1-wire spring-clamp terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC network modules
CategoryRemote I/O
TypeI/O
SubtypeInput (extension)
OutlineDC input: 16 points, 24 V DC 6 mA, response time: 0/0.2/1/1.5/5/10/20/70 ms, 16 points/common, positive/negative common shared type, 1-wire spring-clamp terminal block type

Input specifications

Input typeDC input (positive/negative shared common type)
Number of input points16 points
Rated input voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current6.0 mA TYP. (24 V DC)
Maximum number of simultaneous input points100 %
ON voltage/ON current15 V or more/4 mA or more
OFF voltage/OFF current5 V or less/1.5 mA or less
Input resistance3.8 kΩ
Input response time: OFF to ON0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input response time: ON to OFF0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input common terminal arrangement16 points/common (1-wire, spring clamp terminal block type)
Input isolation methodPhotocoupler

Common specifications

Dielectric withstand voltageBetween all DC external terminals and ground: 510 V AC for 1 minute
Insulation resistanceBetween all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degreeIP2X
Cyclic transmission: RX/RY points16 points
Cyclic transmission: RWr/RWw points0 points
Module power supply: Voltage24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current20 mA or less (at 24 V DC, all points ON)
External interfaceI/O part: 18-point two-piece spring clamp terminal block
External dimensions: Height50 mm
External dimensions: Width84.5 mm
External dimensions: Depth68 mm
Weight0.19 kg

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-25...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass I
