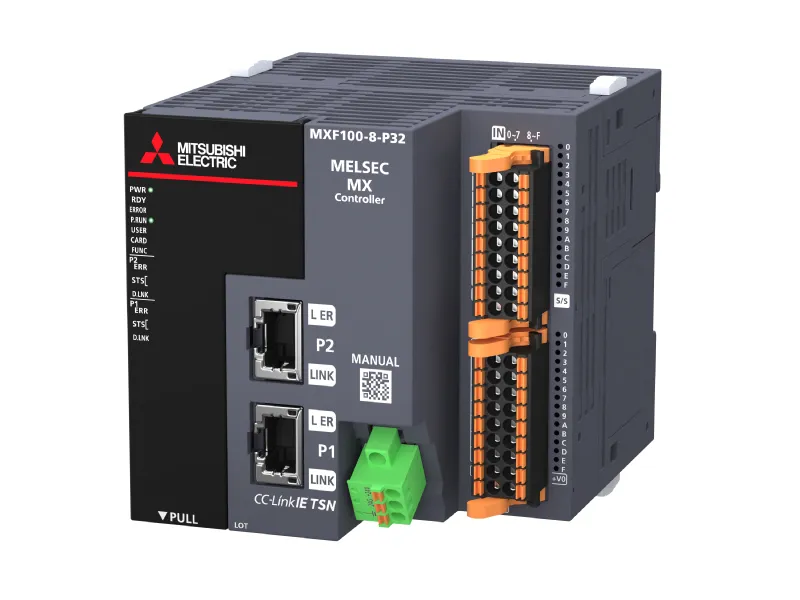

MXF100-8-P32 Mitsubishi MELSEC MX Controller

MPN: MXF100-8-P32 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC MX Controller – Controller
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can MXF100-8-P32 be shipped?

MXF100-8-P32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MXF100-8-P32 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MXF100-8-P32 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MXF100-8-P32, subject to availability and destination.

The Mitsubishi Electric MXF100-8-P32 is a controller in the MELSEC MX Controller. Program memory: 30 MB Maximum number of controllable axes: 8 axes Built-in CC-Link IE TSN Input: 16 points Output: 16 points transistor (source). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC MX Controller
Outline	Program memory: 30 MB Maximum number of controllable axes: 8 axes Built-in CC-Link IE TSN Input: 16 points Output: 16 points transistor (source)

Specifications

Operation control method	Repetitive operation of stored programs
I/O control mode	Refresh mode (The direct access input/output is available by specifying the direct access input/output (DX, DY).)
Programming language	• Ladder diagram (LD) • Structured text (ST) • Function block diagram (FBD/LD)
Extended programming language	• Function block (FB) • Label programming
Program execution type	Initial, scan, fixed scan, interrupt, and standby
Number of I/O points	512 points
Memory capacity: Program memory	30 MB
Memory capacity: Program cache memory	12 MB
Memory capacity: Device/label memory	8 MB
Memory capacity: Data memory	15 MB
Online change	Supported
Processing speed: Double-precision floating-point processing	2.50 ns…
Processing speed: Instruction processing time: LD instruction	1.25 ns…
Number of occupied I/O points	Not supported
Number of slots occupied by a module	Not supported

Peripheral connection port

USB port	USB 2.0 High Speed (Type-C) × 1
Ethernet port	One of the CC-Link IE TSN ports can be switched to the Ethernet port.
CC-Link IE TSN port	1000BASE-T/100BASE-TX × 2 One of the CC-Link IE TSN ports can be switched to the Ethernet port.

Memory interface

SD memory card

SD/SDHC memory card

Motion control specifications

Number of controllable axes: Real drive axis	8 axes
Motion operation cycle [μs]	250, 500, 1000, 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000, 6500, 7000, 7500, 8000
Servo amplifier connection	MR-J5-G, MR-J5W2-G, MR-J5W3-G, MR-J5D1-G4, MR-J5D2-G4, MR-J5D3-G4, CC-Link IE TSN-compatible drive, MR-JET
Absolute position control system	64 bit control/32 bit control
Positioning range	64 bit floating-point (LREAL type)
Interpolation function	Linear interpolation (4 axes maximum), 2-axis circular interpolation
Control method	PTP control, speed control, speed-position switching control (future support), speed control/torque control/continuous operation to torque control, pressure control (future support), multi-axis positioning data operation, position follow-up control, and motion cyclic instruction (position, velocity, and torque)
Operation cycles mixed	3 groups
System memory size	96 MB
Size of built-in ROM for user data	15 MB (Data memory is used.)
Axis	Real drive axis, virtual drive axis, real encoder axis, virtual encoder axis, and virtual linked axis
Axis: Axes group	0: Not set 1…: Setting axes group No.
Axis: Real drive axis	Servo amplifier
Axis: Real encoder axis	Via a servo amplifier
Compensation function	Driver unit conversion function and phase compensation function (future support)
Synchronous control: Instruction	Advanced synchronous control and cam operation start (MC_Camln)
Synchronous control: Module	Master axis, cam, gear, and clutch
Synchronous control: Master axis	Real drive axis, virtual drive axis, real encoder axis, virtual encoder axis, and virtual linked axis
Start/stop	Start, stop, restart, buffer mode, and forced stop
Home position return: Home position return method	Driver home position return method (use the home position return method set in the driver)
Positional control: Linear control	Linear interpolation (2…4 axes)
Positional control: 2-axis circular interpolation	Border point specification, center point specification, and radius specification
Manual control	JOG operation
Direct control: Speed control	Speed control not including position loop and speed control including position loop
Direct control: Torque control	Torque control and continuous operation to torque control
Absolute positioning system	Provided (batteryless)
Function to limit control: Velocity limit	Velocity set range
Function to limit control: Torque limit	Positive direction torque limit value, negative direction torque limit value
Function to limit control: Forced stop	Enabled/disabled switching
Function to limit control: Software stroke limit	Check the movable range at the set position and the machine feed value.
Function to limit control: Hardware stroke limit	Supported
Function to change control content: Set velocity change	Supported
Function to change control content: Current value change	Supported
Function to change control content: Acceleration/deceleration process change	Acceleration/deceleration and acceleration/deceleration time
Function to change control content: Torque limit value change	Supported
Function to change control content: Target position change	Target position change and movement distance change
Function to change control content: Override	Supported
Function: History data	Position data history
Function: Axis emulation	Supported
Function: Touch probe (mark detection)	Supported
Function: Monitoring of servo data	Cyclic transmission and transient transmission
Function: Servo system recorder	Not supported
Function: Digital cam switch	Supported

Operation profile data (cam) specifications

Number of registrations	60000 maximum (settable number from engineering tool: 1024)
Cam data: Type	Cam data and rotary knife
Cam data: Interpolation method	Specifying for each section, linear interpolation, and spline interpolation
Cam data: Profile ID	1…60000
Cam data: Resolution	8…65535 (optional)
Cam data: Unit of length per cycle setting	mm, inch, pulse, degree
Cam data: Unit of stroke amount	%, mm, inch, pulse, degree
Cam auto-generation	Cam auto-generation cam for rotary knife

Network (CC-Link IE TSN) specifications

Transmission speed	1 Gbps/100 Mbps
Maximum number of connectable stations per network	39 stations (manager station: 1, device station: 38)
Network topology	Line topology, star topology, coexistence of line and star topologies
Overall cable length: Line connection	3800 m (when 39 stations are connected)
Overall cable length: Others	Depends on the system configuration.
Maximum station-to-station distance	100 m
Maximum number of link points per network: RX/RY	16K points (16384 points, 2 KB) for each
Maximum number of link points per network: RWr/RWw	8K points (8192 points, 16 KB) for each
Maximum number of link points per station: RX/RY	Manager station: 8K points (8192 points, 1 KB) for each
Maximum number of link points per station: RWr/RWw	Manager station: 4K points (4096 points, 8 KB) for each
Connection cable	Ethernet cable (Category 5e or higher)
Communication method	Time sharing method
Transient transmission capacity	Maximum 1920 bytes

Power supply specifications

Rated voltage	24 V DC
Voltage fluctuation range	+20%, -15%
Allowable momentary power failure time	5 ms or less (at 24 V)
Power fuse	125 V, 3.15 A time-lag fuse
Inrush current	100 A, 0.06 ms or less 4.0 A, 350 ms or less
Power consumption	Controller alone: 13.6 W or less Maximum configuration for connection to the controller: 32.0 W or less (external 24 V DC power supply of extension devices is not included)
24 V DC built-in power supply capacity	500 mA
5 V DC built-in power supply capacity	720 mA

Specifications

Operating ambient temperature *1	0…55°C, non-freezing
Storage ambient temperature	-25…75°C, non-freezing
Operating ambient humidity	5…95% RH, non-condensing *2
Storage ambient humidity	5…95% RH, non-condensing
Vibration resistance 3 4: Installed on DIN rail: Frequency: 5…8.4 Hz	Half amplitude: 1.75 mm Number of sweeps: 10 times each in X, Y, and Z directions (total 80 minutes in each direction)
Vibration resistance 3 4: Installed on DIN rail: Frequency: 8.4…150 Hz	Constant acceleration: 4.9 m/s 2 Number of sweeps: 10 times each in X, Y, and Z directions (total 80 minutes in each direction)
Shock resistance *3	147 m/s 2 , Duration of action: 11 ms, 3 times each in X, Y, and Z bidirections by sine half-wave pulse
Noise immunity	By noise simulator at noise voltage of 1000 Vp-p, noise width of 1 μs and period of 30…100 Hz
Grounding	Grounding resistance of 100Ω or less (Common grounding with a heavy electrical system is not allowed) *5
Operating atmosphere	No corrosive gases and flammable gases, less conductive dust
Operating altitude *6	0…2000 m
Installation location	Inside a control panel *7
Overvoltage category *8	II or less
Pollution degree *9	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC MX Controller MX-F Model User's Manual (SH-082634ENG-E)	PDF · 47.42MB
MELSEC MX Controller MX-F Model Programming Manual (SH-082691ENG-E)	PDF · 16.80MB
