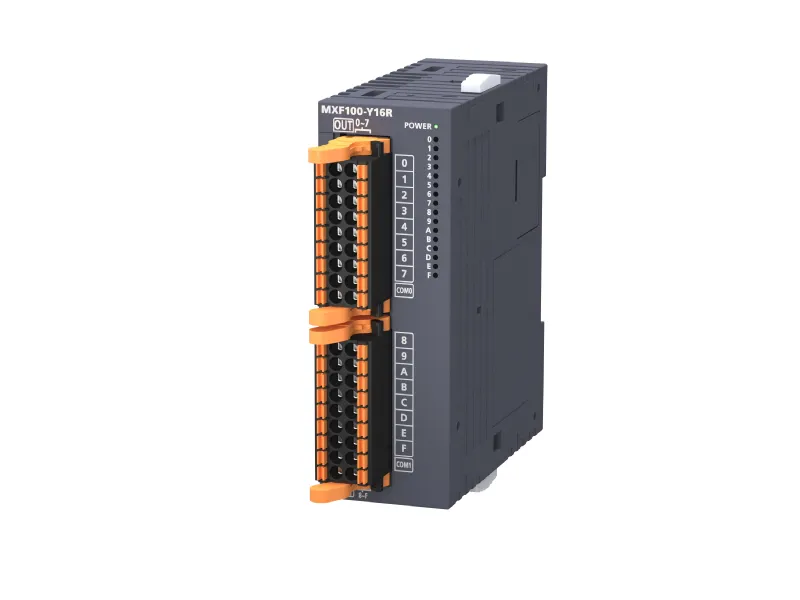

Mitsubishi Electric MXF100-Y16R
Mitsubishi MELSEC MX Controller I/O Module
- MPN
- MXF100-Y16R
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric MXF100-Y16R?
The Mitsubishi Electric MXF100-Y16R is a I/O Module in the MELSEC MX Controller. Output module Output 16 points/relay type Spring-clamp terminal block. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC MX Controller |
| Outline | Output module Output 16 points/relay type Spring-clamp terminal block |
Specifications
| Operating ambient temperature *1 | 0…55°C, non-freezing |
| Storage ambient temperature | -25…75°C, non-freezing |
| Operating ambient humidity | 5…95% RH, non-condensing *2 |
| Storage ambient humidity | 5…95% RH, non-condensing |
| Vibration resistance *3 *4: Installed on DIN rail: Frequency: 5…8.4 Hz | Half amplitude: 1.75 mm Number of sweeps: 10 times each in X, Y, and Z directions (total 80 minutes in each direction) |
| Vibration resistance *3 *4: Installed on DIN rail: Frequency: 8.4…150 Hz | Constant acceleration: 4.9 m/s 2 Number of sweeps: 10 times each in X, Y, and Z directions (total 80 minutes in each direction) |
| Shock resistance *3 | 147 m/s 2 , Duration of action: 11 ms, 3 times each in X, Y, and Z bidirections by sine half-wave pulse |
| Noise immunity | By noise simulator at noise voltage of 1000 Vp-p, noise width of 1 μs and period of 30…100 Hz |
| Grounding | Grounding resistance of 100Ω or less (Common grounding with a heavy electrical system is not allowed) *5 |
| Operating atmosphere | No corrosive gases and flammable gases, less conductive dust |
| Operating altitude *6 | 0…2000 m |
| Installation location | Inside a control panel *7 |
| Overvoltage category *8 | II or less |
| Pollution degree *9 | 2 or less |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
MXF100-Y16R: frequently asked questions
When can MXF100-Y16R be shipped?
MXF100-Y16R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MXF100-Y16R in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MXF100-Y16R and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MXF100-Y16R, subject to availability and destination.
