Mitsubishi MELSEC MX Controller – Controller Parts
Available on requestMXF100S-16-P32 Mitsubishi MELSEC MX ControllerMPN: MXF100S-16-P32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXF100S-8-P32 Mitsubishi MELSEC MX ControllerMPN: MXF100S-8-P32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXF100S-P32 Mitsubishi MELSEC MX ControllerMPN: MXF100S-P32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXF100S-16-N32 Mitsubishi MELSEC MX ControllerMPN: MXF100S-16-N32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXF100S-8-N32 Mitsubishi MELSEC MX ControllerMPN: MXF100S-8-N32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXF100S-N32 Mitsubishi MELSEC MX ControllerMPN: MXF100S-N32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXF100-16-N32-EC Mitsubishi MELSEC MX ControllerMPN: MXF100-16-N32-EC · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

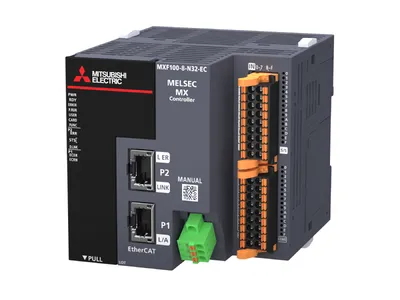

Available on requestMXF100-8-N32-EC Mitsubishi MELSEC MX ControllerMPN: MXF100-8-N32-EC · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXF100-16-P32 Mitsubishi MELSEC MX ControllerMPN: MXF100-16-P32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXF100-8-P32 Mitsubishi MELSEC MX ControllerMPN: MXF100-8-P32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

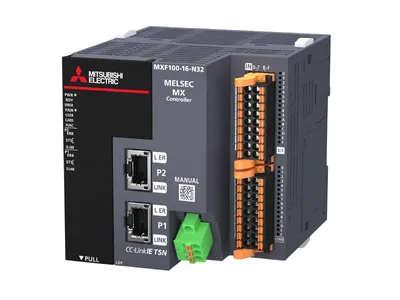

Available on requestMXF100-16-N32 Mitsubishi MELSEC MX ControllerMPN: MXF100-16-N32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXF100-8-N32 Mitsubishi MELSEC MX ControllerMPN: MXF100-8-N32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXR500-256 Mitsubishi MELSEC MX ControllerMPN: MXR500-256 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXR500-128 Mitsubishi MELSEC MX ControllerMPN: MXR500-128 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXR300-64 Mitsubishi MELSEC MX ControllerMPN: MXR300-64 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXR300-32 Mitsubishi MELSEC MX ControllerMPN: MXR300-32 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestMXR300-16 Mitsubishi MELSEC MX ControllerMPN: MXR300-16 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteCompare Mitsubishi MELSEC MX Controller – Controller
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Memory capacity: Program memory | Memory capacity: Program cache memory | Memory capacity: Device/label memory | Number of controllable axes: Real drive axis | Operating ambient humidity |
|---|---|---|---|---|---|
| MXF100S-16-P32 | • Standard: 30 MB • Safety: 6 MB | • Standard: 12 MB • Safety: 2 MB | • Standard: 8192 KB • Safety: 80 KB | 16 axes | 5…95% RH, non-condensing *5 |
| MXF100S-8-P32 | • Standard: 30 MB • Safety: 6 MB | • Standard: 12 MB • Safety: 2 MB | • Standard: 8192 KB • Safety: 80 KB | 8 axes | 5…95% RH, non-condensing *5 |
| MXF100S-P32 | • Standard: 30 MB • Safety: 6 MB | • Standard: 12 MB • Safety: 2 MB | • Standard: 8192 KB • Safety: 80 KB | 0 axes | 5…95% RH, non-condensing *5 |
| MXF100S-16-N32 | • Standard: 30 MB • Safety: 6 MB | • Standard: 12 MB • Safety: 2 MB | • Standard: 8192 KB • Safety: 80 KB | 16 axes | 5…95% RH, non-condensing *5 |
| MXF100S-8-N32 | • Standard: 30 MB • Safety: 6 MB | • Standard: 12 MB • Safety: 2 MB | • Standard: 8192 KB • Safety: 80 KB | 8 axes | 5…95% RH, non-condensing *5 |
| MXF100S-N32 | • Standard: 30 MB • Safety: 6 MB | • Standard: 12 MB • Safety: 2 MB | • Standard: 8192 KB • Safety: 80 KB | 0 axes | 5…95% RH, non-condensing *5 |
| MXF100-16-N32-EC | 30 MB | 12 MB | 8 MB | 16 axes | 5…95% RH, non-condensing *3 |
| MXF100-8-N32-EC | 30 MB | 12 MB | 8 MB | 8 axes | 5…95% RH, non-condensing *3 |
| MXF100-16-P32 | 30 MB | 12 MB | 8 MB | 16 axes | 5…95% RH, non-condensing *2 |
| MXF100-8-P32 | 30 MB | 12 MB | 8 MB | 8 axes | 5…95% RH, non-condensing *2 |
| MXF100-16-N32 | 30 MB | 12 MB | 8 MB | 16 axes | 5…95% RH, non-condensing *2 |
| MXF100-8-N32 | 30 MB | 12 MB | 8 MB | 8 axes | 5…95% RH, non-condensing *2 |
| MXR500-256 | 150 MB | 80 MB | 256 MB | 256 axes | 5…95% RH, non-condensing |
| MXR500-128 | 150 MB | 80 MB | 256 MB | 128 axes | 5…95% RH, non-condensing |
| MXR300-64 | 100 MB | 40 MB | 128 MB | 64 axes | 5…95% RH, non-condensing |
| MXR300-32 | 100 MB | 40 MB | 128 MB | 32 axes | 5…95% RH, non-condensing |
| MXR300-16 | 100 MB | 40 MB | 128 MB | 16 axes | 5…95% RH, non-condensing |
Common to all listed parts
| Series | MELSEC MX Controller |
| Operation control method | Repetitive operation of stored programs |
| Programming language | • Ladder diagram (LD) • Structured text (ST) • Function block diagram (FBD/LD) |
| Extended programming language | • Function block (FB) • Label programming |
| Program execution type | Initial, scan, fixed scan, interrupt, and standby |
| USB port | USB 2.0 High Speed (Type-C) × 1 |
| SD memory card | SD/SDHC memory card |
| Overall cable length: Others | Depends on the system configuration. |
