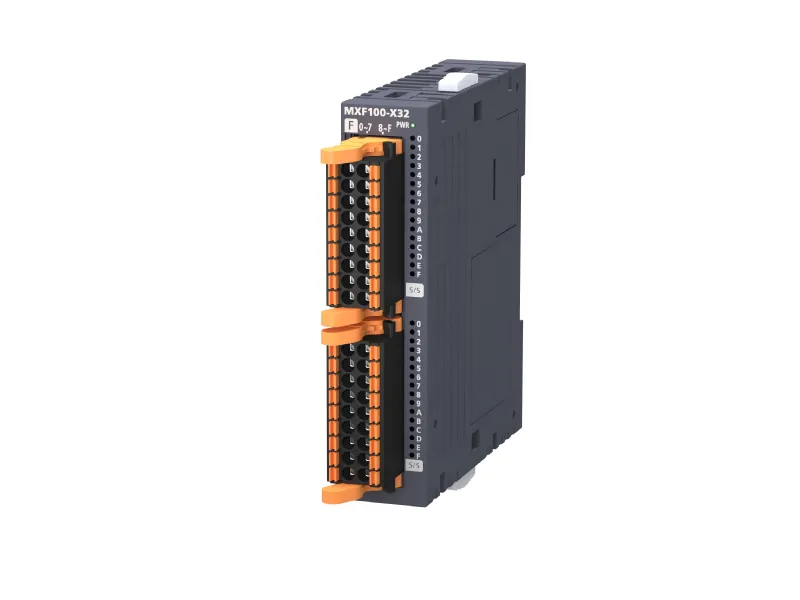

Mitsubishi Electric MXF100-X32

Mitsubishi MELSEC MX Controller I/O Module

MPN
MXF100-X32
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric MXF100-X32?

The Mitsubishi Electric MXF100-X32 is a I/O Module in the MELSEC MX Controller. Input module Input 32 points Spring-clamp terminal block. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC MX Controller
OutlineInput module Input 32 points Spring-clamp terminal block

Specifications

Operating ambient temperature *10…55°C, non-freezing
Storage ambient temperature-25…75°C, non-freezing
Operating ambient humidity5…95% RH, non-condensing *2
Storage ambient humidity5…95% RH, non-condensing
Vibration resistance *3 *4: Installed on DIN rail: Frequency: 5…8.4 HzHalf amplitude: 1.75 mm Number of sweeps: 10 times each in X, Y, and Z directions (total 80 minutes in each direction)
Vibration resistance *3 *4: Installed on DIN rail: Frequency: 8.4…150 HzConstant acceleration: 4.9 m/s 2 Number of sweeps: 10 times each in X, Y, and Z directions (total 80 minutes in each direction)
Shock resistance *3147 m/s 2 , Duration of action: 11 ms, 3 times each in X, Y, and Z bidirections by sine half-wave pulse
Noise immunityBy noise simulator at noise voltage of 1000 Vp-p, noise width of 1 μs and period of 30…100 Hz
GroundingGrounding resistance of 100Ω or less (Common grounding with a heavy electrical system is not allowed) *5
Operating atmosphereNo corrosive gases and flammable gases, less conductive dust
Operating altitude *60…2000 m
Installation locationInside a control panel *7
Overvoltage category *8II or less
Pollution degree *92 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MXF100-X32: frequently asked questions

When can MXF100-X32 be shipped?

MXF100-X32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MXF100-X32 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MXF100-X32 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MXF100-X32, subject to availability and destination.
