Home / Mitsubishi Electric (Factory Automation) / Mitsubishi MELIPC – MELIPC / MI3321G-W Mitsubishi MELIPC

Available on request

MI3321G-W Mitsubishi MELIPC

MPN: MI3321G-W · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELIPC – MELIPC
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can MI3321G-W be shipped?

MI3321G-W is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MI3321G-W in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MI3321G-W and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MI3321G-W, subject to availability and destination.

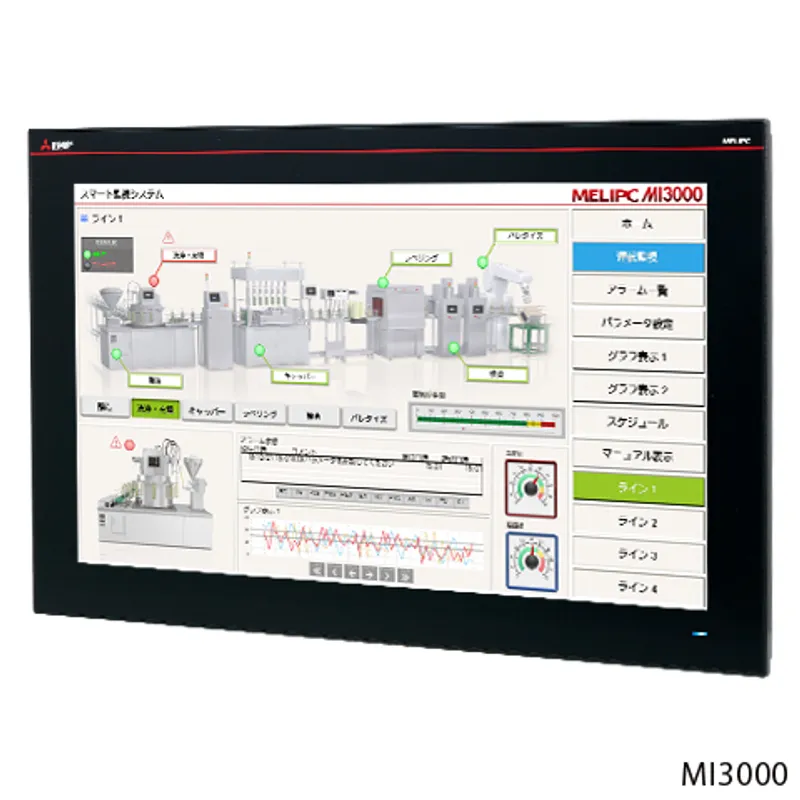

The Mitsubishi Electric MI3321G-W is a MELIPC in the MELIPC. Windows ® 10 IoT Enterprise 2021 LTSC (64 bit). Mitsubishi Electric has announced its discontinuation (2026/10 To be discontinued) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELIPC
Sales status	2026/10 To be discontinued (Mitsubishi Electric)
Outline	Windows ® 10 IoT Enterprise 2021 LTSC (64 bit)

Specifications

Series name	MI3000
Product name	MELIPC
Model	MI3321G-W
Hardware: MPU	Intel ® Core™ i3-6100U 2.30 GHz (Dual Core)
Hardware: Main memory	8 GB
Hardware: Internal storage capacity	64 GB
Hardware: Extended storage interface	M.2 (2280) SATA SSD x 1
Software: OS	Windows ® 10 IoT Enterprise 2021 LTSC (64 bit)
Software: Programming language	Language supporting above OS
Software: Format of dedicated APIs	–
Display interface: Interface	For external monitor output: DisplayPort 1.4 x 1
Display interface: Resolution *1	For external monitor output: Max. 3840 x 2160
Extended slot: PCI Express ®	x1 slot (half size) x 1
Extended slot: mini PCI Express ®	Full size x 2
Extended slot: PCI	–
RS-232: Number of channels	2 (RS-422/485 can also be used for one of the two channels *2 )
RS-232: Transmission rate	300...115200
RS-422: Number of channels	1 (RS-232/485 can also be used *2 )
RS-422: Transmission rate	300...115200
RS-485: Number of channels	1 (RS-232/422 can also be used *2 )
RS-485: Transmission rate	300...115200
USB: USB3.0	2
USB: USB2.0	2
Sound output (φ3.5 mini-jack (3-prong)): Interface	Audio Line-Out
Sound output (φ3.5 mini-jack (3-prong)): Number of ports	1
Power supply: Rated input voltage	24 V DC
Power supply: Input voltage variable range	19.2...28.8 V DC
Power supply: Input frequency	–
Power supply: Maximum input apparent power	–
External dimensions (H x W x D)	349.8 x 558.4 x 88.8 mm (13.77 x 21.98 x 3.50 inch)
Panel cutting dimensions (H x W)	341.8 x 550.3 mm (13.46 x 21.67 inch)
Weight	9.8 kg (21.6 lb)

Specifications

Display specifications: Display device 4 5	TFT color LCD
Display specifications: Screen size	21.5" widescreen
Display specifications: Resolution	Full HD: 1920 x 1080
Display specifications: Display colors	16.77 million
Display specifications: Backlight specification	LED backlight (not replaceable)
Display specifications: Life	50,000 hours
Touch panel: Type	PCAP (Projected Capacitive)
Touch panel: Simultaneous press	Max. 10 keys *6
Touch panel: Transmittance	90% ± 3%
Others: POWER LED	2 colors (blue and orange)
Others: Environmental protective structure	IP66 (front face)

Specifications

Ethernet: Interface	10BASE-T/100BASE-TX/1000BASE-T
Ethernet: Number of channels	3
CC-Link IE Field Network: Station type	–
CC-Link IE Field Network: Communications speed	–
CC-Link IE Field Network: Maximum number of connected stations	–
CC-Link IE Field Network: Number of ports	–
CC-Link IE Field Network: Communications cable	–
CC-Link IE Field Network: Network topology	–
CC-Link IE Field Network: Overall cable distance	–
CC-Link IE Field Network: Maximum distance between stations	–
CC-Link IE Field Network Basic: Station type	–
CC-Link IE Field Network Basic: Number of remote stations on 1 network	–
CC-Link IE Field Network Basic: Number of ports	–
CC-Link IE Field Network Basic: Network topology	–

Specifications

Operating ambient temperature	0...55°C
Storage ambient temperature	-20...60°C
Operating ambient humidity	10...90% RH, non-condensing
Storage ambient humidity	10...90% RH, non-condensing
Vibration resistance: Sine wave vibration	–
Vibration resistance: Random vibration	Compliant with IEC60068-2-64 5...500 Hz, one hour in direction X, Y, Z each 3 Grms
Shock resistance	Compliant with IEC-60068-2-27 10 G, half sine wave, 11 msec
Operating atmosphere	No corrosive gases, no flammable gases, no excessive conductive dust, no direct sunlight (as well as at storage)
Operating altitude 7 8	–
Installation location	Inside the control panel
Overvoltage category *9	≤ II
Pollution degree *10	≤ 2
