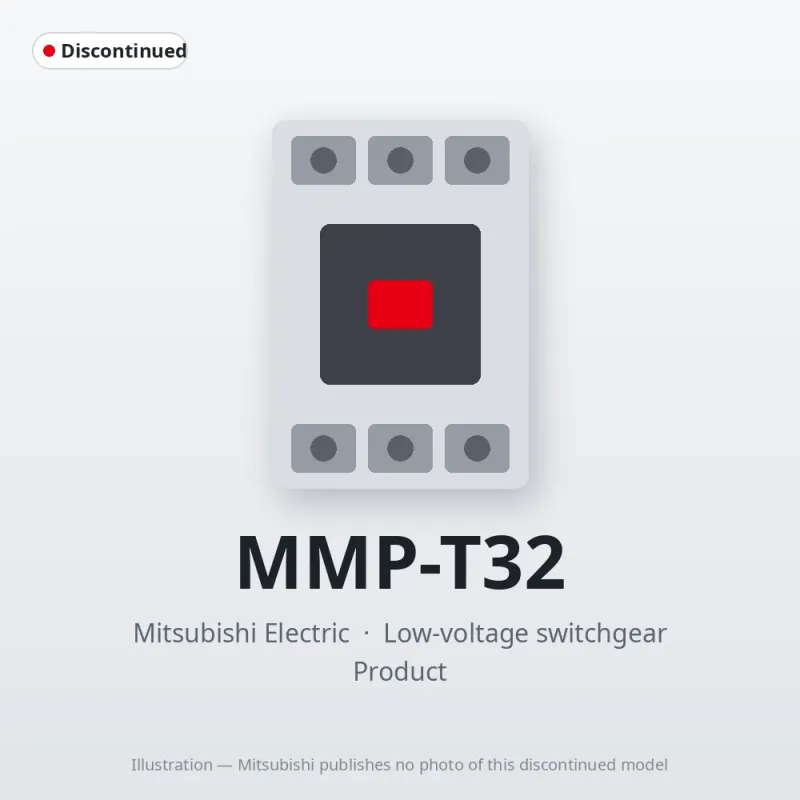

MMP-T32 Mitsubishi Low-voltage switchgear Motor Circuit Breaker

MPN: MMP-T32 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original MMP-T32 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi Low-voltage switchgear – Motor Circuit Breakers
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the MMP-T32 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the MMP-T32, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can MMP-T32 be shipped?

MMP-T32 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MMP-T32 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MMP-T32 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MMP-T32, subject to availability and destination.

The Mitsubishi Electric MMP-T32 is a motor Circuit Breaker in the Low-voltage switchgear. Motor Circuit Breakers Rated Current Setting Range: 0.1 to 32A Terminal Cover. Mitsubishi Electric has discontinued it (2025/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	Low-voltage switchgear
Sales status	2025/09 Discontinued (Mitsubishi Electric)
Outline	Motor Circuit Breakers Rated Current Setting Range: 0.1 to 32A Terminal Cover

Specifications

Product Specification	Motor Circuit Breakers
No. of Poles	3
Handle Shape	Tumbler Handle
Rated Current In [A]	0.1 to 32
Rated Operational Voltage Ue [V]	100 to 690
Rated Operating Frequency [Hz]	50/60
Rated Insulation Voltage Ui [V]	690
Rated Impulse Withstand Voltage [kV]	6
Rated Short Circuit Breaking Capacity [kA]: 200/240V: Icu	100
Rated Short Circuit Breaking Capacity [kA]: 200/240V: Ics	100
Rated Short Circuit Breaking Capacity [kA]: 400/415V: Icu	100(Heater Designation 0.16 to 13) 50(Heater Designation 18 to 32)
Rated Short Circuit Breaking Capacity [kA]: 400/415V: Ics	100(Heater Designation 0.16 to 13) 38(Heater Designation 18 to 32)
Rated Short Circuit Breaking Capacity [kA]: 440/460V: Icu	100(Heater Designation 0.16 to 6.3) 50(Heater Designation 8 to 13) 35(Heater Designation 18 to 32)
Rated Short Circuit Breaking Capacity [kA]: 440/460V: Ics	100(Heater Designation 0.16 to 6.3) 38(Heater Designation 8 to 13) 27(Heater Designation 18 to 32)
Rated Short Circuit Breaking Capacity [kA]: 500V: Icu	100(Heater Designation 0.16 to 6.3) 42(Heater Designation 8 to 13) 10(Heater Designation 18 to 32)
Rated Short Circuit Breaking Capacity [kA]: 500V: Ics	100(Heater Designation 0.16 to 6.3) 32(Heater Designation 8 to 13) 8(Heater Designation 18 to 32)
Rated Short Circuit Breaking Capacity [kA]: 600/690V: Icu	100(Heater Designation 0.16 to 1.6) 8(Heater Designation 2.5 to 4) 6(Heater Designation 6.3 to 13) 4(Heater Designation 18 to 32)
Rated Short Circuit Breaking Capacity [kA]: 600/690V: Ics	100(Heater Designation 0.16 to 1.6) 6(Heater Designation 2.5 to 4) 5(Heater Designation 6.3 to 13) 3(Heater Designation 18 to 32)
Category of Use: Selectivity Category	Cat.A
Category of Use: Utilization Category	AC-3
Tripping Class: JIS C8201-4-1、IEC60947-4-1	10
Instant Tripping Characteristics	13×Max.le
Mechanical Durability [Mil.Times]	10
Electrical Durability [Mil.Times]: Category AC-3	10
Functions: Open-Phase Protection	Yes
Functions: Tripping Display	Yes
Functions: Test Trip Function	Yes
Functions: Terminal Covers	Yes
Functions: Wiring Streamlining Terminal	No
Mounting Method	IEC rail
Terminal Screw Size: Main Circuit	M4
