MI5122-VW Mitsubishi MELIPC
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original MI5122-VW (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELIPC – MELIPC |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the MI5122-VW now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the MI5122-VW, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can MI5122-VW be shipped?
MI5122-VW is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MI5122-VW in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MI5122-VW and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MI5122-VW, subject to availability and destination.
The Mitsubishi Electric MI5122-VW is a MELIPC in the MELIPC. Windows ® : Windows ® 10 IoT Enterprise 2016 LTSB (64bit) VxWorks ® : VxWorks ® 7.0. Mitsubishi Electric has discontinued it (2026/04 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELIPC |
| Sales status | 2026/04 Discontinued (Mitsubishi Electric) |
| Outline | Windows ® : Windows ® 10 IoT Enterprise 2016 LTSB (64bit) VxWorks ® : VxWorks ® 7.0 |
Specifications
| Series name | MI5000 |
| Product name | MELIPC |
| Model | MI5122-VW |
| Hardware: MPU | Intel ® Core™ i7 |
| Hardware: Main memory | Windows ® : 12 GB VxWorks ® : 1 GB *1 |
| Hardware: Internal storage capacity | Windows ® : 45 GB VxWorks ® : 4 GB |
| Hardware: Extended storage interface | Windows ® : CFast card x 1 *2 VxWorks ® : – |
| Software: OS | Windows ® : Windows ® 10 IoT Enterprise 2016 LTSB (64bit) VxWorks ® : VxWorks ® 7.0 |
| Software: Programming language | Windows ® : Language supporting above OS VxWorks ® : C/C++ |
| Software: Format of dedicated APIs | Windows ® : Standard DLL VxWorks ® : C/C++ format |
| Display interface: Interface | Windows ® : DisplayPort x １ VxWorks ® : – |
| Display interface: Resolution | Windows ® : Maximum 3840 x 2160 *3 VxWorks ® : – |
| Extended slot: PCI Express ® | – |
| Extended slot: mini PCI Express ® | – |
| Extended slot: PCI | – |
| RS-232: Number of channels | 1 *4 |
| RS-232: Transmission rate | 9600...115200 bps |
| RS-422: Number of channels | – |
| RS-422: Transmission rate | – |
| RS-485: Number of channels | – |
| RS-485: Transmission rate | – |
| USB: USB3.0 | 2 |
| USB: USB2.0 | 2 |
| Sound output (φ3.5 mini-jack (3-prong)): Interface | – |
| Sound output (φ3.5 mini-jack (3-prong)): Number of ports | – |
| Power supply: Rated input voltage | 100...240 V AC |
| Power supply: Input voltage variable range | 85...264 V AC |
| Power supply: Input frequency | 47...63 Hz |
| Power supply: Maximum input apparent power | 139 VA |
| External dimensions (H x W x D) | 106 x 362 x 119 mm |
| Panel cutting dimensions (H x W) | – |
| Weight | 2.7 kg |
Specifications
| Display specifications: Display device | – |
| Display specifications: Screen size | – |
| Display specifications: Resolution | – |
| Display specifications: Display colors | – |
| Display specifications: Backlight specification | – |
| Display specifications: Life | – |
| Touch panel: Type | – |
| Touch panel: Simultaneous press | – |
| Touch panel: Transmittance | – |
| Others: POWER LED | – |
| Others: Environmental protective structure | – |
Specifications
| Ethernet: Interface | 10BASE-T/100BASE-TX/1000BASE-T |
| Ethernet: Number of channels | Windows ® : 1 (CH2) VxWorks ® : 1 (CH1) |
| CC-Link IE Field Network: Station type | Manager station and local station |
| CC-Link IE Field Network: Communications speed | 1 Gbps |
| CC-Link IE Field Network: Maximum number of connected stations | 120 (up to 120 device stations can be connected) |
| CC-Link IE Field Network: Number of ports | 1 |
| CC-Link IE Field Network: Communications cable | Ethernet cable that meets 1000BASE-T specifications (Category 5e or better, double-shielded, STP straight cable) |
| CC-Link IE Field Network: Network topology | Line type and star type *5 |
| CC-Link IE Field Network: Overall cable distance | Line type: 12,000 m (when 121 devices are connected) Star type: Depends on the system configuration |
| CC-Link IE Field Network: Maximum distance between stations | 100 m (Compliant with ANSI/TIA/EIA-568-B (Category 5e)) |
| CC-Link IE Field Network Basic: Station type | Manager station |
| CC-Link IE Field Network Basic: Number of remote stations on 1 network | 64 units (16 units x 4 groups) *6 |
| CC-Link IE Field Network Basic: Number of ports | 1 |
| CC-Link IE Field Network Basic: Network topology | Star type |
Specifications
| Operating ambient temperature | 0...55°C |
| Storage ambient temperature *7 | -25...75°C |
| Operating ambient humidity | 5...95%RH, non-condensing |
| Storage ambient humidity *7 | 5...95%RH, non-condensing |
| Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2 | ・Under intermittent vibration Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions ・Under continuous vibration Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2 |
| Shock resistance | Compliant with JIS B 3502 and IEC 61131-2 (147 m/ｓ 2 , 3 times each in X, Y, and Z bidirections) |
| Operating atmosphere | No corrosive gases, flammable gases, less conductive dust |
| Operating altitude *8 *9 | 0...2000 m |
| Installation location | Inside a control panel *10 |
| Overvoltage category *11 | Ⅱ or less |
| Pollution degree *12 | 2 or less |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
More Mitsubishi Electric (Factory Automation) parts

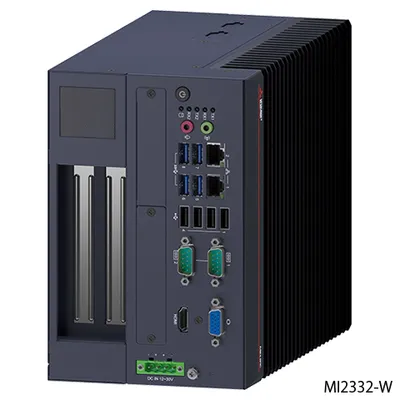

Available on requestMI2332-W Mitsubishi MELIPC
