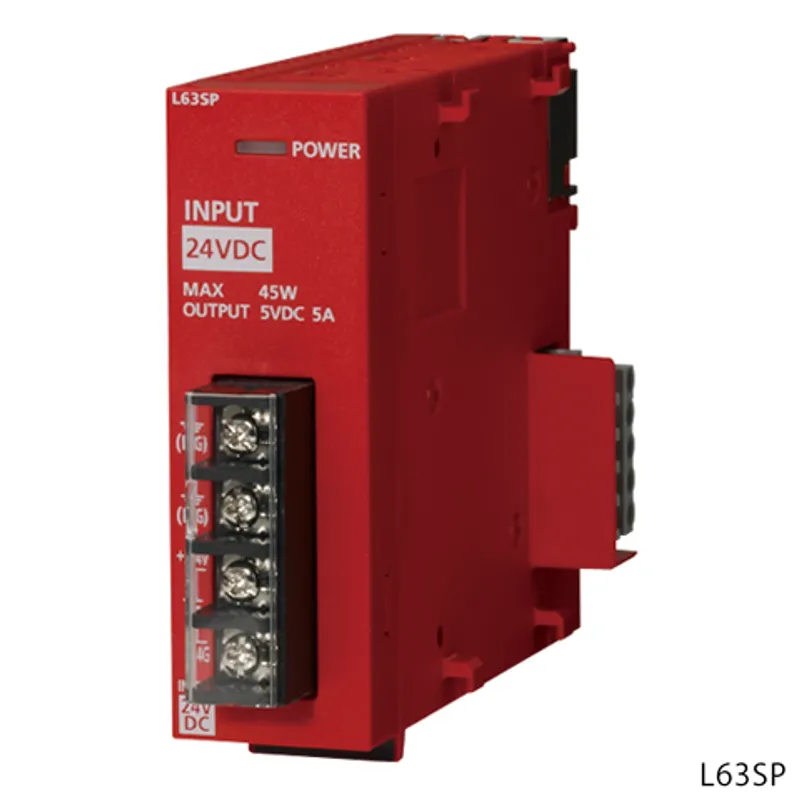

Mitsubishi Electric L63SP

Mitsubishi MELSEC-L Series Slim type

MPN
L63SP
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original L63SP (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric L63SP?

The Mitsubishi Electric L63SP is a slim type in the MELSEC-L Series. Input: 24 V DC, output: 5 V DC 5 A, no isolation between the primary side 24 V DC and secondary side 5 V DC. Mitsubishi Electric has discontinued it (2024/04 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategorySlim type
TypeDC input
Subtype24 V DC input
Sales status2024/04 Discontinued (Mitsubishi Electric)
OutlineInput: 24 V DC, output: 5 V DC 5 A, no isolation between the primary side 24 V DC and secondary side 5 V DC

Specifications

Input power supply voltage24 V DC (-35 %...+30 %)
Maximum input power45 W
Inrush current100 A, within 1 ms (at 24 V DC input)
Rated output current: 5 V DC5 A
Overcurrent protection: 5 V DC5.5 A or more
Overvoltage protection: 5 V DC5.5...6.5 V
Efficiency70 % or more
Allowable momentary power failure timeWithin 10 ms (at 24 V DC input)
Withstand voltage―
Insulation resistance―
Operation indicationLED (Normal: On (green), error: Off)
FuseBuilt-in (user-unchangeable)
External interfaceTerminal block (M3.5 screw)
External dimensions: Height90 mm
External dimensions: Width29 mm
External dimensions: Depth95 mm
Weight0.19 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

L63SP: frequently asked questions

Can I still buy the L63SP now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the L63SP, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can L63SP be shipped?

L63SP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L63SP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L63SP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L63SP, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric L60TCTT4 – Mitsubishi MELSEC-L Series Temperature control
Mitsubishi Electric
L60TCTT4

Mitsubishi MELSEC-L Series Temperature control

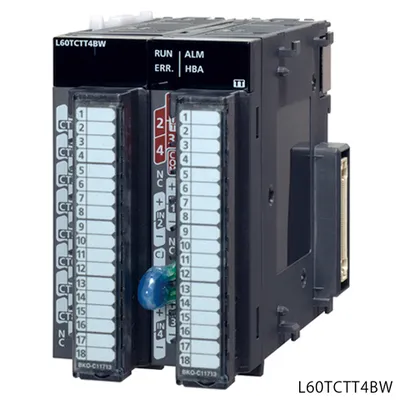

Mitsubishi Electric L60TCTT4BW – Mitsubishi MELSEC-L Series Temperature control
Mitsubishi Electric
L60TCTT4BW

Mitsubishi MELSEC-L Series Temperature control

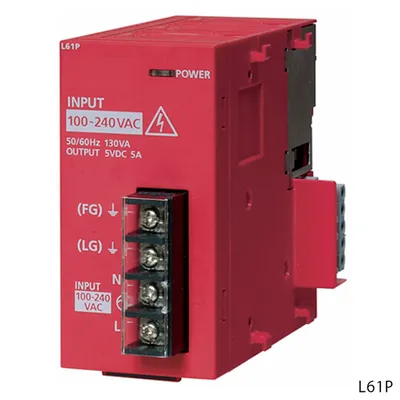

Mitsubishi Electric L61P – Mitsubishi MELSEC-L Series Standard type
Mitsubishi Electric
L61P

Mitsubishi MELSEC-L Series Standard type

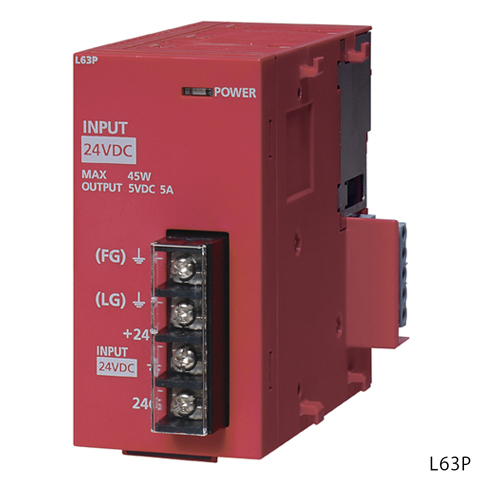

Mitsubishi Electric L63P – Mitsubishi MELSEC-L Series Standard type
