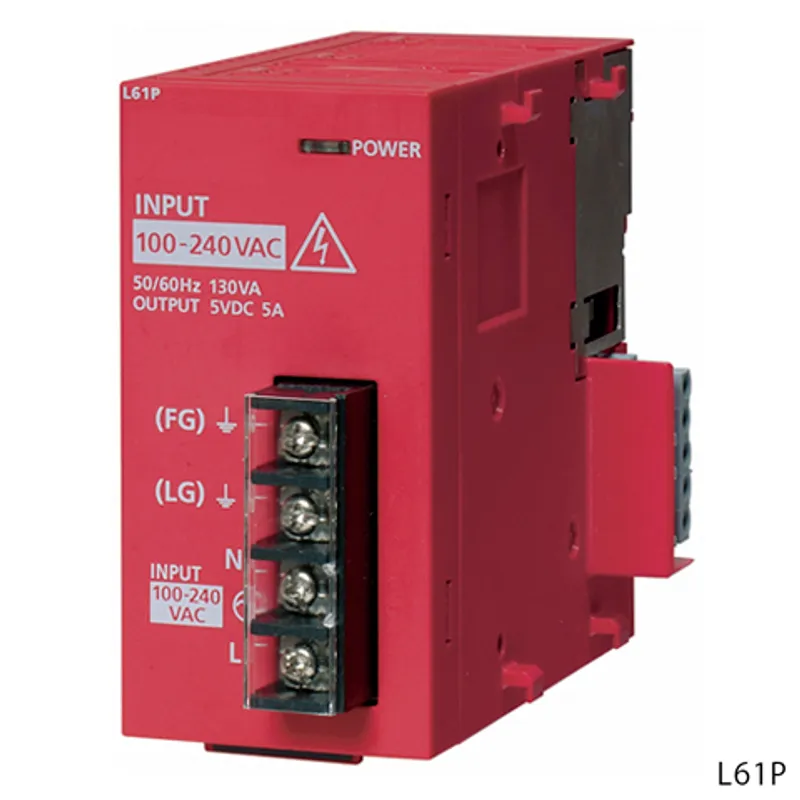

Mitsubishi Electric L61P

Mitsubishi MELSEC-L Series Standard type

MPN
L61P
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric L61P?

The Mitsubishi Electric L61P is a standard type in the MELSEC-L Series. Input: 100...240 V AC, output: 5 V DC 5 A. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryStandard type
TypeAC input
Subtype100...240 V AC input
Sales status2027/09 To be end of order (Mitsubishi Electric)
OutlineInput: 100...240 V AC, output: 5 V DC 5 A

Specifications

Input power supply voltage100...240 V AC (-15 %...+10 %)
Input frequency50/60 Hz ±5 %
Input voltage distortionWithin 5 %
Maximum input apparent power130 VA
Inrush current20 A, within 8 ms
Rated output current: 5 V DC5 A
Overcurrent protection: 5 V DC5.5 A or more
Overvoltage protection: 5 V DC5.5...6.5 V
Efficiency70 % or more
Allowable momentary power failure timeWithin 10 ms
Withstand voltageBetween the input and LG batched terminal and the output and FG batched terminal, 2300 V AC per minute (altitude 0...2000 m)
Insulation resistanceInput and LG batched, output and FG batched, batch input-LG, batch output-FG: 10 MΩ or higher by 500 VDC insulation resistance tester
Operation indicationLED (Normal: On (green), error: Off)
FuseBuilt-in (user-unchangeable)
External interfaceTerminal block (M3.5 screw)
External dimensions: Height90 mm
External dimensions: Width45 mm
External dimensions: Depth95 mm
Weight0.32 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

L61P: frequently asked questions

When can L61P be shipped?

L61P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L61P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L61P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L61P, subject to availability and destination.
