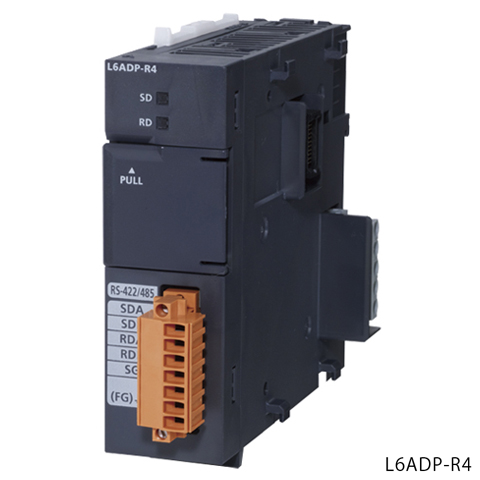

Mitsubishi Electric L6ADP-R4

Mitsubishi MELSEC-L Series Option

MPN
L6ADP-R4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric L6ADP-R4?

The Mitsubishi Electric L6ADP-R4 is a option in the MELSEC-L Series. Connector for peripherals supporting RS-422/485. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryOption
TypeRS-422/485 adapter
Sales status2027/09 To be end of order (Mitsubishi Electric)
OutlineConnector for peripherals supporting RS-422/485

Specifications

Maximum transmission speed115.2 kbps
Communication method: Predefined protocol communicationFull-duplex/half-duplex communications
Communication method: MC protocol communicationHalf-duplex communications
Synchronization methodStart-stop synchronization method
Communication speed1200 bps/2400 bps/4800 bps/9600 bps/19200 bps/38400 bps/57600 bps/115200 bps
Transmission distanceMaximum 1200 m (overall distance)
Data format: Start bits1
Data format: Data bits7/8
Data format: Parity bitsPresent or absent
Data format: Stop bits1/2
Access cycle: Predefined protocol communicationSends or receives data when requested with the dedicated instruction.
Access cycle: MC protocol communicationConform to the service processing setting of the CPU module.
Error detection: Parity checkYes (odd/even) / No
Error detection: Sum check codeYes/No
Transmission control• DC1/DC3 (Xon/Xoff) control • DC2/DC4 control
Internal current consumption (5 V DC)0.15 A
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth95 mm
Weight0.12 kg

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

L6ADP-R4: frequently asked questions

When can L6ADP-R4 be shipped?

L6ADP-R4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L6ADP-R4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L6ADP-R4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L6ADP-R4, subject to availability and destination.
