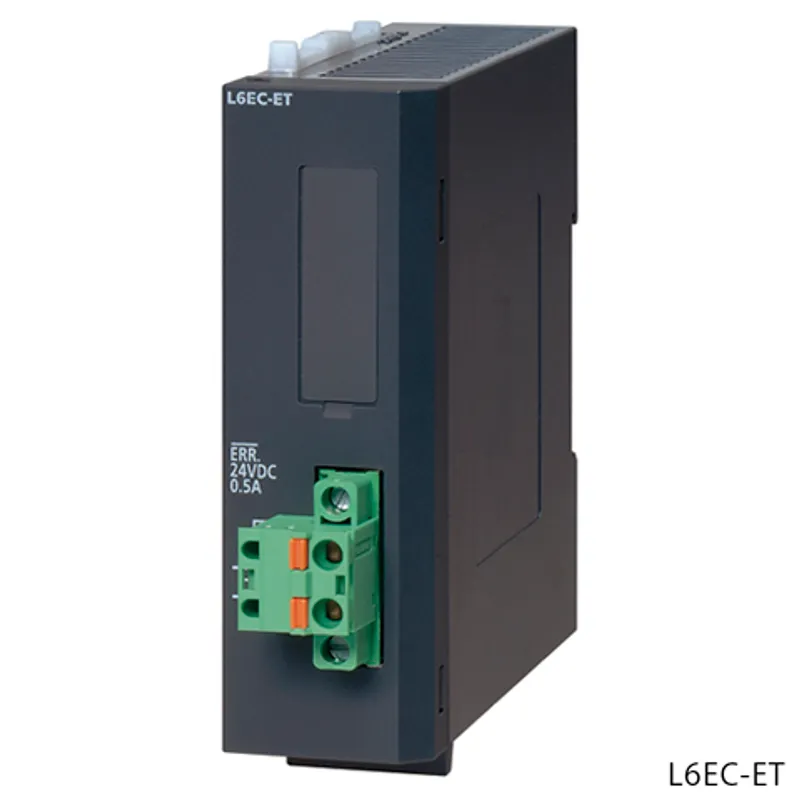

What is the Mitsubishi Electric L6EC-ET?

The Mitsubishi Electric L6EC-ET is a option in the MELSEC-L Series. END cover with ERR terminal. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryOption
TypeEND cover with error terminal
Sales status2027/09 To be end of order (Mitsubishi Electric)
OutlineEND cover with ERR terminal

Specifications

ERR. terminal: Rated switching voltage/current24 V DC, 0.5 A
ERR. terminal: Minimum switching load5 V DC, 1 mA
ERR. terminal: Response time: OFF to ON10 ms or less
ERR. terminal: Response time: ON to OFF12 ms or less
ERR. terminal: Life: Mechanical20 million times or more
ERR. terminal: Life: ElectricalRated switching voltage/current load: More than 100 thousand times
ERR. terminal: Surge suppressorNone
ERR. terminal: FuseNone
External interfaceSpring clamp terminal block
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth95 mm
Internal current consumption (5 V DC)0.060 A
Weight0.11 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

L6EC-ET: frequently asked questions

When can L6EC-ET be shipped?

L6EC-ET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L6EC-ET in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L6EC-ET and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L6EC-ET, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

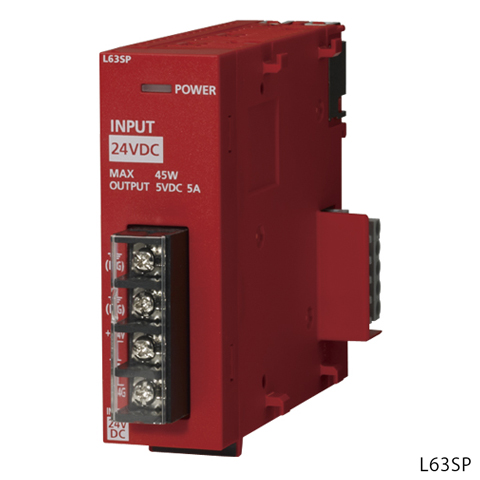

Mitsubishi Electric L63SP – Mitsubishi MELSEC-L Series Slim type
Mitsubishi Electric
L63SP

Mitsubishi MELSEC-L Series Slim type

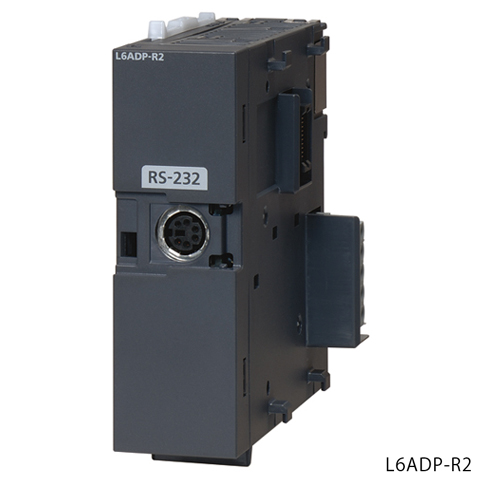

Mitsubishi Electric L6ADP-R2 – Mitsubishi MELSEC-L Series Option
Mitsubishi Electric
L6ADP-R2

Mitsubishi MELSEC-L Series Option

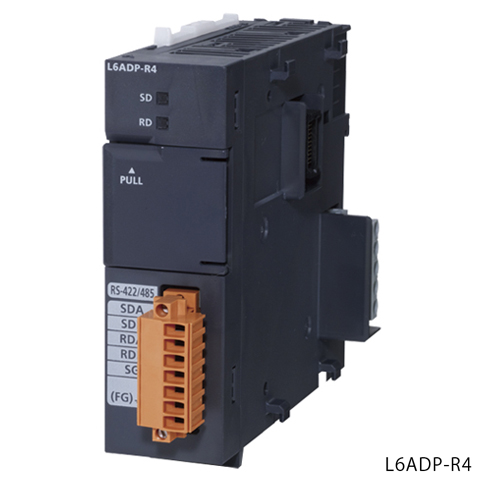

Mitsubishi Electric L6ADP-R4 – Mitsubishi MELSEC-L Series Option
