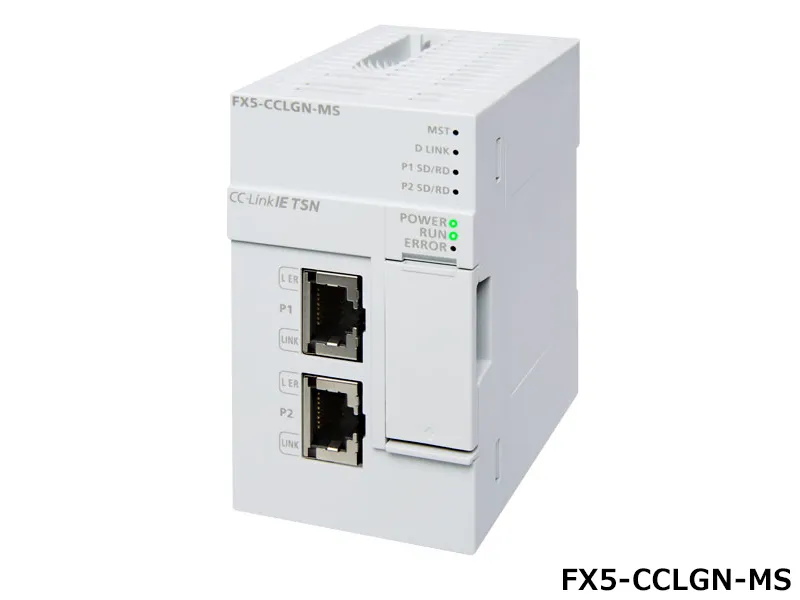

Mitsubishi Electric FX5-CCLGN-MS

Mitsubishi MELSEC iQ-F Series Network/communication module

MPN
FX5-CCLGN-MS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-CCLGN-MS?

The Mitsubishi Electric FX5-CCLGN-MS is a network/communication module in the MELSEC iQ-F Series. Master/local module for CC-Link IE TSN. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
OutlineMaster/local module for CC-Link IE TSN

Specifications

Applicable ControllerMX Controller MX-F model *1
Applicable CPU moduleFX5UJ CPU module: Ver. 1.040 or later FX5U CPU module: Ver. 1.210 or later FX5UC CPU module*: Ver. 1.210 or later * FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Applicable engineering tool: GX Works3FX5UJ CPU module: Ver. 1.090U or later FX5U CPU module: Ver. 1.065T or later FX5UC CPU module: Ver. 1.065T or later
Number of occupied I/O points8 points
Mass (weight)Approx. 0.3 kg
Communication methodTime sharing method
Communication speed・1 Gbps ・100Mbps* * This setting can be used for the firmware version "1.010" or later.
Network topologyLine topology, star topology (Coexistence of line topology and star topology is also possible.)
Station typeManager or local station
Station number・Manager station: 0 ・Local station: 1 to 120
Number of connectable modulesOne module can be connected to the CPU module for each station type. ・Manager station: 1 ・Local station: 1
Maximum number of connectable stations: When used as a manager station61
Maximum number of connectable stations: When used as a local station121
Station-based data assurance: When used as a manager station61
Station-based data assurance: When used as a local station121
Maximum number of link points per network: RX16 K points (16384 points, 2 K bytes)
Maximum number of link points per network: RY16 K points (16384 points, 2 K bytes)
Maximum number of link points per network: RWr8 K points (8192 points, 16 K bytes)
Maximum number of link points per network: RWw8 K points (8192 points, 16 K bytes)
Maximum number of link points per station: Manager station: RX8 K points (8192 points, 1 K bytes) The maximum number of points for all link devices may not be used simultaneously depending on the number of device stations, or the number of points and assignments of the link devices that are set in the "Network Configuration Settings" of the "Basic Settings".
Maximum number of link points per station: Manager station: RY8 K points (8192 points, 1 K bytes) The maximum number of points for all link devices may not be used simultaneously depending on the number of device stations, or the number of points and assignments of the link devices that are set in the "Network Configuration Settings" of the "Basic Settings".
Maximum number of link points per station: Manager station: RWr4 K points (4096 points, 8 K bytes) The maximum number of points for all link devices may not be used simultaneously depending on the number of device stations, or the number of points and assignments of the link devices that are set in the "Network Configuration Settings" of the "Basic Settings".
Maximum number of link points per station: Manager station: RWw4 K points (4096 points, 8 K bytes) The maximum number of points for all link devices may not be used simultaneously depending on the number of device stations, or the number of points and assignments of the link devices that are set in the "Network Configuration Settings" of the "Basic Settings".
Maximum number of link points per station: Local station: RX16 K points (16384 points, 2 K bytes) The maximum number of points for all link devices may not be used simultaneously depending on the number of device stations, or the number of points and assignments of the link devices that are set in the "Network Configuration Settings" of the "Basic Settings".
Maximum number of link points per station: Local station: RY16 K points (16384 points, 2 K bytes) The maximum number of points for all link devices may not be used simultaneously depending on the number of device stations, or the number of points and assignments of the link devices that are set in the "Network Configuration Settings" of the "Basic Settings".
Maximum number of link points per station: Local station: RWr8 K points (8192 points, 16 K bytes) The maximum number of points for all link devices may not be used simultaneously depending on the number of device stations, or the number of points and assignments of the link devices that are set in the "Network Configuration Settings" of the "Basic Settings".
Maximum number of link points per station: Local station: RWw8 K points (8192 points, 16 K bytes) The maximum number of points for all link devices may not be used simultaneously depending on the number of device stations, or the number of points and assignments of the link devices that are set in the "Network Configuration Settings" of the "Basic Settings".
Minimum synchronization cycle250.00 μs
Connection cableEthernet cable which satisfies standard: Category 5e or higher, straight cable (double shielded, STP)
Overall cable distance: Line topology12000 m (when 121 stations are connected)
Overall cable distance: OthersDepends on the system configuration.
Maximum station-to-station distance100 m
CC-Link IE TSN ClassB
Network number setting range1 to 239
Transient transmission capacity1920 bytes
CC-Link IE TSN Protocol version・2.0* ・1.0 * This setting can be used for the firmware version "1.010" or later.

Ethernet performance specifications

Data transmission speed・1Gbps ・100Mbps* * This setting can be used for the firmware version "1.010" or later.
Communication mode: 1000BASE-TFull-duplex
Communication mode: 100BASE-TXFull-duplex* * This setting can be used for the firmware version "1.010" or later.
InterfaceRJ45 connector (Auto MDI/MDI-X)
Maximum frame size1518 bytes
Maximum segment length100 m* * For maximum segment length (length between switching hubs), consult the manufacturer of the switching hub used.
Number of cascade connectionsConsult the manufacturer of the switching hub used.
IP versionIPv4
Number of simultaneous open connections (maximum number of connections): Connection with MELSOFT products8 connections* * In the case of one connection per device, up to eight devices can be connected.
Number of simultaneous open connections (maximum number of connections): Connection to SLMP-compatible devices8 connections* * In the case of one connection per device, up to eight devices can be connected.

Power supply specifications

External power supply: Power supply voltage24 V DC +20%, -15%
External power supply: Allowable instantaneous power failure timeOperation continues for an instantaneous power failure of 1ms or less.
External power supply: Current consumption220 mA

The general specifications other than below are the same as those for the CPU module.

Operating ambient temperatureOperating ambient temperature -20 to 55℃* * When using the FX5-CCLGN-MS manufactured in December 2020 or earlier, the operating ambient temperature is -20 to 50℃.
Dielectric withstand voltage: Between all external terminals and ground terminal of CPU module500 V AC for one minute
Insulation resistance: Between all external terminals and ground terminal of CPU module10 MΩ or higher by 500 V DC insulation resistance tester
